White X-17 - Machine Maintenance; Cleaning and Oiling Shuttle Components; Lubricating Machine Oil Points; Cleaning the Feed Dog

A
Cleaning shuttle
race
(A)
Latch
knob
(B)
Shuttle race
cover
(C)
Shuttle hook
C
Open face cover
and oil
points
md icated,

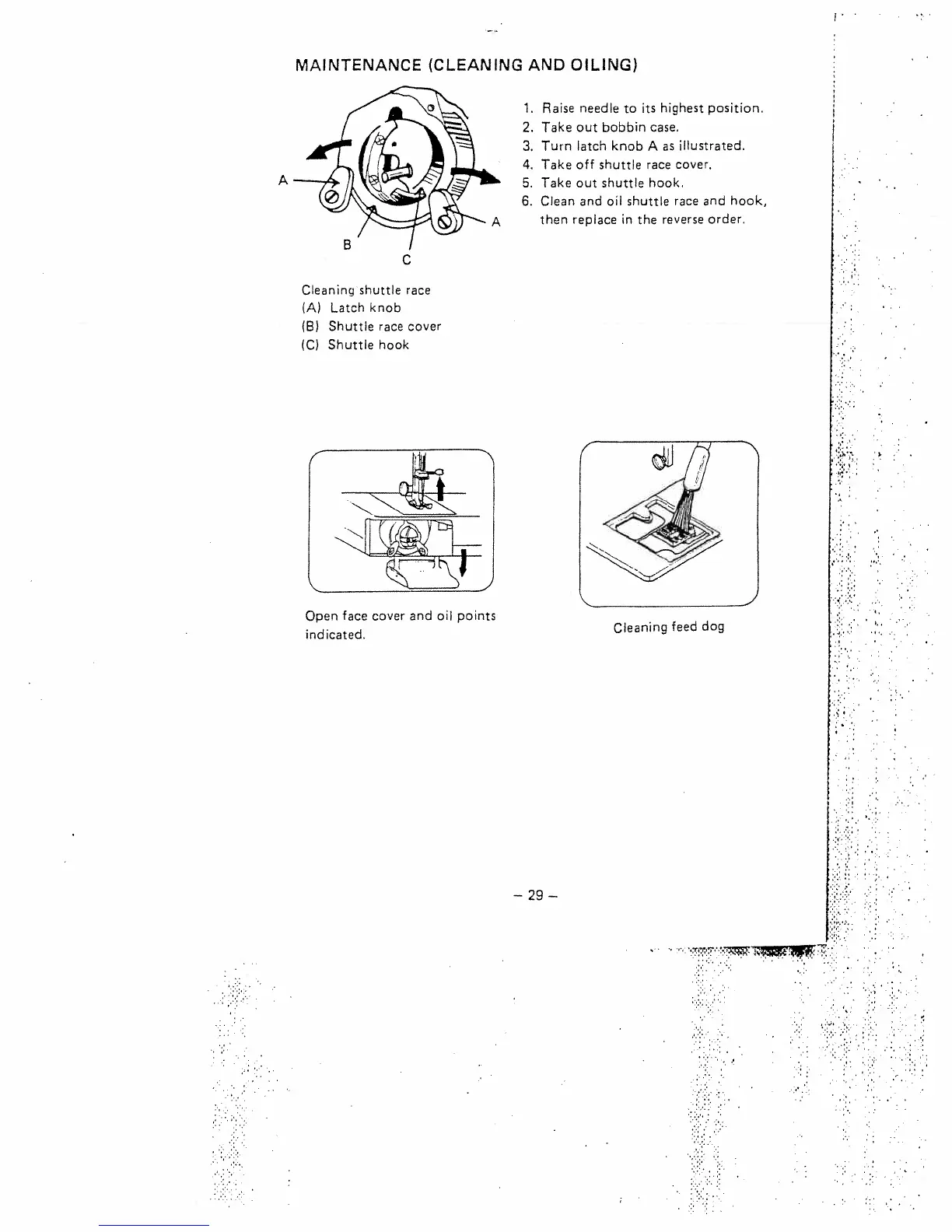

MAINTENANCE
(CLEANING
AND OILING)
1. Raise needle to its highest position.
2.
Take out bobbin case.
3.
Turn latch knob
A
as
illustrated.
4. Take
off
shuttle race
cover.
5.
Take
out shuttle
hook,
6.
Clean
and
oil
shuttle
race and
hook,
then replace in the
reverse
order.
Cleaning
feed
dog
— 29 —
