2016 Edition 1
Page 11
WHYTE Service Manual
Quick Release Lever Type: Fig.3
No tools required.
(Note, refer to the seat-pin manufacturers instructions in conjunction with these notes).
To Adjust the seat height with the QR Lever assembly fitted, simply undo the QR Lever (3) from
the Closed position to the Open position. Next adjust the height of the Seat Pin to the desired
level, and close the QR lever (3) from the Open position to the Closed position. The QR closing
force can be adjusted by turning the QR Adjuster Bobbin (7) clockwise or anti-clockwise before
closing the QR Lever (3).
CAUTION! When adjusting the saddle height you MUST obey the Minimum insertion
depth requirement marked on the Seat Post.
Item Description
1 QR Lever Cam Grub Screw
2 QR Lever Cam
3 Whyte QR Lever
4 Plastic Shim
5 Whyte Main Frame
6 Whyte Seat Clamp Band
7 QR Adjuster Bobbin
8 QR Shaft
9 T-Pad

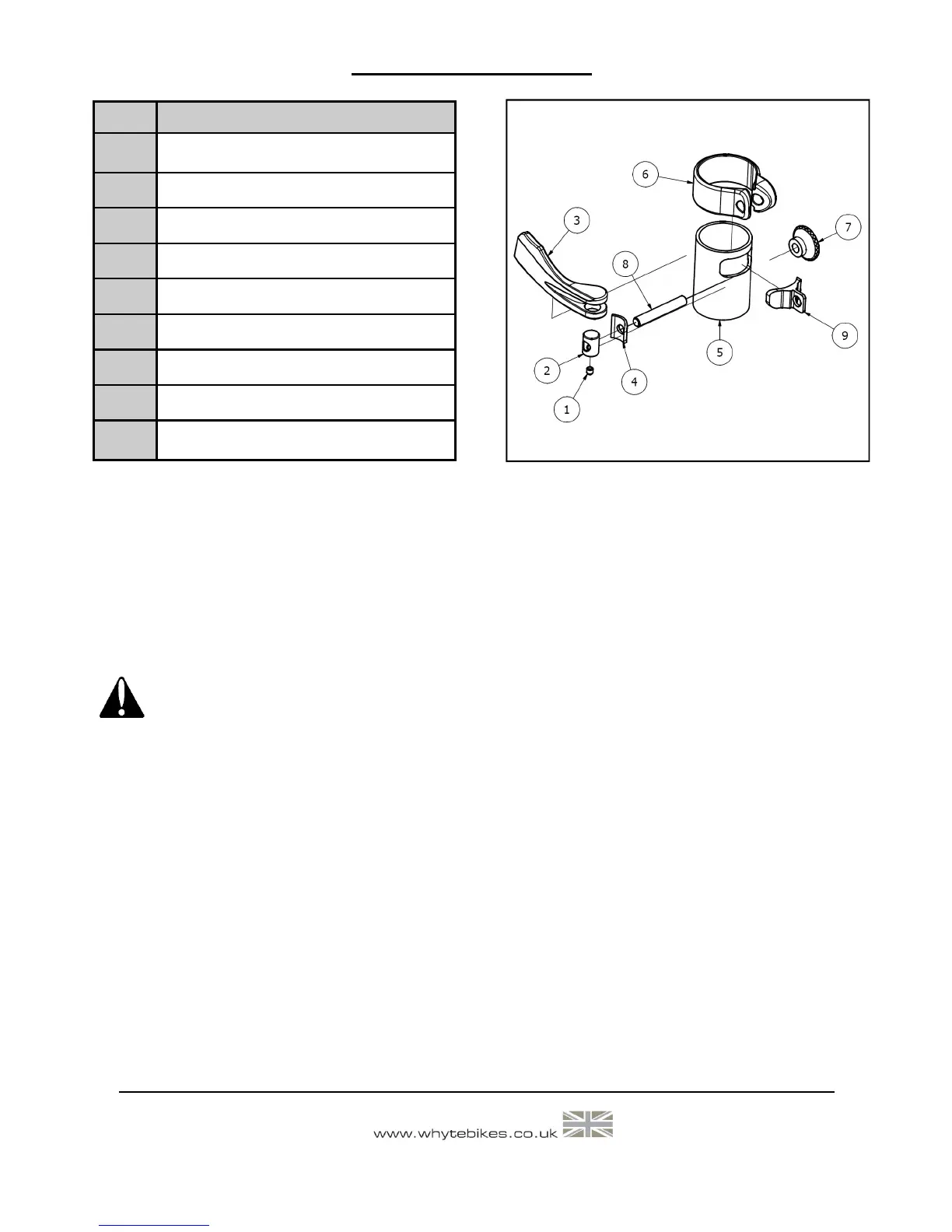

Fig.3: Getta-Grip Seat Clamp: QR Lever
