WHYTE Service Manual
3.2: WHYTE GETTA-GRIP SEAT CLAMP
The Getta Grip seat clamp design is a patented design to allow adjustment of the saddle
height by either the use of a Quick Release (QR) Lever, or bolt-up method. This manual
covers both styles of clamps.
Bolt-up Type: Fig.2
Tools Required: 5mm Allen Key
(Note, refer to the seat-pin manufacturers instructions in conjunction with these notes).
To adjust the seat height, using the 5mm Allen key, undo the M6 bolt (5) just enough to allow
the seat-pin to slide freely up and down. Set the height to the desired level, and re-tighten the
M6 bolt (5) with the 5mm Allen Key just enough so as to prevent the seat-pin from slipping down
and twisting.
Item: Description
1 Whyte Seat Clamp Band
2 T-Pad
3 Whyte Main Frame Seat Tube
4 Adjuster Nut
5 M6 x 25mm Long Fastener
6 M6 Washer

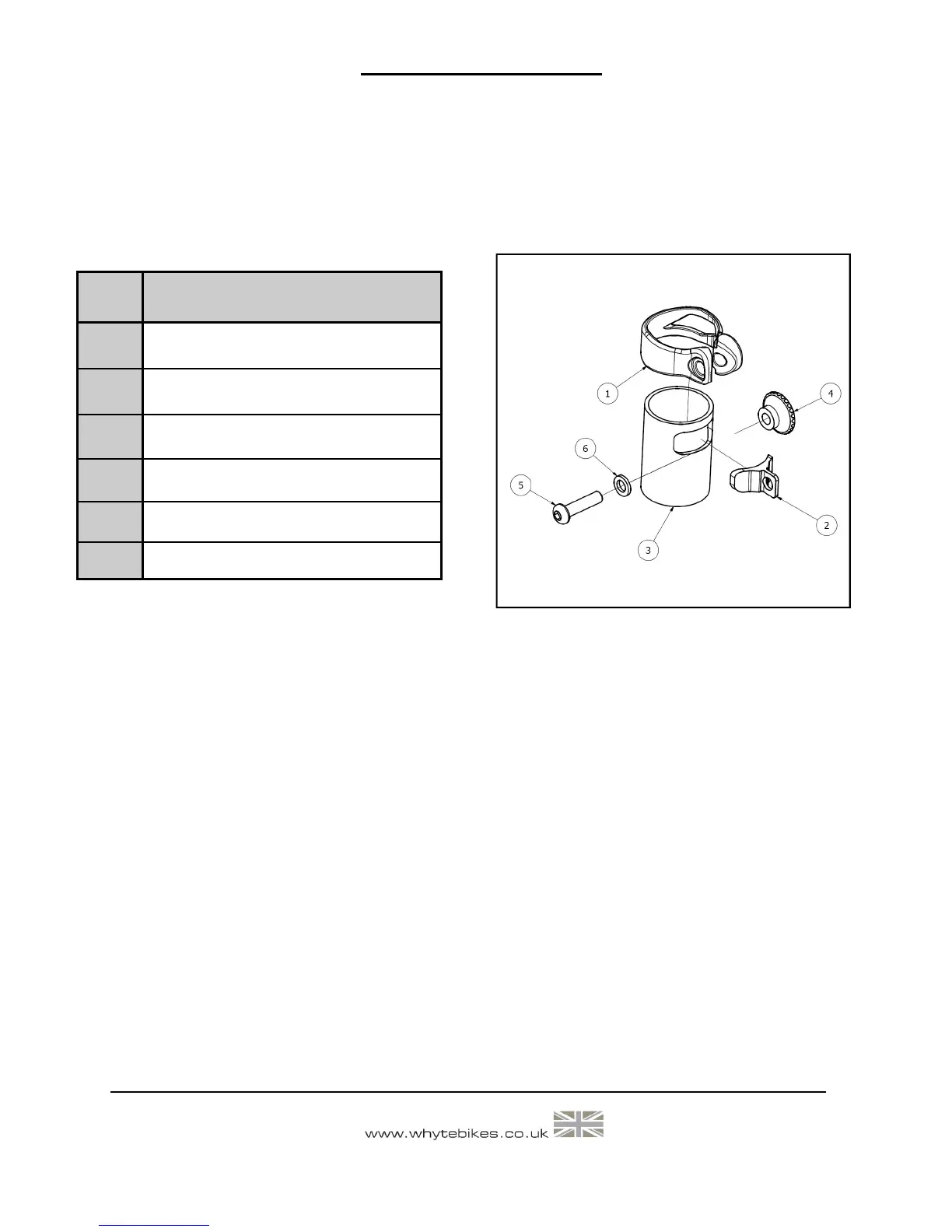

Fig.2: Getta-Grip Seat Clamp: Bolt-up
