2.0: GEOMETRY
2.1: WHYTE 29 CS & 29 C Team

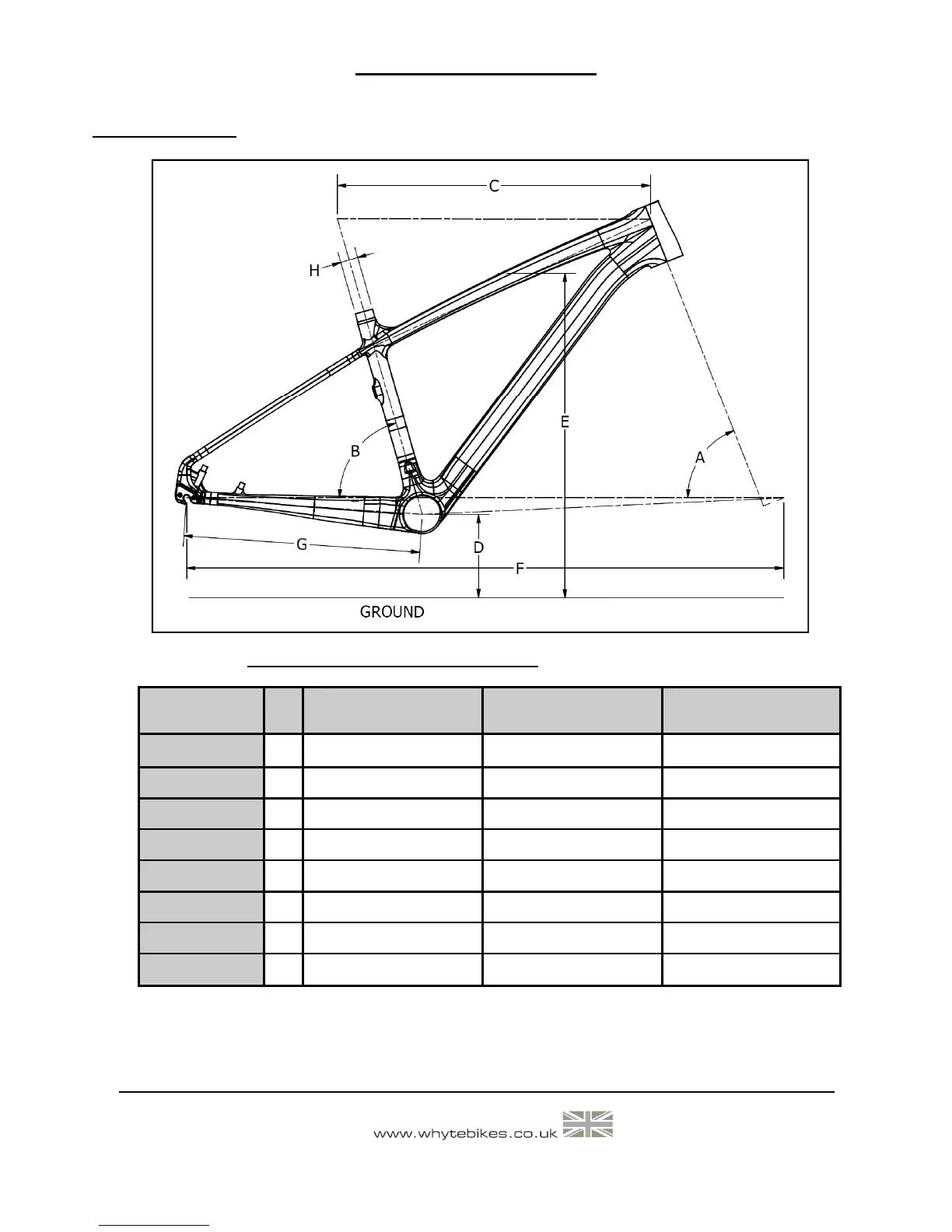

Fig.1:
Geometry
Frame Size
Small Medium Large
Head Angle 69.3° 69.3° 69.3°
Seat Angle 73.0° 73.0° 73.0°
Top Tube 612.2mm 627.0mm 640.8mm
BB Height* 305mm 305mm 305mm
Stand Over 790mm 810mm 845mm
Wheel Base 1117.3mm 1127.9mm 1144.9mm
Chain Stay 437.5mm 437.5mm 437.5mm
Seat Post 30.9mm 30.9mm 30.9mm
X
A
B
C
D
E
F
G
H
Note:
Geometry shown here is ’Showroom’ i.e. without rider aboard the bicycle. ’With Sag’ geometry is with rider after correct
sag is set at the front. Please refer to suspension set up for information on how to achieve the correct sag of the fork.
* BB height with Ø738mm tyres fitted (2.1” / 52-622)
