and press down on the saddle to compress the seat-post until it is fully down. Then release
the activation trigger and the seat-post should rise up automatically.
Figure 6. If this does not happen, gradually loosen the M6 Capscrew (1) with the 5mm Allen
Key below the 6Nm limit, until the seat-post rises automatically.
Figure 7. Then firmly twist the saddle to confirm the seat-post is still securely gripped by the
lowered torque value that allows the “dropper” seat-post to function correctly.
CAUTION! When adjusting the saddle height you MUST obey the Minimum insertion
depth requirement marked on the Seat Post (7). Also consult the seat-pin manufactur-
ers instructions in conjunction with these notes.
WHYTE Service Manual

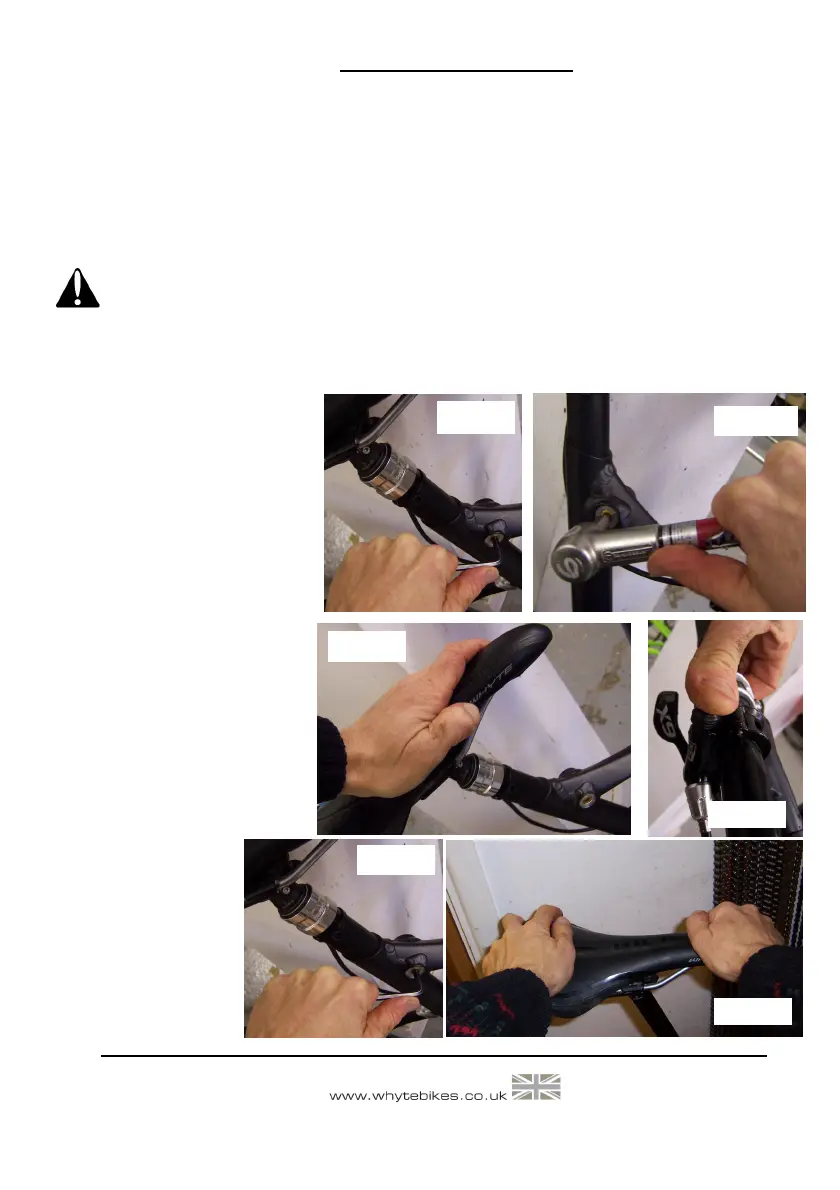

Figure 2
