13
Fig. D2Fig. D1

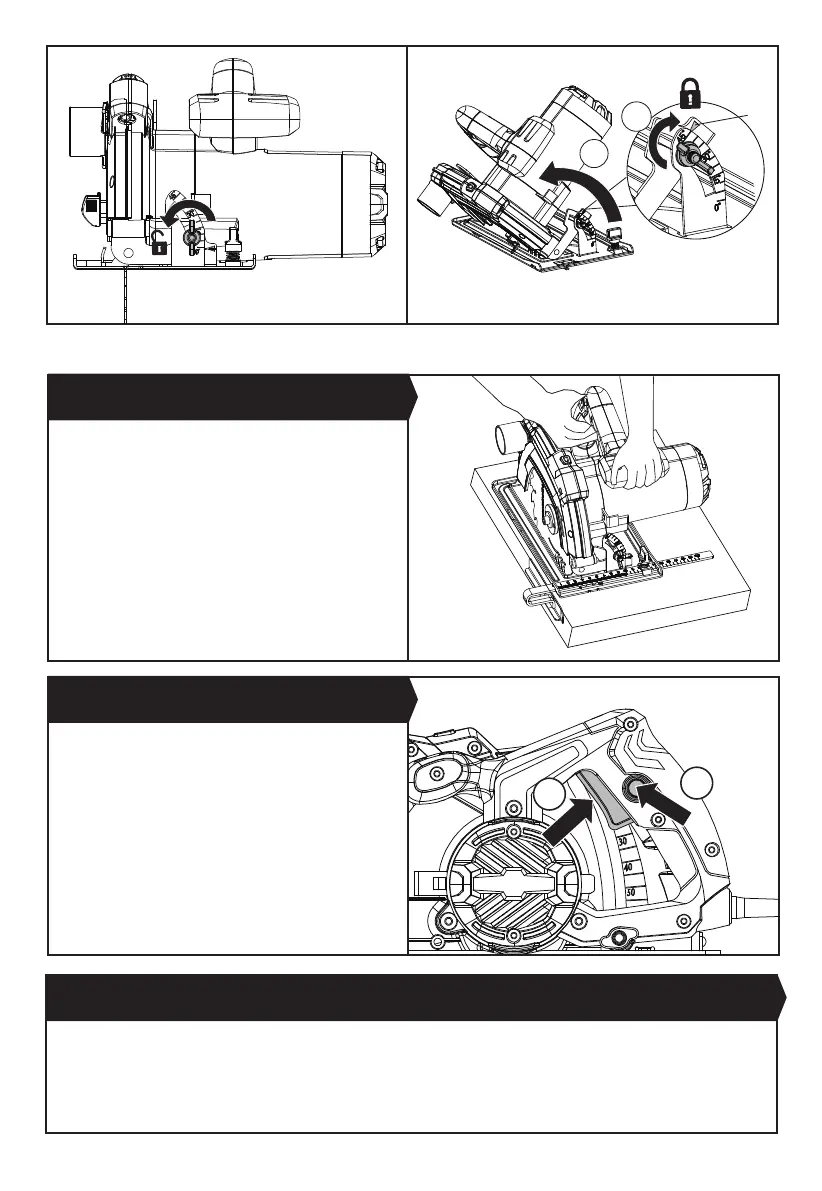

OPERATION
Your switch is locked off to prevent accidental starting.
Depress lock off button then on/off switch and release
lock off button. Your switch is now on. To switch off just
release the on/off switch.
The blade may continue to rotate after switching off. Wait
until the machine comes to a complete stop before
setting down.
2. SAFETY ON/OFF SWITCH (SEE FIG. F)
Fig. F
Fig. C2
2
1
c
Always hold your saw rmly with both hands when
operating.
1. HAND GRIP POSITION (SEE FIG. E)
Fig. E
1
2
3. ADJUSTING THE PARALLEL GUIDE (SEE FIG. G1, G2)
It is used for making cuts parallel to a workpiece edge at a chosen distance. First turn the parallel guide lock knob anti-
clockwise to loosen, then slide the parallel guide arm through the xture to achieve the required cutting distance, then
tighten the lock knob by turning it clockwise to securely clamp the parallel guide.
NOTE: It is best to carry out a trial cut before cutting your workpiece.
