Wickes PSC1904.1 - Cutting Guide and Bevel Cuts; Using the Cutting Guide; Performing Bevel Cuts

14
There is a cutting guide notch on the front of the base
plate for use with the parallel guide.
For straight cuts, use the 0º guide mark to align with your
parallel guide scale.
For a 45º bevel cut, use the 45º guide mark to align with
your parallel guide scale.
Securely clamp the parallel guide. Always make a trial cut
to check the setting.
Fig. H1
Fig. H2

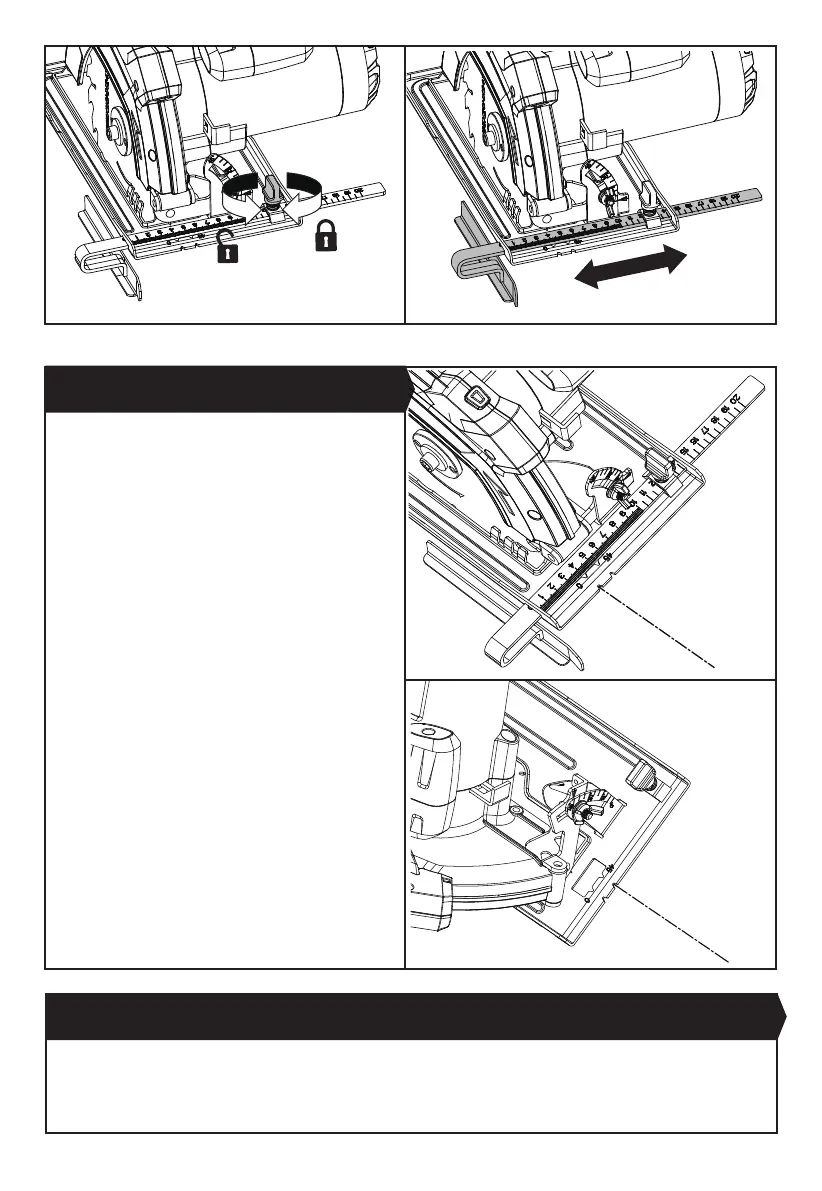

4. CUTTING GUIDE (SEE FIG. H1, H2)
Fig. G2
Fig. G1
0º
45º
5. BEVEL CUTS
Follow the instructions in ADJUSTING THE BASE PLATE ANGLE in ADJUSTING section to set required bevel angle
between 0° and 45°. Do not use the depth of cut scale when making bevel cuts due to possible inaccuracy.
