WIKA operating instructions models DIH50, DIH52, DIH62
GB
14008548.03 05/2013 GB/D

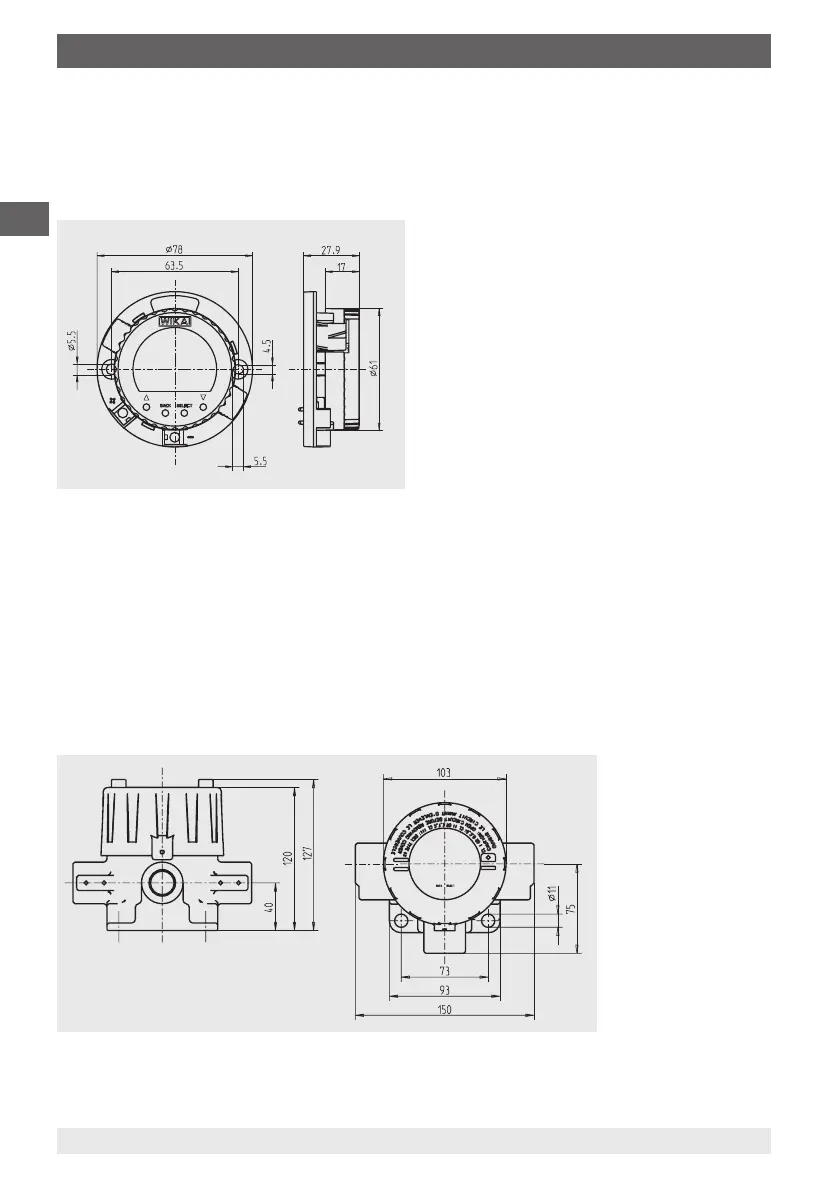

4.1.1 Basic module (DIH50-B, DIH50-Z, DIH52-B, DIH52-Z)
The basic modules comprise a mounting adapter with two integrated connection terminals
and connecting cables, as well as a display unit including the display and the electronics.
Both parts are connected via a cable with plug-in coupling. Depending on their design, the
basic modules can be mounted in dierent cases or thermometer connection heads.
1920741.01
Use cases suitable for eld mounting which comply with the valid regulations and
requirements. In particular, observe the ambient conditions dened in chapter 3
"Specications" and the requirements dened in chapter 9 "Information on mounting and
operation in hazardous areas".
4.1.2 Field indicators (DIH5x-S, DIH5x-I, DIH5x-F, DIH62-S, DIH62-I)
The eld indicators comprise a case with integrated display and operation module and a
terminal insert with two terminal blocks.
■
Field indicator, models DIH50, DIH52 (aluminium, stainless steel)
1556707.01
4. Design and function
