18 WIKA operating instructions RTD and TC, intrinsically safe designs
GB

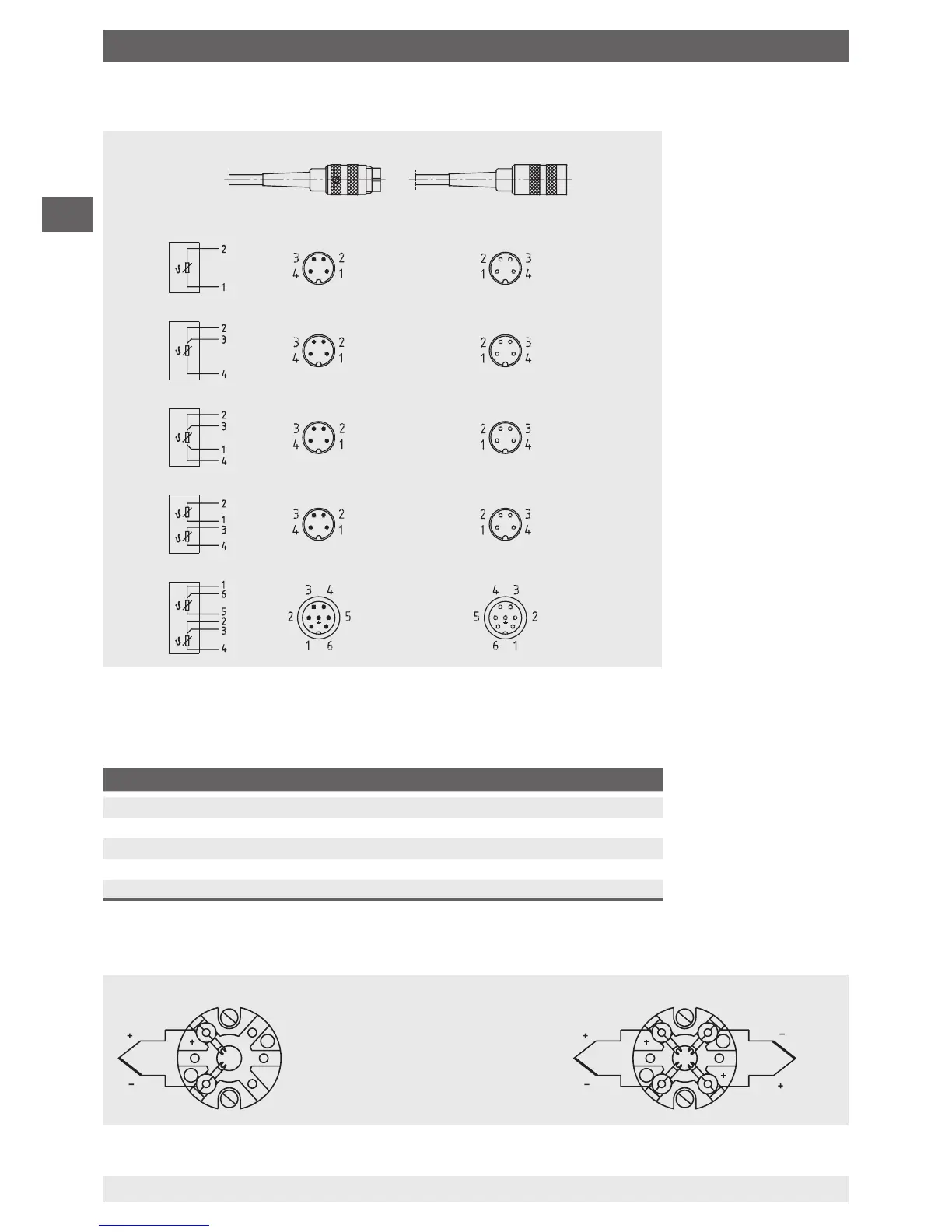

6.3 Electrical connection of thermocouples
Cable colour coding of thermocouples
Sensor type Standard Positive Negative
K DIN EN 60584 green white
J DIN EN 60584 black white
E DIN EN 60584 violet white
T DIN EN 60584 brown white
N DIN EN 60584 pink white
6.3.1 Thermocouples with terminal block
Binder
Series 680
Binder
Series 680
Binder
Series 680
Binder
Series 680
Binder
Series 692
Binder screw/plug-in connector
3366142.02
Connector (male)
View of the connector contacts
Socket (female)
View of the socket contacts
3166822.03
Single thermocouple Dual thermocouple
The colour coding at the positive
connection to the devices always
decides the correlation of polarity
and connection terminal.
6. Commissioning, operation
