5. Commissioning, operation
14150915.07 11/2020 EN/DE/FR/ES
WIKA operating instructions, models TRxx and TCxx 17
With cable or connector
5.4 Tightening torques
5.4.1 Tightening torques between cable gland and connection head
Ϯ
Junction between cable gland and connection head
Thread Tightening torques
M20 x 1.5 12 Nm
½ NPT T. F. F. T 2 - 3
1)
Ϯ
Junction between cable and cable gland
Screw the pressure screw tightly into the adapter (use appropriate tools!)
1) Turns from finger tight (T.F.F.T)

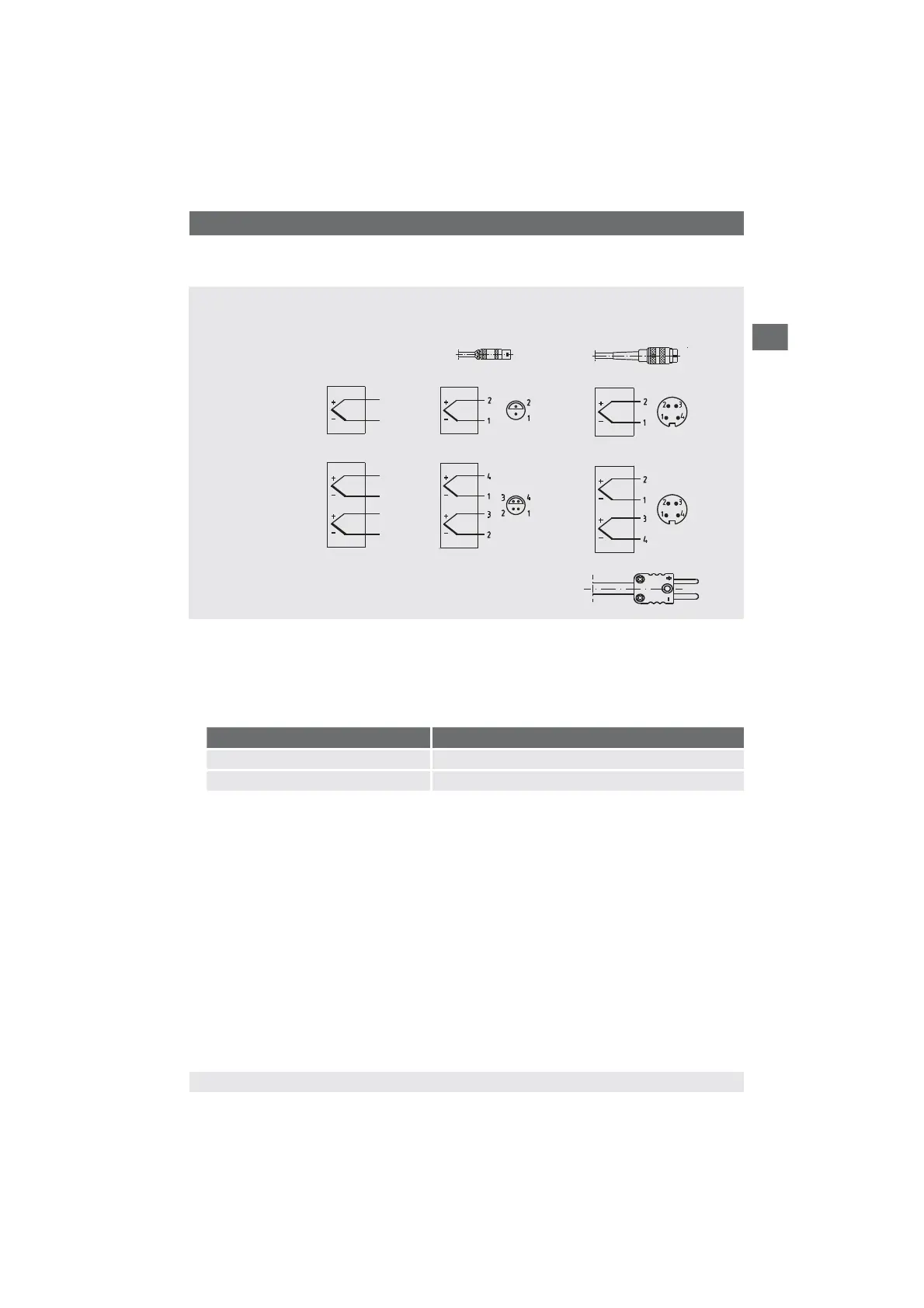

3171966.01 3374896.01
Lemosa connector,
male on the cable
Binder connector,
male on the cable
(screw-in plug)
Single
thermocouple
For the marking
of the cable ends,
see table
Cable
Dual
thermocouple
Positive and negative terminal are marked.
Two thermo connectors are used with dual
thermocouples.
Thermo connector
3374900.01a
