3. Safety
14150915.07 11/2020 EN/DE/FR/ES
WIKA operating instructions, models TRxx and TCxx8

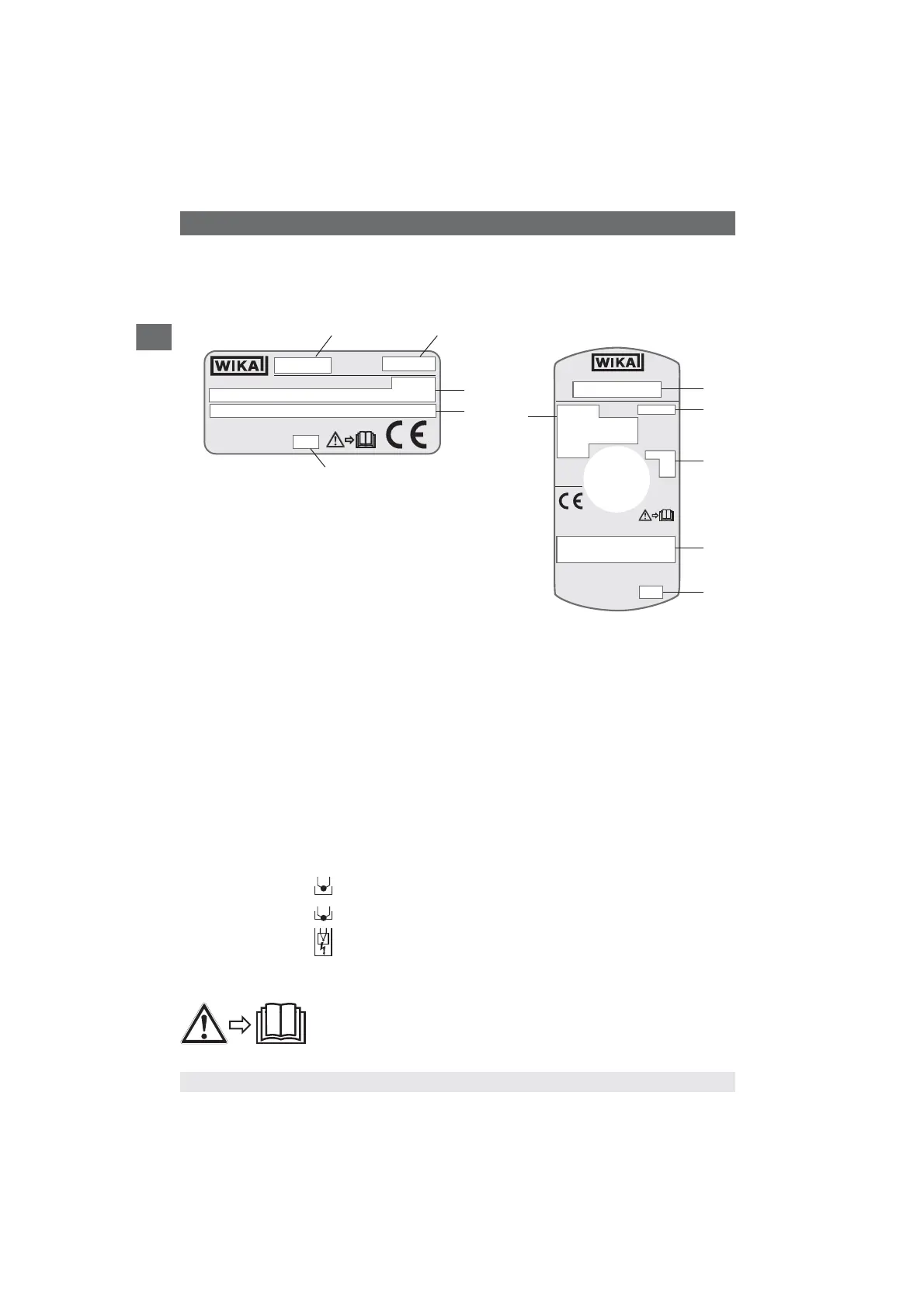

3.5 Labelling, safety marks
Product labels (examples)
c
Model
d
Serial number
e
Information on version (measuring element, measuring range...)
Sensor in accordance with standard (resistance thermometer)
Ϯ
F = Thin-film measuring resistor
Ϯ
FT = Thin-film measuring resistor, sensitive tip
Ϯ
W = Wire-wound measuring resistor
Sensor in accordance with standard (thermocouple)
Ϯ
ungrounded
Ϯ
grounded
f
Transmitter model (only for design with transmitter)
g
Year of manufacture
h
Sensor symbol
Ϯ
ungrounded = ungrounded welded
Ϯ
grounded = welded to the sheath (grounded)
Ϯ
quasi grounded = The thermometer is, due to its low isolation clearances between
sensor and sheath, to be considered as grounded.
i
Approval-related data (non-Ex version = no specification)
Before mounting and commissioning the instrument, ensure you
read the operating instructions!
TR10-A-IICZ
1102AB12
1 x Pt100 / B / 3
-50 ... +250 °C
D = 6 mm
525 mm
(F)
D-63911 Klingenberg
IEC 60751
II 3G Ex nA IIC T1 ... T6 Gc X
Made in Germany 2014
d
g
i
h
c
e
TR10-B
1 x Pt100 / B / 3 (F)
-50 ... +250 °C
IEC 60751
Made in Germany 2015
11012345
T32 4 ... 20 mA
-50 ... +250 °C
D-63911 Klingenberg
HART
®
cd
f
e
g
