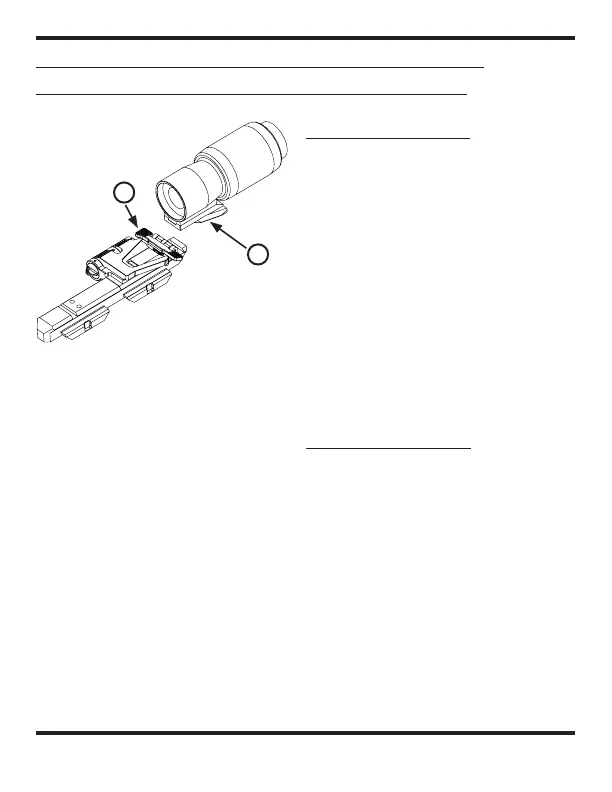

ATTACH/DETACH MAGNIFIER - ATTACH/DETACH THE
MAGNIFIER TO/FROM THE WILCOX FLIP MOUNT
ATTACH MAGNIFIER
Push the Optic Release Lever
(1).
Insert the Shoe dovetail (2)
into the Flip Mount interface
and push in until the Optic
Release Lever locks.
Gently pull on the Magnifier to
make sure it is locked in place.
DETACH MAGNIFIER
Push the Optic Release Lever
and pull out the Shoe dovetail.
