4
WILDEN PUMP & ENGINEERING, LLC
WIL-11150 - E-10
Section 4

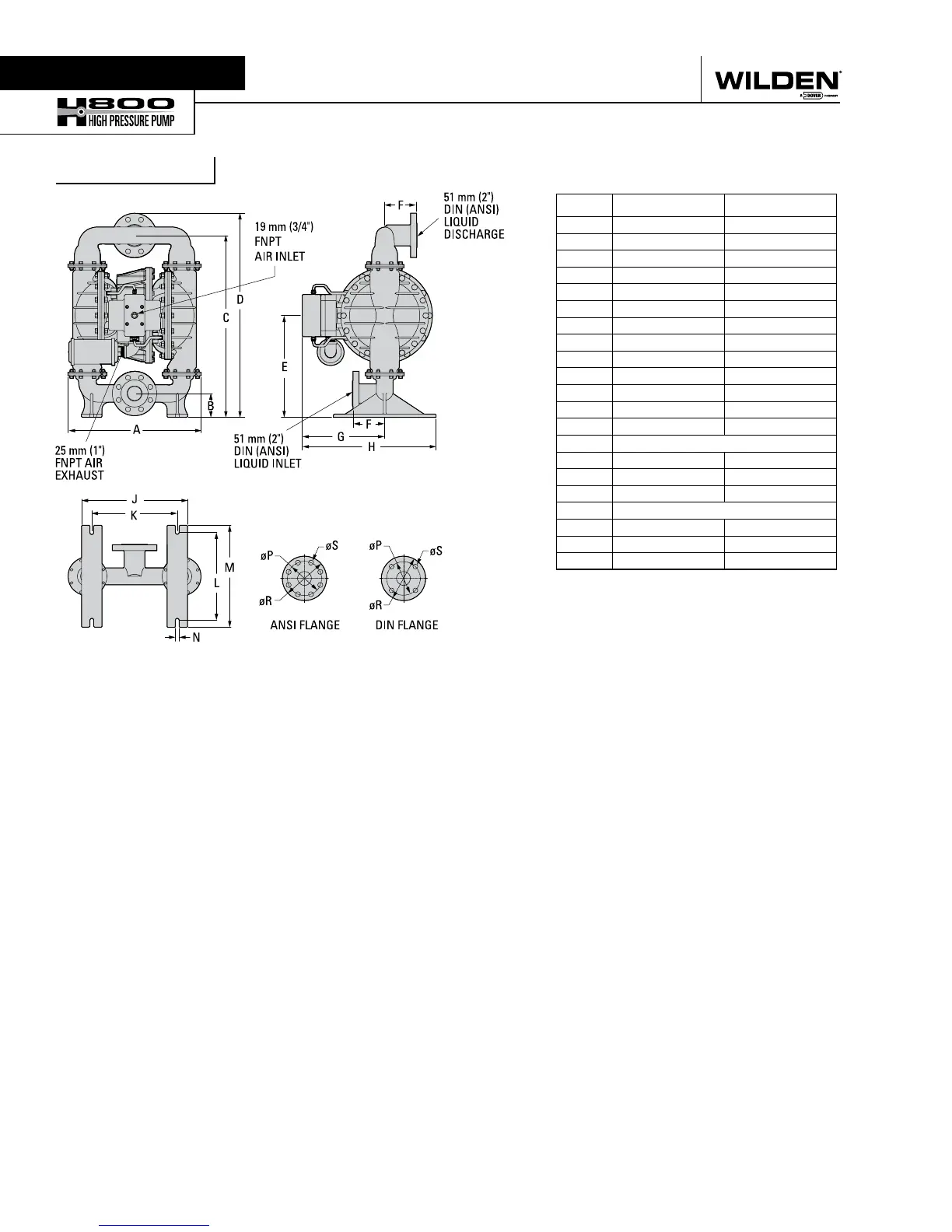

DIMENSIONAL DRAWINGS
H800 Metal
DIMENSIONS
ITEM Metric (mm) Standard (inch)
A 490 19.3
B 89 3.5
C 677 26.7
D 760 29.9
E 378 14.9
F 120 4.7
G 307 12.1
H 498 19.6
J 394 15.5
K 318 12.5
L 325 12.8
M 379 14.9
N 14 0.6
DIN FLANGE
P 125 DIA. 4.9 DIA.
R 165 DIA. 6.5 DIA.
S 18 DIA. 0.7 DIA.
ANSI FLANGE
P 125 DIA. 5.0 DIA.
R 165 DIA. 6.5 DIA.
S 19 DIA. 0.8 DIA.
REV B
