INSTALLATION AND DISASSEMBLY OF HEAT DISCHARGE PIPE

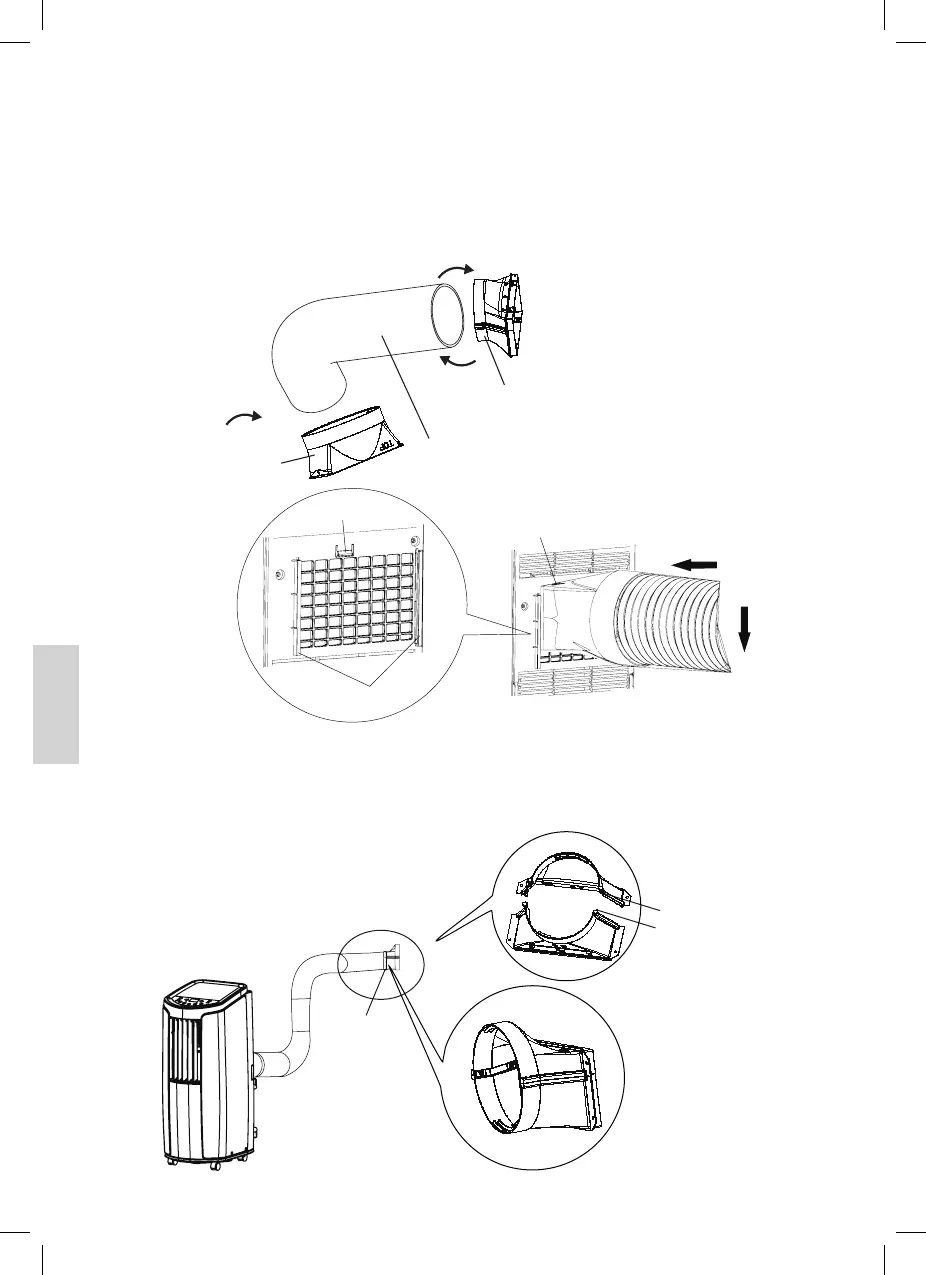

Install heat discharge pipe
1. Rotate joint A and joint B clockwise into the two ends of heat discharge pipe.
clockwise
joint B+C
clockwise
joint A
clasp
groove
the side with ”TOP” is upwards
heat discharge pipe
2. Insert joint A of heat discharge pipe (the side with ”TOP” is upwards) into the
groove until you hear a ”klikk”sound.
3. Aim the locating pole of joint B of heat discharge pipe at the opening of joint C;
rotate it slightly to make joint B and joint C connect tightly.
joint B+C
tightened status
opening
locating pole
