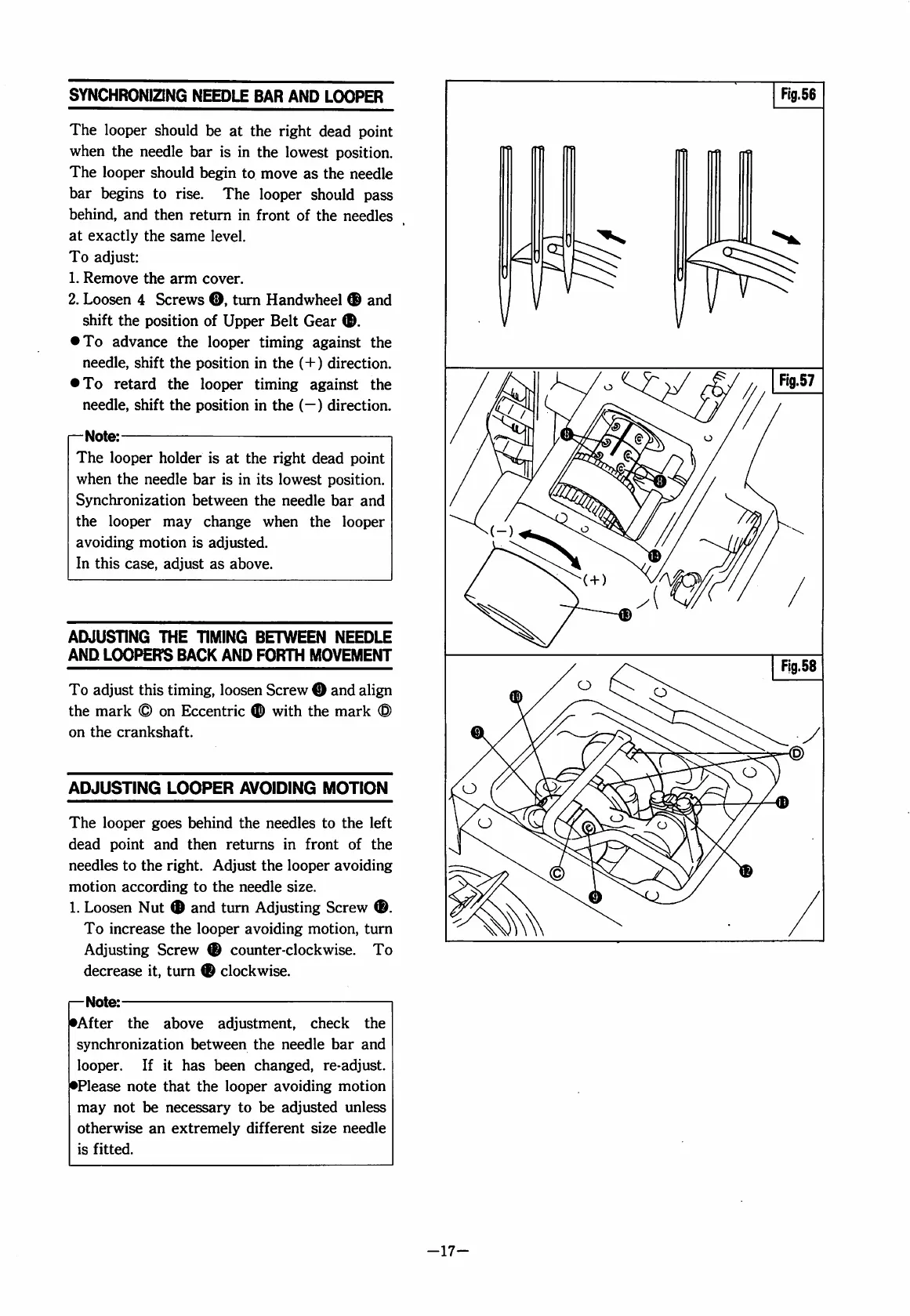

SYNCHRONIZING NEEDLE BAR AND LOOPER
The looper should be at the right dead point
when the needle bar is in the lowest position.
The looper should begin to move as the needle
bar begins to rise. The looper should pass
behind, and then return in front of the needles
at exactly the same level.
To adjust:
1. Remove the arm cover.
2. Loosen 4 Screws ®, turn Handwheel ® and
shift the position of Upper Belt Gear
• To advance the looper timing against the
needle, shift the position in the (+) direction.
• To retard the looper timing against the
needle, shift the position in the (—) direction.
- Note:
The looper holder is at the right dead point
when the needle bar is in its lowest position.
Synchronization between the needle bar and
the looper may change when the looper
avoiding motion is adjusted.
In this case, adjust as above.
ADJUSTING THE TIMING BETWEEN NEEDLE
AND LOOPERS BACK AND FORTH MOVEMENT
To adjust this timing, loosen Screw O and align
the mark © on Eccentric ® with the mark ©
on the crankshaft.
ADJUSTING LOOPER AVOIDING MOTION
The looper goes behind the needles to the left
dead point and then returns in front of the
needles to the right. Adjust the looper avoiding
motion according to the needle size.
1. Loosen Nut ® and turn Adjusting Screw ®.
To increase the looper avoiding motion, turn
Adjusting Screw ® counter-clockwise. To
decrease it, turn ® clockwise.
—Note:
•After the above adjustment, check the
synchronization between the needle bar and
looper. If it has been changed, re-adjust.
•Please note that the looper avoiding motion
may not be necessary to be adjusted unless
otherwise an extremely different size needle
is fitted.
