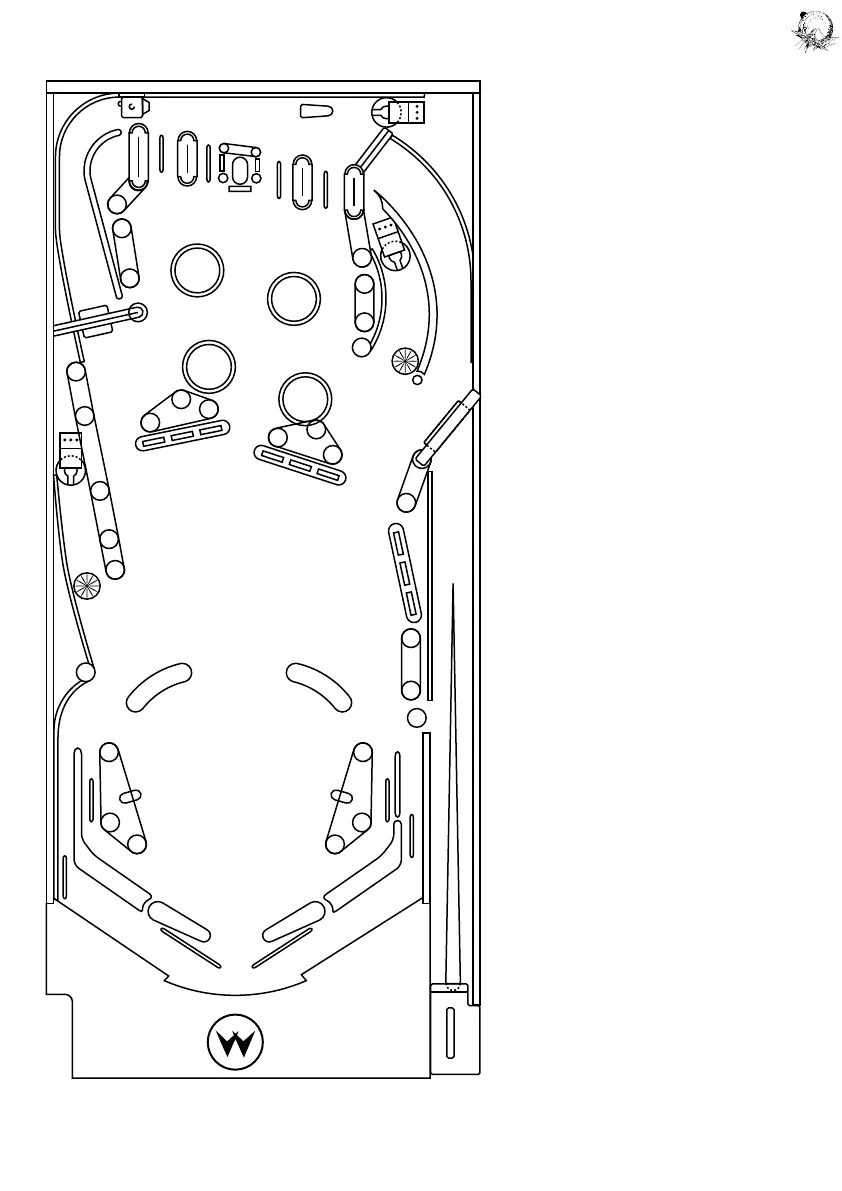

Figure 3. Playfield Solenoid Locations and Solenoid Chart
8
SOL.
NO. DESCRIPTION
01 Ball Release
02 Not Used
03 Not Used
04 Left Eject Hole
05 Right Eject Hole
06 Upper Right Eject Hole
07 Left Ball Saver Kicker
08 Ball Ramp Thrower
09 Sound
10 Sound
11 Sound
12 Sound
13 Sound
14 Credit Knocker
15 Flash Lamps
16 Coin Lockout
17 Top Left Jet Bumper
18 Bottom Left Jet Bumper
19 Top Right Jet Bumper
20 Bottom Right Jet Bumper
21 Right Kicker
22 Left Kicker
