Table 3. Solenoid Connections
9
SOL. WIRE DRIVER SOLENOID
NO. FUNCTION COLOR CONNECTIONS TRANS. PART NO.
01 Ball Release GRY-BRN 2P11-4, 8P3-17 Q15 SA-23-850-DC
02 Not Used GRY-RED 2P11-5, 8P3-18 Q17 —
03 Not Used GRY-ORN 2P11-7, 8P3-19 Q19 —
04 Left Eject Hole GRY-YEL 2P11-8, 8P3-20 Q21 SG-23-850-DC
05 Right Eject Hole GRY-GRN 2P11-9, 8P3-21 Q23 SG-23-850-DC
06 Upper Right Eject Hole GRY-BLU 2P11-3, 8P3-22 Q25 SG-23-850-DC
07 Left Ball Saver Kicker GRY-VIO 2P11-2, 8P3-23 Q27 SG-23-850-DC
08 Ball Ramp Thrower GRY-BLK 2P11-1, 8P3-24 Q29 SA-23-850-DC
09 Sound BRN-BLK 2P9-9, 10P3-3 Q31 —
10 Sound BRN-RED 2P9-7, 10P3-2 Q33 —
11 Sound BRN-ORN 2P9-1, 10P3-5 Q35 —
12 Sound BRN-YEL 2P9-2, 10P3-4 Q37 —
13 Sound BRN-GRN 2P9-3, 10P3-7 Q39 —
14 Credit Knocker BRN-BLU 2P9-4, 7P1-16 Q41 SA2-23-850-DC
15 Flash Lamps BRN-VIO 2P9-5, 6P2 Q43 Type 89 Bulbs
16 Coin Lockout BRN-GRY 2P9-6, 7P1-18, 7P2-4 Q45 SM-35-4000-DC
*17 Top Left Jet Bumper BLU-BRN 2P12-7, 8P3-11 Q2 SG-23-850-DC
*18 Bottom Left Jet Bumper BLU-RED 2P12-4, 8P3-12 Q4 SG-23-850-DC
*19 Top Right Jet Bumper BLU-ORN 2P12-3, 8P3-13 Q6 SG-23-850-DC
*20 Bottom Left Jet Bumper BLU-YEL 2P12-6, 8P3-14 Q8 SG-23-850.DC
*21 Right Kicker BLU-GRN 2P12-8, 8P3-15 Q10 SG-23-850-DC
*22 Left Kicker BLU-BLK 2P12-9, 8P3-16 Q12 SG-23-850-DC
* Right FLipper BLU-VIO 7P1-8, 8P3-3 — SFL-19-400/
— 30-750-DC
* Left Flipper BLU-GRY 7P1-10, 8P3-4 — SFL-19-400/
— 30-750-DC
*NOTES:
1. Special switch connections for solenoids 17 through 22
are as follows:
17 — ORN-BRN — 2P13-5, 8P3-5
18 — ORN-RED — 2P13-3, 8P3-6
19 — ORN-BLK — 2P13-2, 8P3-7
20 — ORN-YEL — 2P13-4, 8P3-8
21 — ORN-GRN — 2P13-8, 8P3-9
22 — ORN-BLU — 2P13-9, 8P3-10
2. Flipper button connections are as follows:
Right — ORN-VIO — 2P12-1, 7P1-7
Left — ORN-RED — 2P12-2, 7P1-9

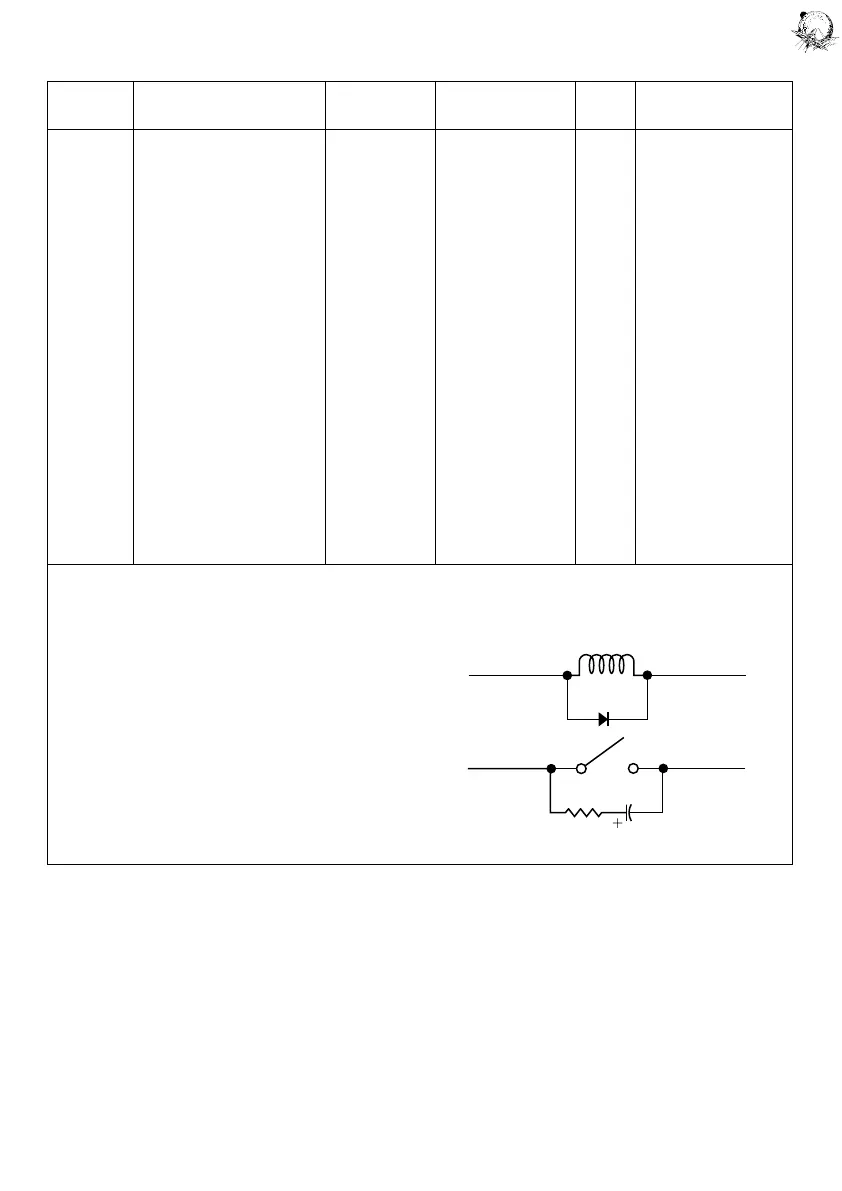

3. Typical wiring for solenoids and special switches:
RED (B+)
BLK (GRD)
