26
27
25
28
46
12
13
30
36

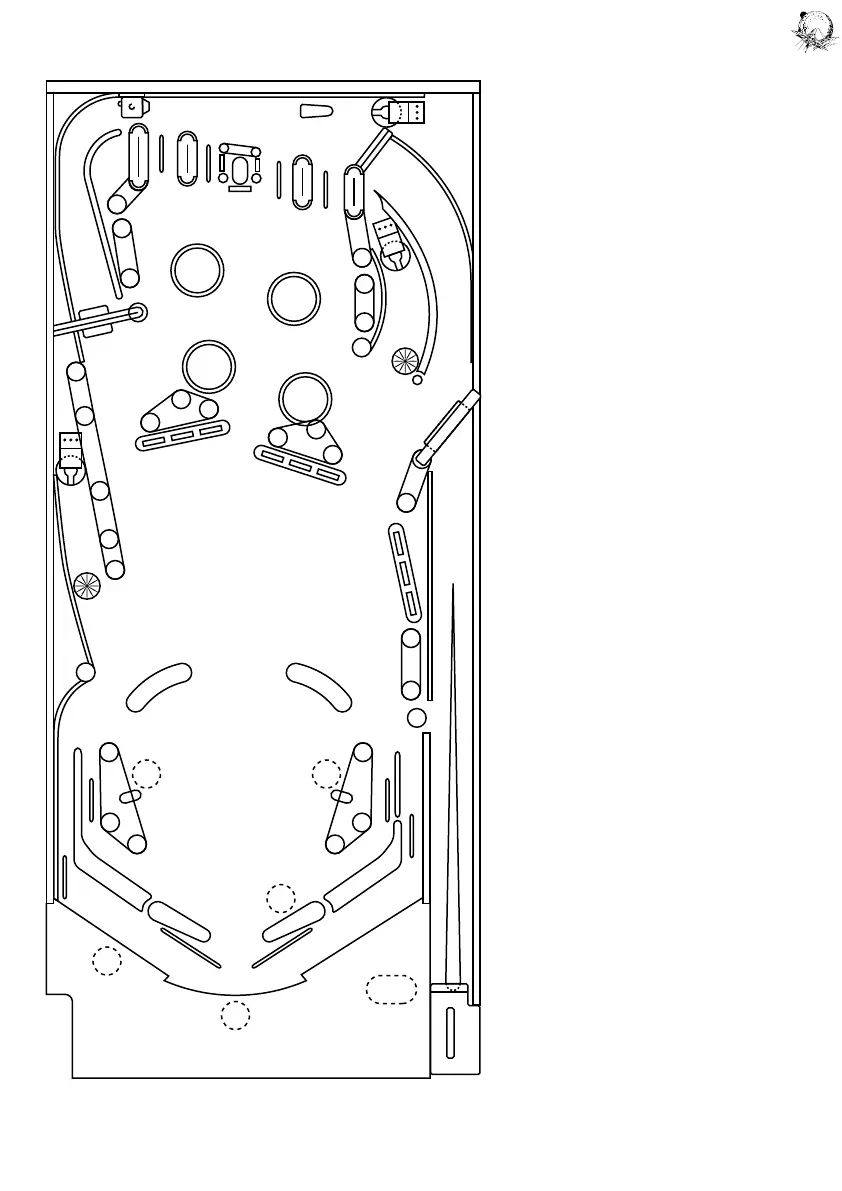

Figure 4. Playfield Switch Locations and Switch Chart
10
SWITCH
NO. FUCTION (SCORE)
01 Plumb Bob Tilt
02 Ball Roll Tilt
03 Credit Button
04 Right Coin Switch
05 Centre Coin Switch
06 Left Coin Switch
07 Slam Tilt
08 High Score Reset
09 Outhole
10 Left Outside Rollover (1000)
11 Left Inside Rollover (1000/3000)
12 Left Kicker (10)
13 Left Eject Hole (1000/10,000)
14 Upper Middle Left Standup (50)
15 Spinner (100/1000)
16 Top Left Standup (50)
17 "1" Target (1000)
18 "2" Target (1000)
19 "3" Target (1000)
20 Not Used
21 "4" Target (1000)
22 "5" Target (1000)
23 "6" Target (1000)
24 Not Used
25 Bottom Left Jet Bumper (100/1000)
26 Top Left Jet Bumper (100/1000)
27 Top Right Jet Bumper (100/1000)
28 Bottom Right Jet Bumper (100/1000)
29 Top Centre Target (1000)
30 Right Eject Hole (1000/10,000)
31 Upper Top Right Standup (50)
32 "F" Rollover (1000)
33 "I" Rollover (1000)
34 "R" Rollover (1000)
35 "E" Rollover (1000)
36 Upper Right Eject Hole (1000/10,000)
37 Lower Top Right Standup (50)
38 Middel Right Standup (50)
39 Top "POWER" Target (1000)
40 Middle "POWER" Target (1000)
41 Bottom "POWER" Target (1000)
42 Right Kicker (10)
43 Right Inside Rollover (1000/3000)
44 Right Outside Rollover (1000)
45 Right Flipper LANE CHANGE Switch
46 Ball Shooter
47 Playfield Tilt
48 Lower Right Standup (50)
49 Centre Middle Left Standup (50)
50 Lower Middle Left Standup (50)
51 Left Ball Ramp
52 Not Used
53 Left Eject Rollover (1000)
54 Right Eject Rollover (1000)
55 Not Used
56 Not Used
57 Right Ball Ramp
58 Centre Ball Ramp
NOTE: Second score is lit or flashing value.
32
33
34
35
29
31
37
16
54
15
14
49
50
53
17
18
19
21
22
23
38
39
40
41
48
42
11
43
44
10
45
47
09
51
58
57
