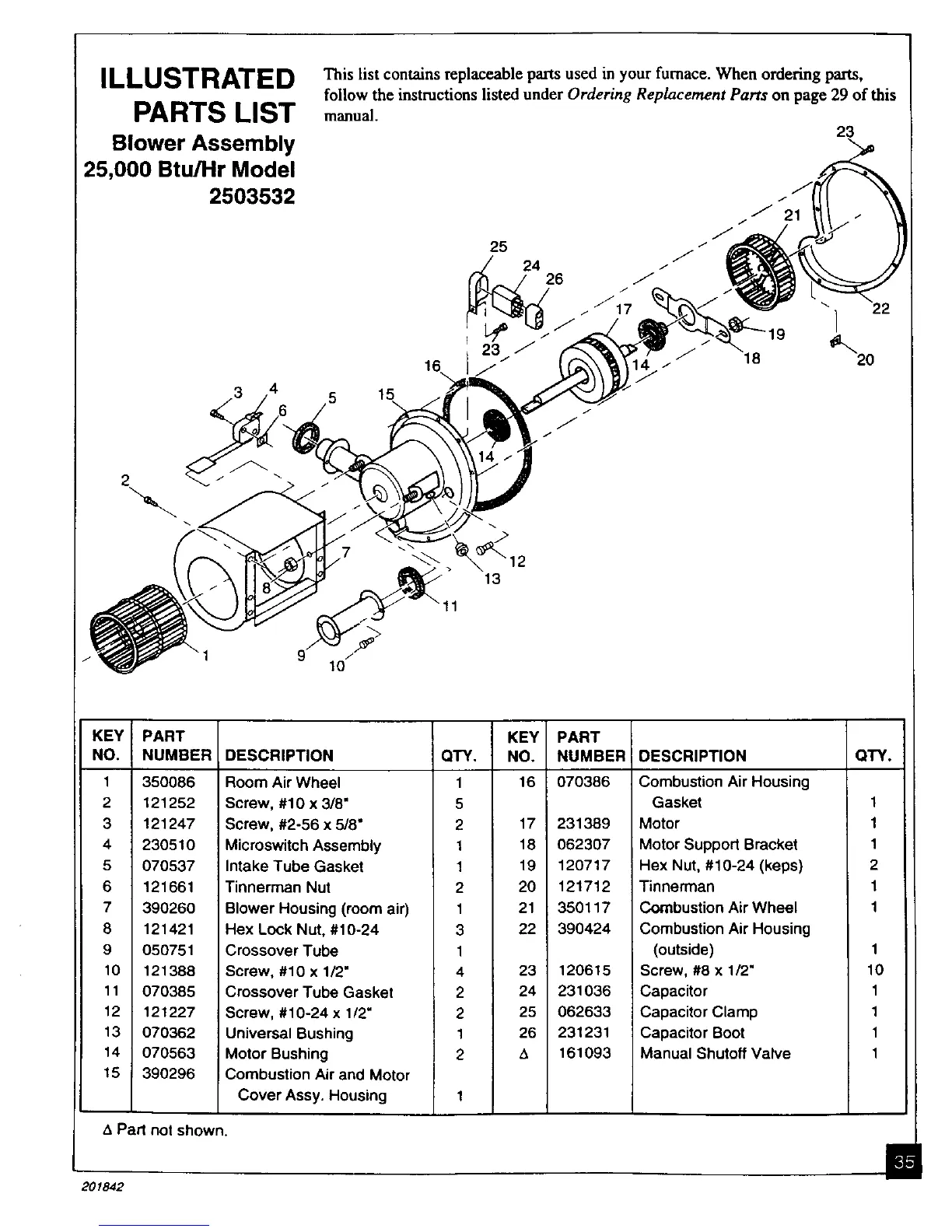

ILLUSTRATED _is list containsreplaceable parts used in your furnace. When ordering parts,
follow the instructions listed under Ordering Replacement Parts on page 29 of this
PARTS LIST manual.
Blower Assembly 2_
25,000 Btu/Hr Model
2503532 --/_ "_
KEY PART
NO. NUMBER
1 350086
2 121252
3 121247
4 230510
5 070537
6 121661
7 390260
8 121421
9 050751
10 121388
11 070385
12 121227
13 070362
14 070563
15 39O296
,_Part not shown.
201842
DESCRIPTION
QTY.
Room Air Wheel 1
Screw, #10 x 3/8" 5
Screw, #2-56 x 5/8" 2
Microswitch Assembly 1
Intake Tube Gasket 1
Tinnerman Nut 2
Blower Housing (room air) 1
Hex Lock Nut, #10-24 3
Crossover Tube 1
Screw, #10 x 1/2" 4
Crossover Tube Gasket 2
Screw, #10-24 x 1/2" 2
Universal Bushing 1
Motor Bushing 2
Combustion Air and Motor
Cover Assy. Housing 1
KEY PART
NO, NUMBER
16 070386
17 231389
18 062307
19 120717
20 121712
21 350117
22 390424
23 120615
24 231036
25 062633
26 231231
161093
DESCRIPTION QTY.
Combustion Air Housing
Gasket 1
Motor 1
Motor Support Bracket 1
Hex Nut, #10-24 (keps) 2
Tinnerman 1
Combustion Air Wheel 1
Combustion Air Housing
(outside) 1
Screw, #8 x 1/2" 10
Capacitor 1
Capacitor Clamp 1
Capacitor Boot 1
Manual Shutoff Valve 1
|
