Installing Your Furnace
2-WAY FRONT DIFFUSING GRILLE KIT MODEL 6703

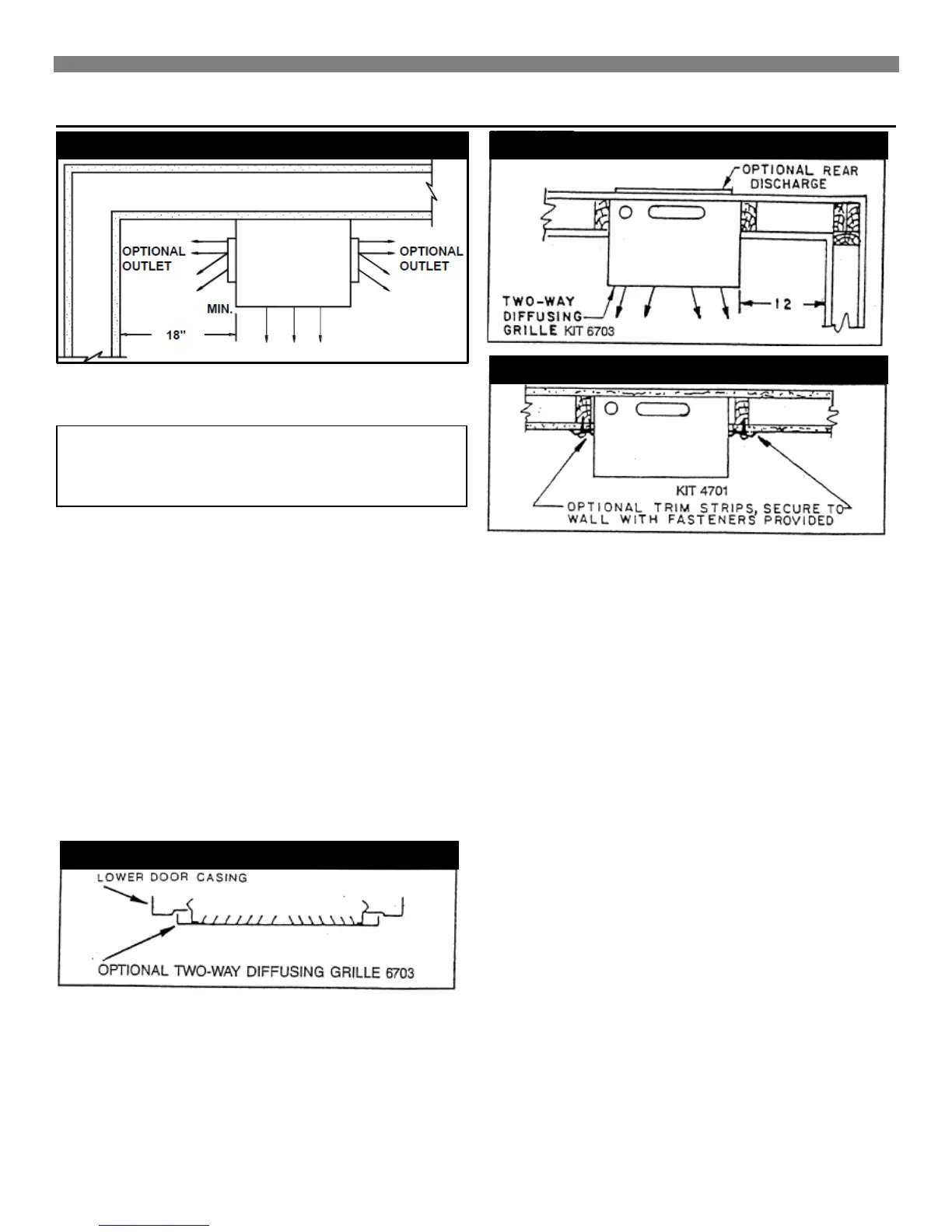

Refer to Fig. 32.
CAUTION: For use only in conjunction with a
front outlet when the furnace is spaced at least
12 inches from an intersection wall (see Fig.
33).
Metal clips on backside of grille snap into side louvers of front
warm air outlet. Adjust clips with pliers if necessary. Grille may
also be attached with sheet metal screws.
1-WAY FRONT DIFFUSING GRILLE KIT MODEL 6704
Follow instructions for 2-WAY FRONT DIFFUSING GRILLE 6703
except furnace clearance to an adjacent wall must be 3/4 inch
minimum. See Page 8, Fig 3A.
TRIM STRIP KIT MODEL 4701
When desired, optional Trim Strip Kit may be used to cover the
crack between furnace and wall. See Figs. 34 and 35. Place strips
tight against furnace with other edge against wall surface and
fasten to wall with escutcheon pins provided. Cut off trim strips to
fit each furnace as required.
NOTE
Quarter-round wood molding may be used for trim if desired,
which may be painted to match the wall.
