8

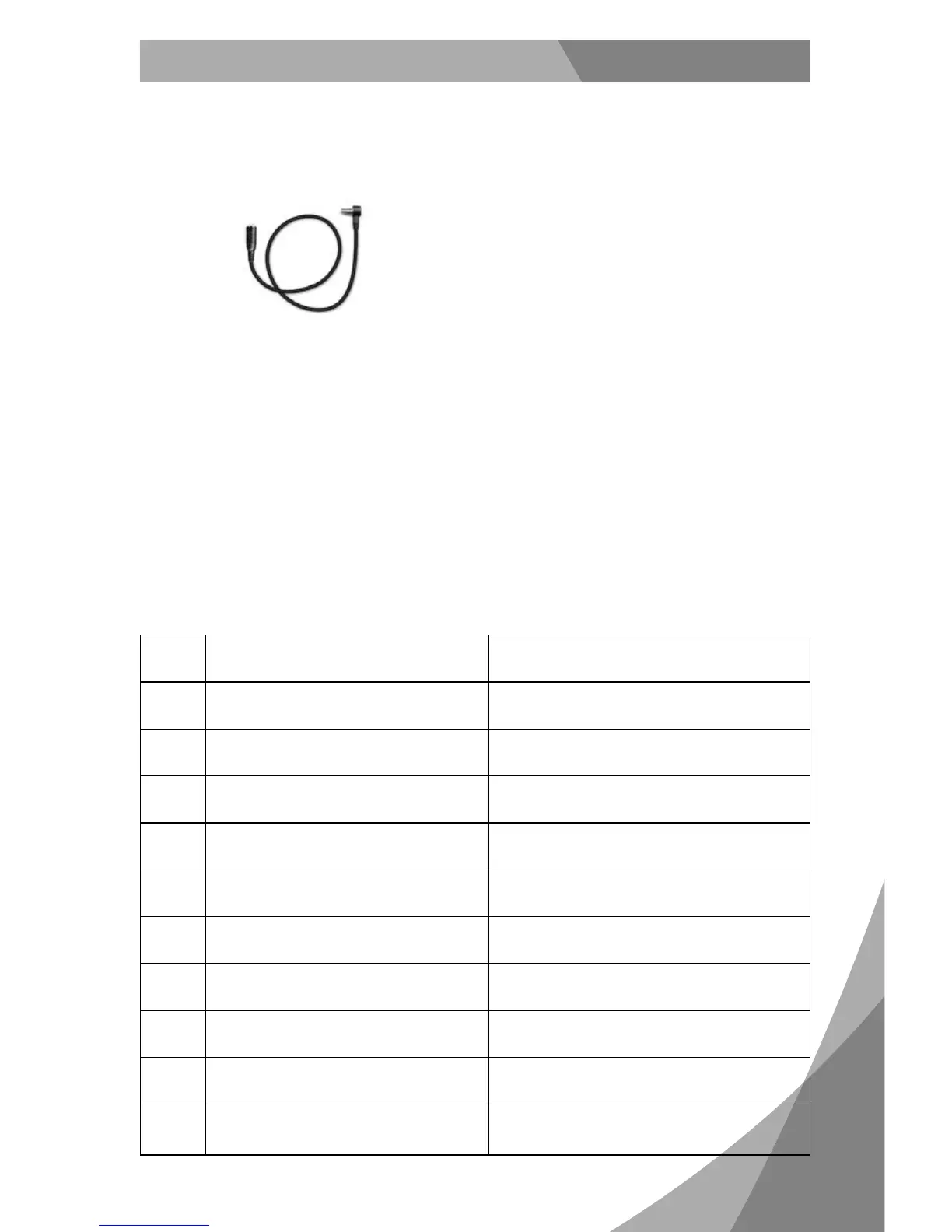

Installing a Wilson External Adapter
An 18-inch external adapter is required to connect the cell phone or cellular data
card to the amplifi er. The external adapter is cell phone/data card-specifi c and
may be purchased through a local retailer.
Refer to Wilson’s Adapter Guide to
identify the right adapter for your
cell phone or cellular data card. The
adapter guide is available through a
local retailer or visit
www.wilsonelectronics.com.
The external adapter plugs into the included six-foot extension cable and directly
into a socket on the cell phone or cellular data card as shown in Figure 1 on
page 6. (NOTE: See the user’s manual for your specifi c phone or data card to
determine the socket location.)
Run the extension cable from the external adapter on the cell phone or cellular
data card and attach it to the FME-Male connector labeled “cellular phone” on the
amplifi er.
Extension Cable Chart
The following Wilson extension cables are available to help you customize your
installation for peak performance.
951101
5’ Extension Cable RG58U
Low Loss Coax
0.6 dB loss
951102
10’ Extension Cable RG58U
Low Loss Coax
1.2 dB loss
951103
15’ Extension Cable RG58U
Low Loss Coax
1.8 dB loss
951104
20’ Extension Cable RG58U
Low Loss Coax
2.4 dB loss, N-Male to FME-Female
951108
20’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax
Only use 9913 Equivalent Low Loss Coax for
extensions 20’ or longer, 0.8 dB loss
951105
30’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax
1.2 dB loss
951106
50’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax
2.0 dB loss
951117
75’ Extension 9913 Equivalent
Ultra Low Loss Coax
3.0 dB loss
951107
100’ Extension 9913 Equivalent
Ultra Low Loss Coax
4.0 dB loss
951113
2’ Extension 9913 Equivalent Ultra Low
Loss Coax (N-Male to N-Male Ends)
0.08 dB loss, Jumper Coax - Can be used to
connect a splitter behind an amplifi er.
951110
2’ Extension RG58U Low
Loss Coax (N-Male to FME-Female)
Used with the Yagi antenna to help fi nd the
optimum signal strength
(for installation purposes only).
RG58U - FME connectors / 9913 - N connectors
Sample
adapter
