Wilson Electronics SIGNALBOOST MobilePro - In-Building Installation Diagram; In-Building Installation Steps

4
USB Power Cable
Outside
Antenna
(mounted
on window)
AC power supply Laptop USB Port
O
An
(m
o
n
MobilePro
™
Amplifier
In-Building Installation

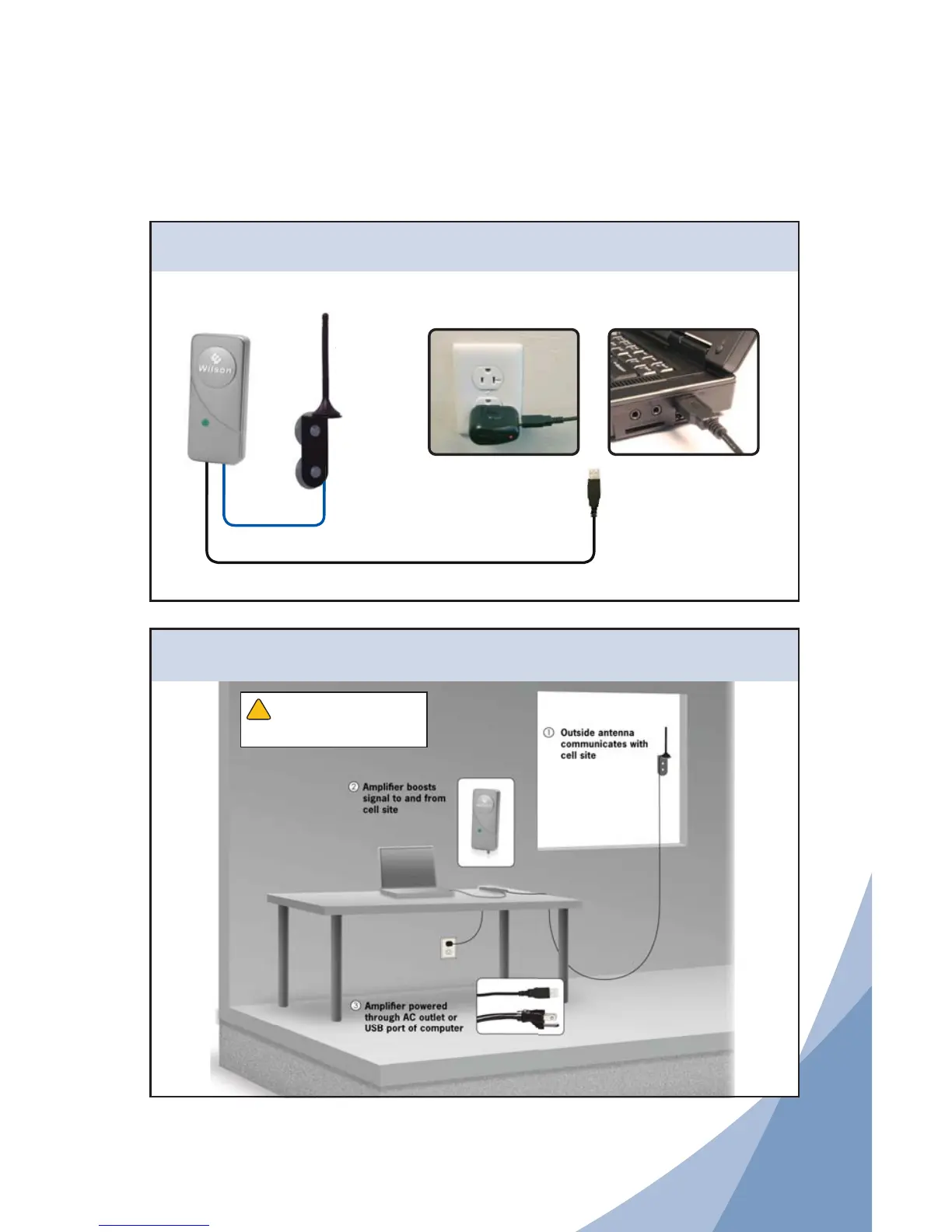

Installation Diagram - In-Building
See detailed instructions on page 6
An in-building accessory kit is available from Wilson Electronics. It includes the window
bracket antenna mount, and AC adapter, and a convenient travel case.
Warning: The outside antenna must
have a separation of at least 8 inches from all
persons during normal operation.
!
