contrast & brightness controls slide left/right. The suspend switch is a push button.

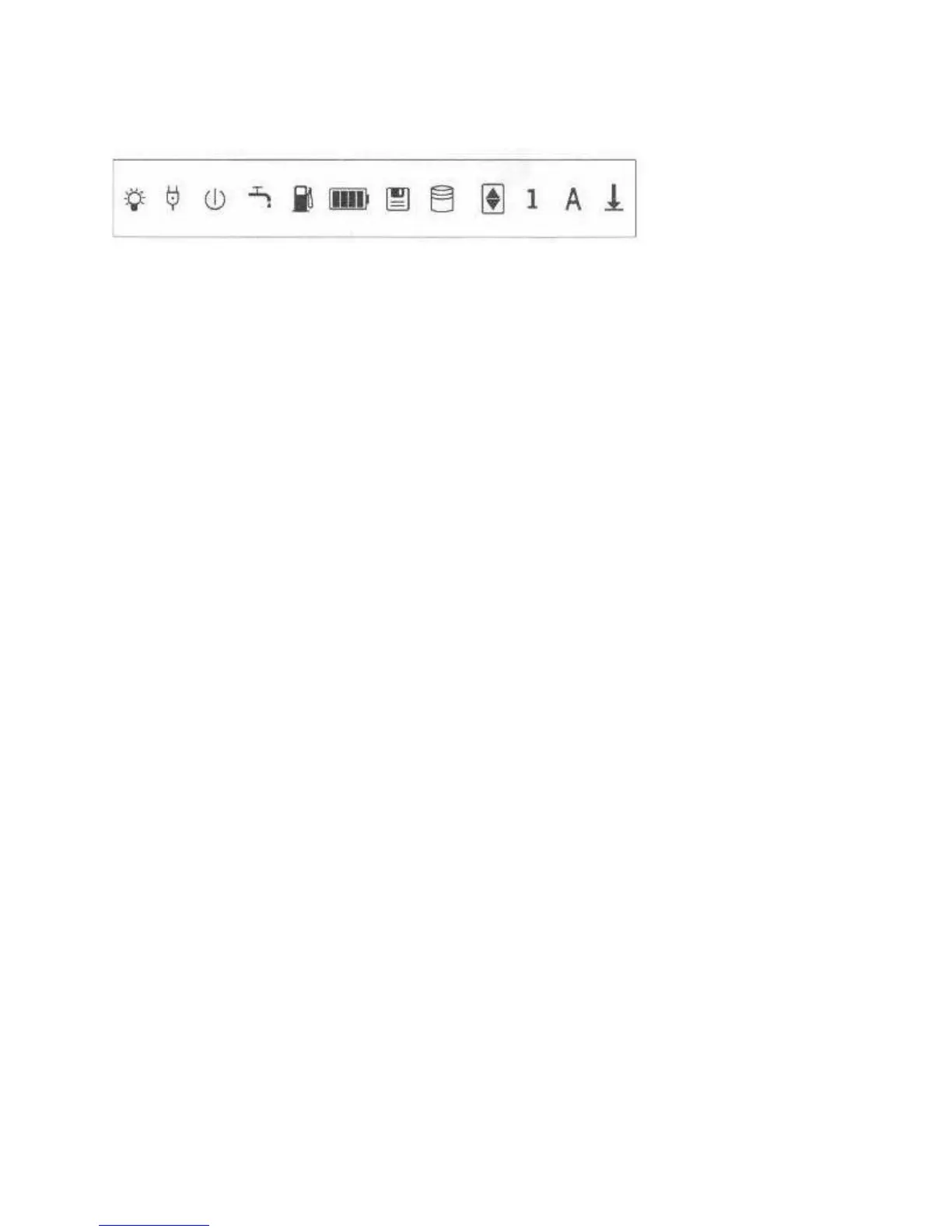

Fig. 9: LCD Indicator Panel Icons
The LCD Indicator Panel
The LCD indicator panel displays system status information. There are twelve icons, which are
explained on the next. The icons display, flash or change appearance to indicate the current
status of the part of the system they represent.f
LCD Indicator Panel Icon Functions
Power On
Indicates the computer is turned on, using either AC or battery.
AC Adapter connected
Indicates the computer is connected to an AC power source.
Suspend state activated
Indicates the computer is in Suspend-to-Ram mode.
Power Management
Indicates power management is enabled on the Power Management Setup page of the Setup
program.
Battery Gauge
Four bars and the cap show the charge level. With AC Adapter connected, it indicates charge
progress. Running on battery power, it indicates the remaining charge.
Floppy Disk Drive active
Flashes when the floppy drive is in being accessed.
Hard Disk Drive active
Flashes when the hard drive is in being accessed.
PCMCIA Indicator
Arrows show PCMCIA slots in use. Arrows indicate upper and lower slots. Only the bottom
arrow displays for Type 3 cards.
