MAINTENANCE
ADMIRAL 98628 08/19/03
17
!
WARNING:
ONLY QUALIFIED MAINTENANCE PERSONNEL ARE TO PERFORM
THE FOLLOWING REPAIRS.
SOLUTION PUMP REPLACEMENT
1. Turn off all switches and unplug the machine.
2. Remove recovery tank.
3. Remove the (2) screws that fasten the solution tank to the frame, and tilt tank back to expose the
inside of the frame.
4. Remove solution hoses from fittings in pump.
5. Remove the (2) screws that fasten the pump to the frame.
6. Reverse process to install pump.

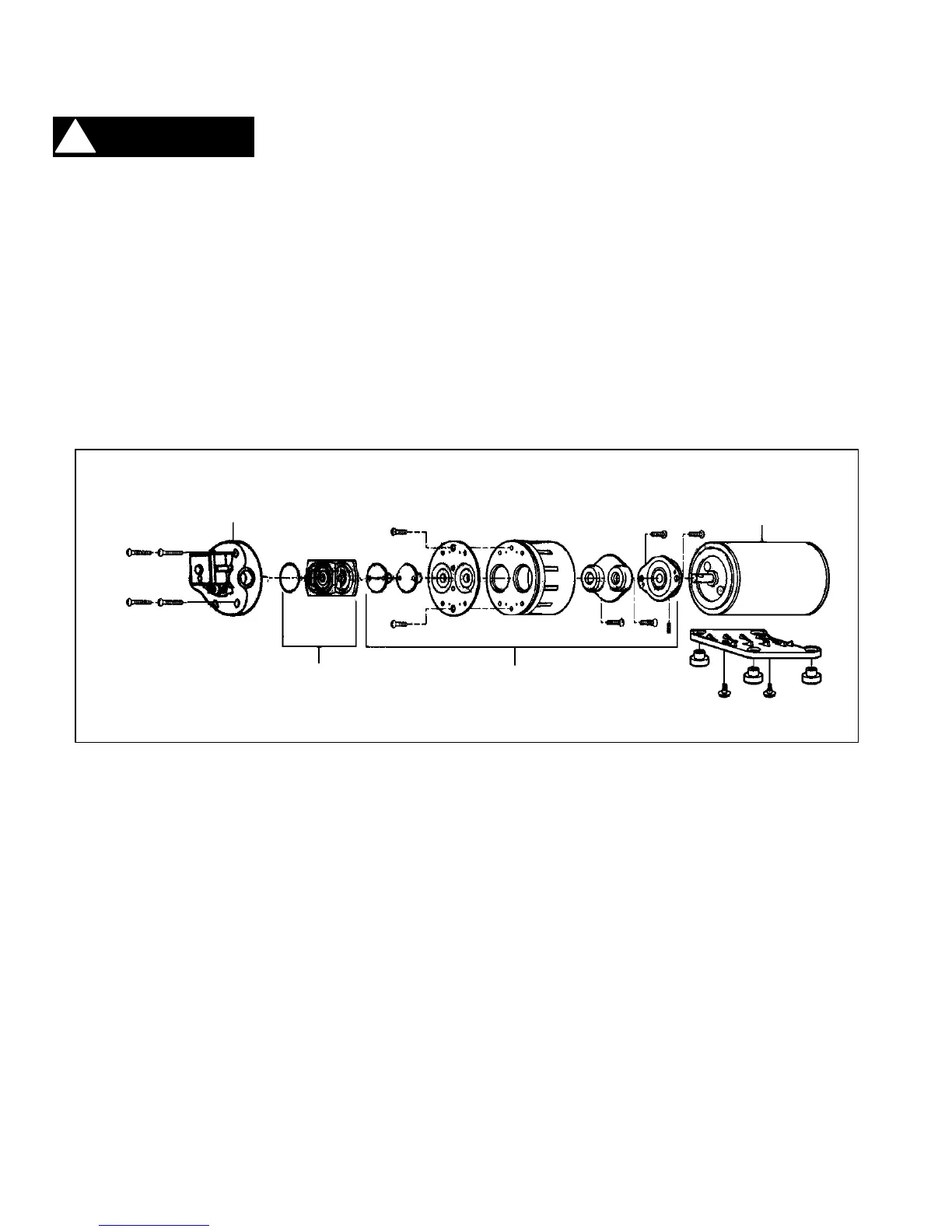

PUMP REPLACEMENT PARTS FOR FLOJET 100 PSI (65201)
Diaphragm
29219
Motor
53245
Valve Asm
84166
Pump Head
65204
