Windsor SENSOR S12 Maintenance Guidelines

8
Upright Vacuum
Call: 1-800-USA-CLEAN (800-872-2532) Click: www.usaclean.com Fax: 1-888-USA-CLEAN (888-872-2532)
Windsor Sensor
Replacing the Power Cord and/or Switch
These are general maintenance guidelines.
Please consult your owner’s manual prior to performing any repairs or maintenance on this machine.
**Before you begin: Turn the machine off and unplug it.

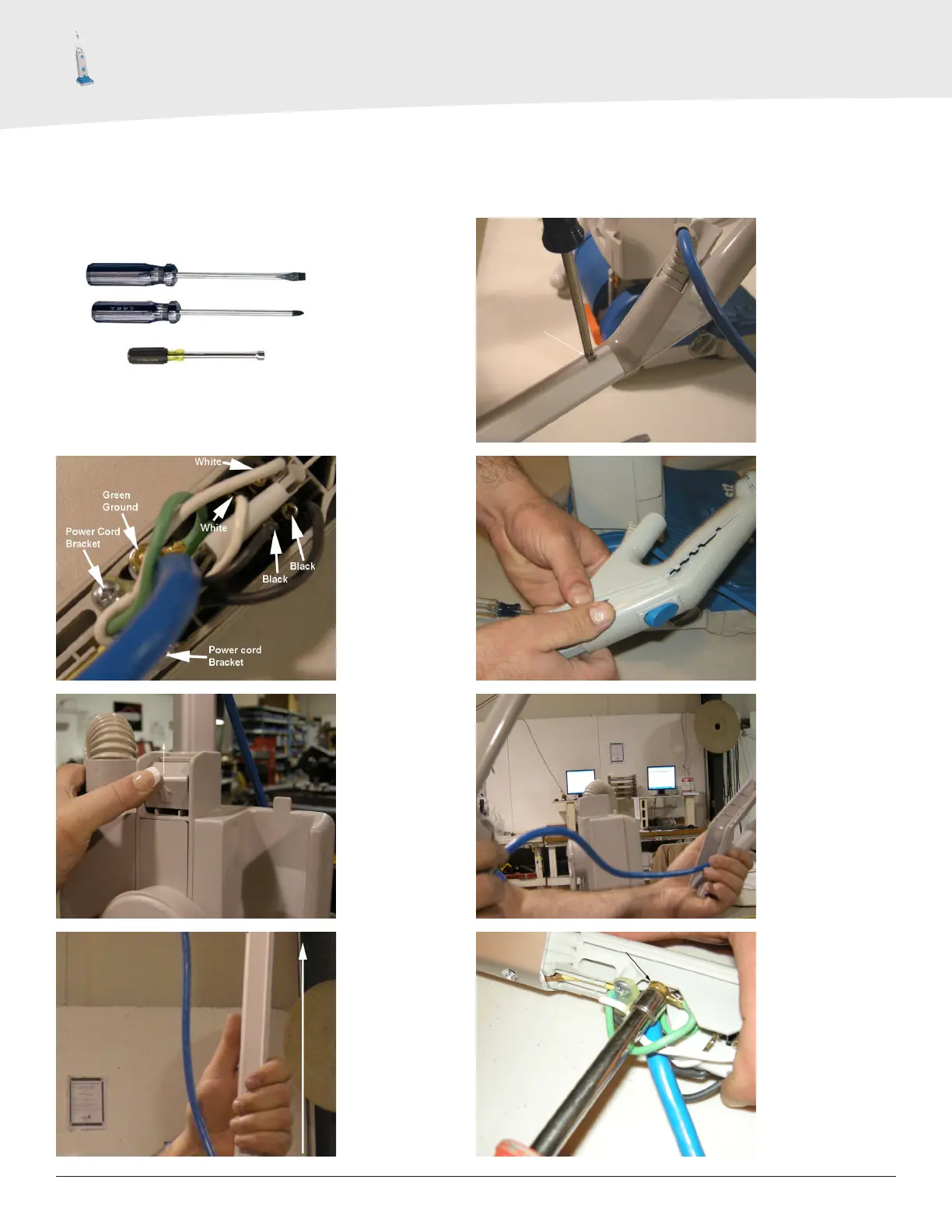

1. Refer to this
picture when
connecting a new
switch or power
cord.
2. Push the button
on the back of the
vacuum to release
the handle.
3. Pull the handle
up to remove it.
7. Using a #7 nut
driver, remove
the nut holding
the green wire in
place.
4. Using a Phillips
screwdriver,
remove the screw
from the back of
the handle.
5. Pull to separate
the front and back
of the handle.
Note: You may
need to use a
small at tip
screwdriver to
gently pry the
handle apart.
6. Pull the handle
apart to access
the power cord
and switch wiring.
Tools Needed
A. Flat tip
screwdriver
B. Phillips
screwdriver
C. #7 nut driver
