Windsor XP 12 - Preparation; Assembly Steps

-1 8

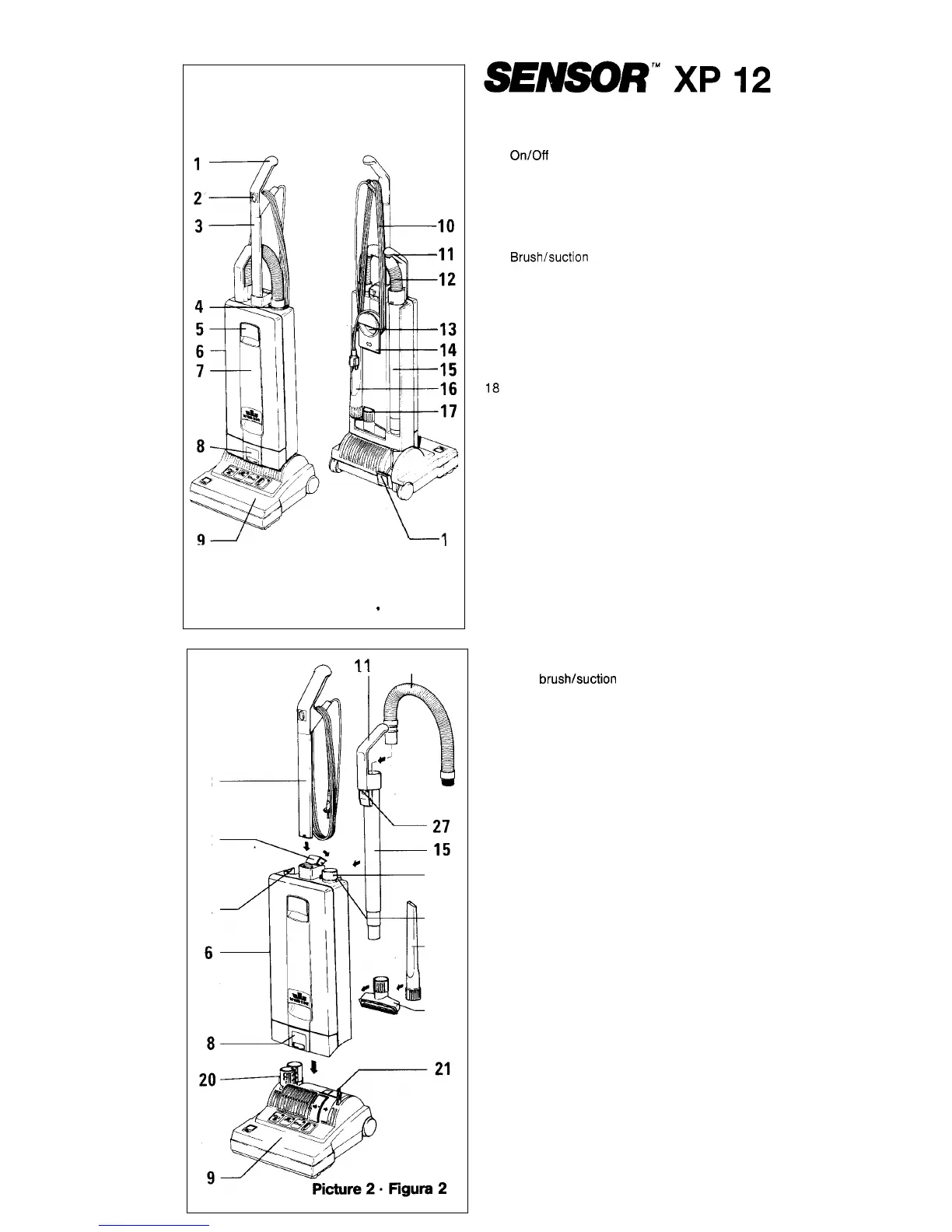

Picture 1 - Figura 1
n 11 12
3
22
24
26
4
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
ia
Handle grip
On/Off switch
Handle assembly
Retaining ring
Cover release
Dust bag housing
Cover
Housing release
Brush/suction Head
Cable
Telescopic handle grip
Hose
Carrying handle
Cable hook
Attachment tube
Crevice nozzle
Upholstery nozzle
Foot pedal
Preparation
Place the brush/suction head on a flat surface
with the neck (20) and the support lever (21)
upright. Hold the dust bag housing vertically
and place over neck and support lever. Push
firmly down
so that the housing release (8)
snaps closed.
Lift the catch (22) then slot the handle
assembly into the top of the dust bag housing
(6) and push firmly down.
When the handle has been pushed down as
far as it will go press catch (22) down. If the
handle is not pushed fully down the machine
will not work.
Insert attachment tube (15) into the channel at
the back of the machine. Locate the handle
grip (11) on the holder (24).
Push the black end of the hose into the
connecting tube
(26) so that it clicks into
place.
Insert crevice nozzle and upholstery nozzle
into the recesses in the back of the machine.
