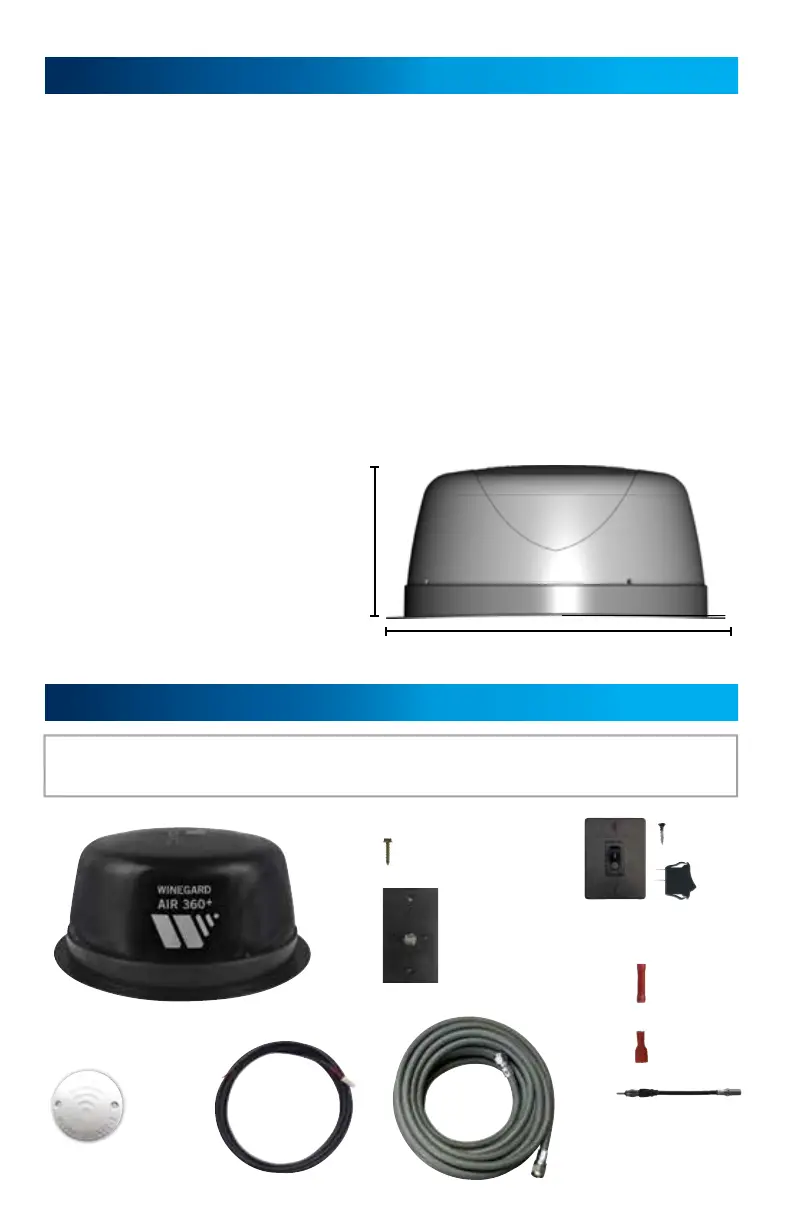

Winegard AIR 360+ - Product Details; Specifications and Features; Parts Included

Prewire
hole cover
Barrel crimp
splice
Power switch
into wall plate
Terminal
insulator (2)
Mounting
screw (10)
Coax to audio
cable
20' Coax
cable
10' Power
cable
Winegard
antenna power
supply/wall plate
w/hardware
Wall plate
screw (2)
Cable tie (1) not shown
–2–
Dome
Specifications/Features
• Designed for RV use
• Durable UV and weather resistant
• 360° Signal Reception
• High Definition VHF/UHF Digital
Signals
• ATSC 3.0 Ready
• Amplified
• State of the art pHEMT technology
with 4G LTE Filter
• Range – Up to 55 miles*
• Height – 8.05”
• Diameter of dome – 18.2”
• Frequency Range:
–
VHF 54 to 216 MHz
–
UHF 470 to 700 MHz
–
FM 87.5-108 MHz
• Gain – 18 dB
• Noise – 1 dB
• Impedance – 75 ohms
• Power Supply – DC 12V
• (1) WiFi antenna**
• (2) LTE antennas**
** For use with the Winegard Gateway
Parts Included
Tools needed for installing (not included) – Butyl Tape, Pencil, Scissors,
Hole Saw, Drill, Phillips Screwdriver, Crimping Tool, 18AWG Power Wire
*Antenna mileage figures based on
average terrain. Actual receiving distance
will vary based on transmitting power,
transmitting antenna tower height,
global pattern of transmitter, height of
receiving antenna, weather conditions, &
terrain between receiving path including
trees, buildings, hills, mountains, etc.
WINEGARD COMPANY
Tolerances
unless noted:
18.20
8.05
AIR 360 PLUS DIMENSIONS
TRADE SECRET
The information and data contained herein is secret and shall not be disclosed,used or duplicated
for any purpose whatsoever without written permission of WINEGARD COMPANY, 3000 Kirkwood ST.,
Burlington, Iowa 52601. This legend shall be marked on any reproduction hereof in whole or in part.
Reciept of this document shall be deemed acceptance of the conditions specified herein.
.XX
.XXX
HOLE
ANGLE
ECN NO. DATE REV DESCRIPTION BY
P/N: CONNECT_2_PREWIRE_BASE_DOME_2 DRAWN BY: D. NEUWEG
SCALE: 0.200 DATE: Mar-28-19
SHEET
1
of
1
DWG: AIR_360_PLUS_DIMENSIONS
8.05” Ht.
18.2” Dia.
