Winegard AIR 360+ - Installation Instructions; Safety Recommendations; Air 360+ In Dome Install

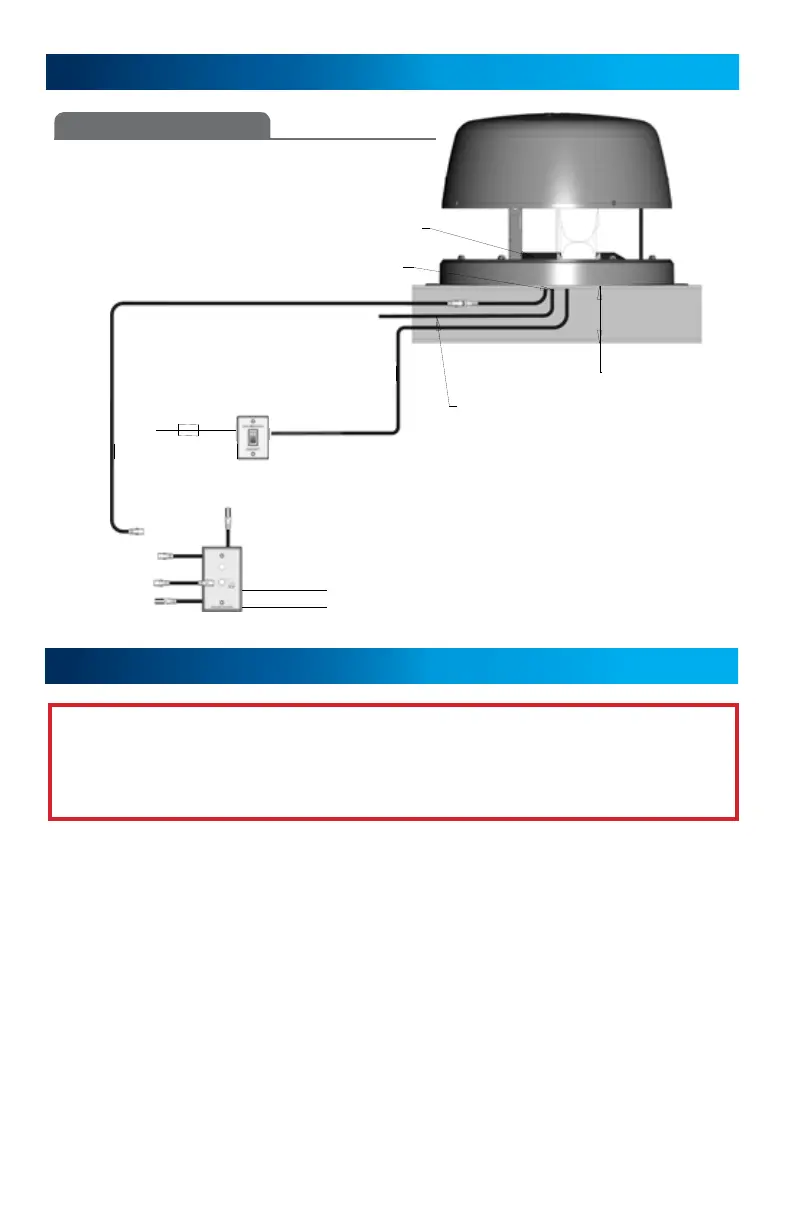

7" MAX ROOF THICKNESS
OPTION 4 - GATEWAY IN DOME
COMPATIBLE WITH ROOF RADIUS OF 230 INCHES TO FLAT
GATEWAY
1" HOLE IN ROOF
ETHERNET CABLE (OPTIONAL)
PARK CABLE IN
TV OUT 1
TV OUT 2
TO ANT IN
RED WIRE - TO SWITCH
BLACK WIRE - TO GROUND
+12V DC
GROUND
+12V DC
3A FUSE RECOMMENDED
OTA CABLE
WIFI POWER CABLE
ANT IN
–4–
Compatible with roof radius
of 230 inches to flat
Gateway
1" hole in roof
OTA cable
WiFi power cable
+12V DC
Red wire to switch
Black wire to ground
Ethernet cable (optional)
TV out 2
TV out 1
+12V DC
Ant in
Ground
7" max roof thickness
To Ant in
3A fuse
recommended
Park Cable in
Installation Instructions
Safety Recommendations
Do not attempt to install this system in the rain or under any wet conditions.
Do not paint this antenna. Painting the antenna will void the warranty.
Before mounting the antenna, determine locations for both the TV antenna
wall plate/power supply and Gateway wall plate/power supply. Keep in mind
the following:
• Coaxial cables will have to run from the power supply to the antenna and
from the power supply to each television.
• If using the Air 360
+
to receive FM stations, an additional coax cable
(not provided) will have to run from the wall plate to the coax to audio cable
(provided) and into the radio.
• Coax cables will have to be routed through the roof directly under the
perimeter of the antenna. It will not seal correctly for the cables to exit under
the flange. Failure to install correctly could cause damage to the antenna and
possibly the RV.
• A 12 V connection must be made to the back of both power supplies.
B. Air 360+ In Dome Install
