Winegard RM-EX02 User Manual

9
300
310
320
330
340
350
50
20
30
40
POINT NORTH
290
10
60
70
240
250
CAUTION!
After INITIAL INSTALLATION,
the antenna SHOULD ROTATE
APPROXIMATELY360°FROM
TRAVEL POSITION.
The pointer on the DIRECTIONAL
HANDLE should point towards the
RED SCREW ON THE ROTATION
CLAMP when in the TRAVEL
POSITION.

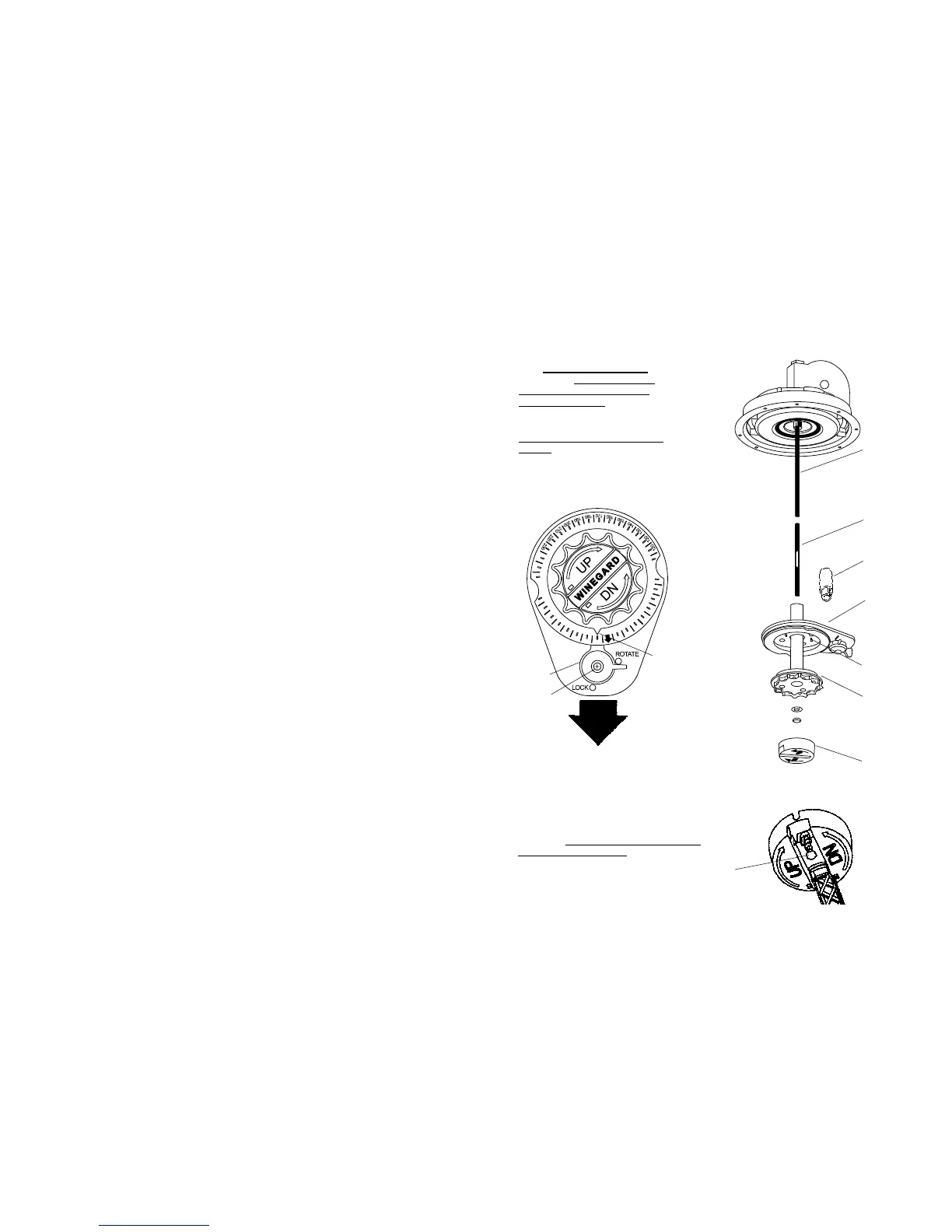

FIGURE 14
FIGURE 15
FIGURE 16
POINT TO
BACK OF RV
Pointer must
point to RED
SCREW at
CENTER OF
ROTATION
CLAMP when
in travel
position.
Rotation
Clamp
Red Screw
Elevating Shaft
Threaded Tube
Directional Handle
Extension
Ceiling Plate
(4) #10 Phillips
Flat Head Screws
Directional
Handle
Elevating Crank
Handle
(When installed,
extends 2-1/4”
from ceiling.) Snap
Handle into base
when not in use.
ALIGN POINTER
WITH ANTENNA
TRAVEL POSITION
CAUTION!
The antenna MUST BE IN THE TRAVEL
POSITION before aligning the directional
handle and ceiling plate!
TIGHTEN SCREW SNUGLY!
ASSEMBLED VIEW
See template on reverse side.
9

Winegard RM-EX02 Specifications

Frequency and Gain

frequency range	10.95 - 12.75 GHz
gain at 11.2 GHz	33.22 dBi
gain at 12.1 GHz	33.89 dBi
gain at 12.6 GHz	34.23 dBi

Weight and Dimensions

height when raised	30”
height in the travel position	8”
operating radius	17”
roof space required	26”
antenna height	20.9”
antenna width	19.2”
weight	12 lbs
ship weight	20.6 lbs
