STEP 11: Select location for wall plate. Run two
coax cables (RG-6 type recommended) (three if set 2
jack is going to be used) between locations and install
connectors on each end. Mark cables so "cable
input", "TV output" "Set 2" may be identied.
Antenna downlead and +12 VDC will also be needed
at inside wall plate/power supply location.
STEP 12: The wall plate/power supply assembly
may be ush mounted in most standard electrical
boxes. To ush mount cut a hole in wall to t the box.
Run 2 #12 wires between wall plate/power supply
and +12 VDC source and route downlead cable to
this location.
CAUTION
THE POWER SUPPLY SHOULD BE TURNED OFF
WHEN CONNECTING CABLES/WIRES TO POWER
SUPPLY. SEE FIGURE 14.

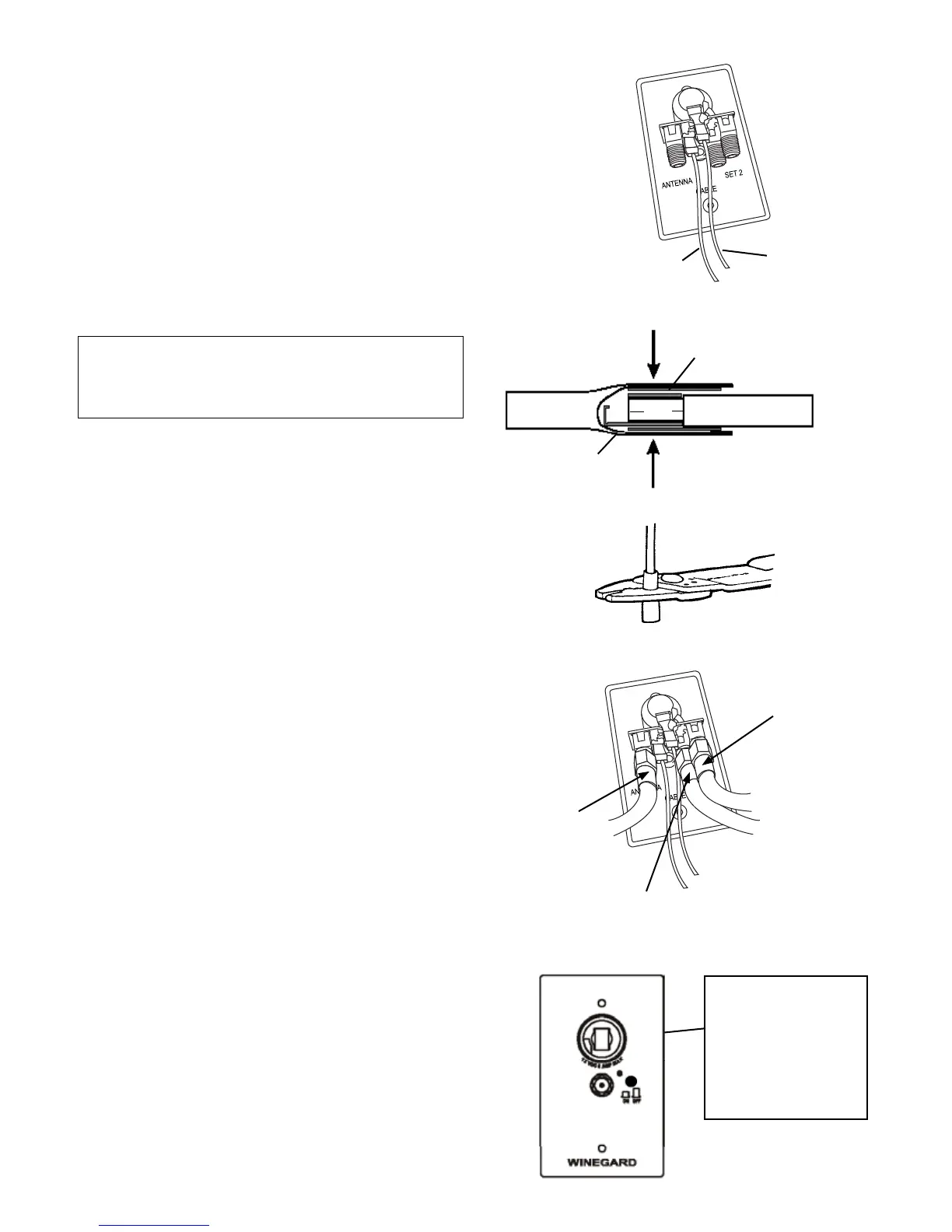

STEP 13: Make 12 volt connection to wall plate/
power supply, Figure 10. Install terminals on wires
from +12 VDC source, Figure 11. Crimp terminals
with appropriate crimping tool or equivalent, Figure
12. Push wires onto tabs on terminal board as shown
in Figure 10. If in doubt as to the polarity of the wires,
connect them temporarily to tabs on circuit board and
press ON switch on front of wall plate; if light comes
on, polarity is correct, Figure 10.
STEP 14: Install connectors on downlead, set 2 and
cable input cables as shown on page 6. Attach down-
lead cable to jack on wall plate/power supply marked
antenna, Figure 13. Attach cable going to set 2 output
to jack on power supply marked SET 2. Attach cable
coming from cable input to jack on power supply
marked CABLE.
STEP 15: Mount power supply in wall with screws
provided and attach TV set cable to jack on front of
power supply/wall plate. Press ON switch on front of
wall plate and check that light is on, Figure 14.
CHECKING OPERATION OF POWER SUPPLY
1. Tune TV receiver to nearest station and rotate
antenna for best picture and sound.
2. Press OFF switch on power supply. Picture on TV
should be considerably degraded with power off.
3. This unit is equipped with a polyswitch, (current
limiting device), which will shut down +12 VDC if
there is a direct short between antenna and power
supply. Green indicator light will not light. Once short
is eliminated, device will reset itself.
ADDING OPTIONAL AMPLIFIED WALLPLATE TO
NON-AMPLIFIED RV/TV INSTALLATION
Model RA-7596 solid state TV signal amplier works
with any non-amplied RV/TV antenna. Improves
picture quality. Uses +12 VDC; has on/off switch,
indicator light, set 2 output, cable input and +12 VDC
receptacle.
-12 VDC
(Ground)
FIGURE 12
FIGURE 13
FIGURE 14
WARNING
DO NOT connect high
current devices such
as hair dryers to this
receptacle. Maximum
current rating of this
receptacle is 8 amps at
+12 VDC.
FIGURE 11
Connector
Ferrule
Crimp Here
1/4" #12 Wire
Remove 1/4" of insulation
from #12 wire.
Connector
Insulation
FIGURE 10
+12 VDC
