WINEMASTER WineARM15 - Fitting the Air Conditioner; Fitting from Inside the Wine Cabinet; Fitting from Above

VERSION 2.0 01/03/2017
USER GUIDE WINEARM15 Page 8
2.2. Fitting the air conditioner
2.2.1. Fitting the air conditioner from the inside of the wine cabinet
The air conditioner can be placed in the ceiling from inside the cabinet and locked with the 4 rotary tabs integrated
in the air conditioner.
Install the air conditioner in the cutout Rotate the 4 tabs
Screw with the supplied 4 x 6 screws
2.2.2. Fitting the air condition from above

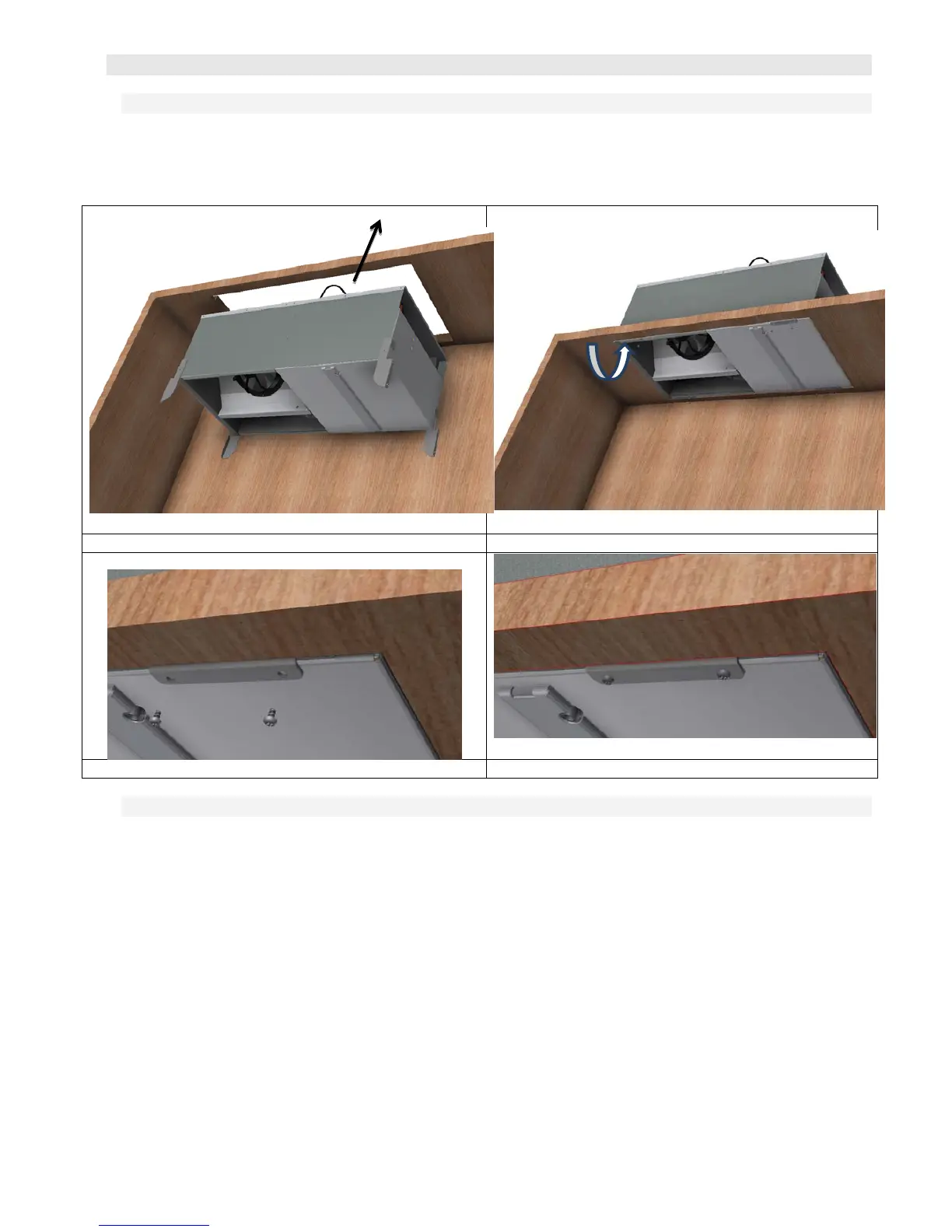

In the case of a top installation, it is possible to disassemble the 4 rotary tabs used to hold the air
conditioner and to use the brackets supplied.
2
3
4
5
