9-5
SECTION 9 –
FURNITURE AND SOFTGOODS

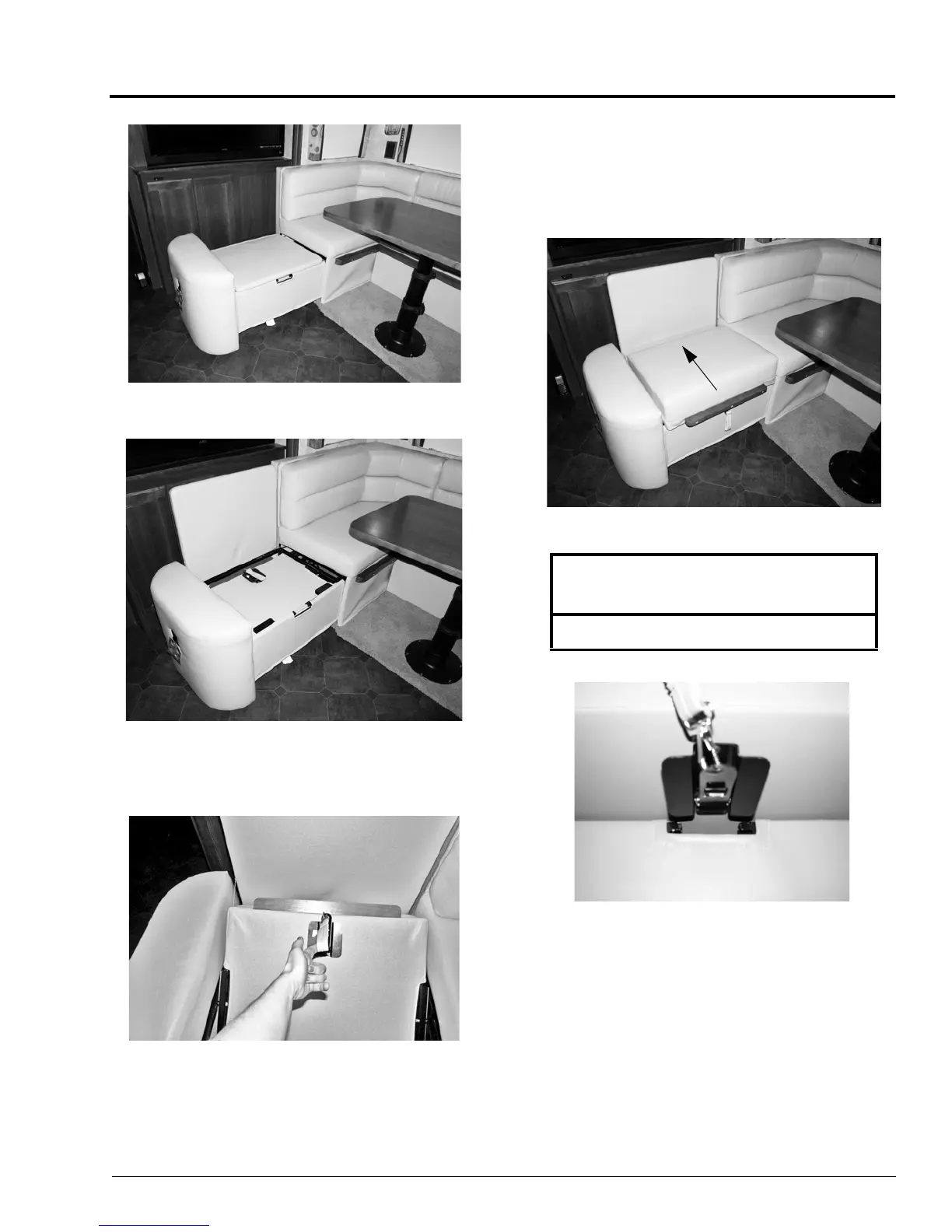

2. Flip seat back support upright.
3. Grasp the pull strap (located on the back side
of the sectional extension seat cushion) and
pull UP and OUT.
4. Push front of seat cushion rearward to secure
into seated position, ensuring the bracket on
the underside of the seat cushion engages with
the metal catch on the front side of the dinette
sectional extension.
5. Install seat back cushion, ensuring the back
slip cover slides over top of the seat back to
secure.
NOTE: Seat back cushions are stored beneath
rear bed.
NOTICE
Engage bracket to prevent damage.
