SECTION 5
DASH / AUTO
5-2
If your motor home is equipped with this
optional system, refer to the Owner InfoCase for
further instructions provided by manufacturer.

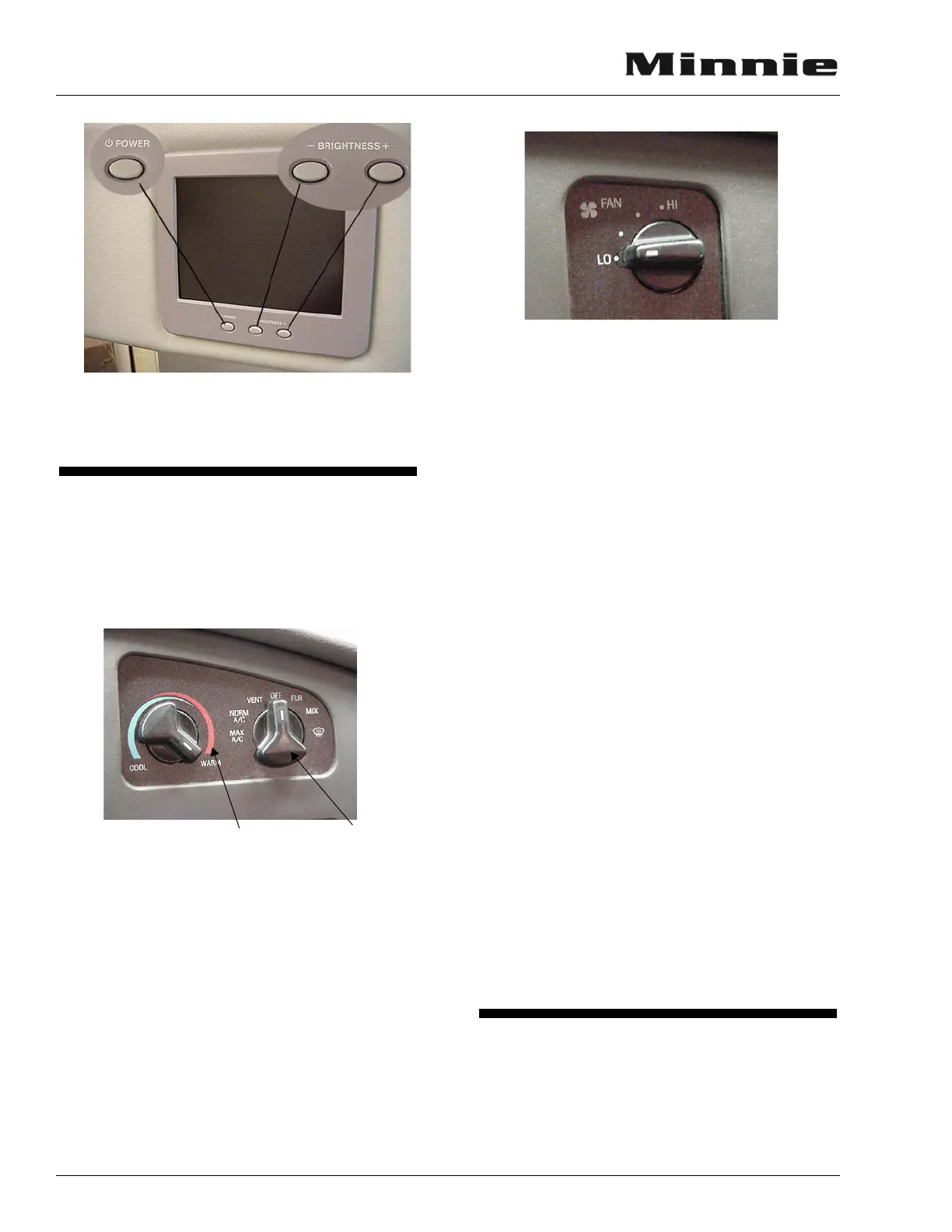

COMFORT CONTROLS
Controls for the air conditioner, heater, de-
froster and vent are all combined into one control
panel. Refer to the following instructions for use
of individual controls.
FAN SWITCH - Smallest dot is lowest air
movement; Largest dot is maximum air move-
ment. Fan will run at set speed when mode knob
is in any position except Off. When mode knob is
set to Off, the fan will not run.
TEMP CONTROL - Blue = Cold / Red = Warm
Mode Selector Positions:
Max A/C - Cab air is recirculated (and re-cooled)
through air conditioner.
Norm A/C - Directs outside air through air con-
ditioner cooling fins to reduce cab temperature.
NOTE: The dash air conditioner is not designed
to cool the entire interior of the coach,
but is intended to cool the cab area only.
Vent - Directs outside air through dash vents. In-
coming air temperature can be adjusted using
temp control knob, although cooling is limited to
a few degrees above ambient outside air temper-
ature.
Floor - Directs most air to floor vents and small
amount to windshield defrost vents.
Mix - Splits air between floor and windshield de-
frost vents.
Def - Directs most air to windshield defrost vents
and small amount to floor vents.
Off - When no heating, cooling or ventilation are
required; closes all air dampers and turns fan off.
BATTERY BOOST SWITCH
This switch can be used to provide emergency
starting power from the motor home auxiliary
battery if the automotive battery is dead.
Temp
Control
Mode
Control
