10-7
SECTION 10
PLUMBING SYSTEMS
10 - PLUMBING SYSTEMS

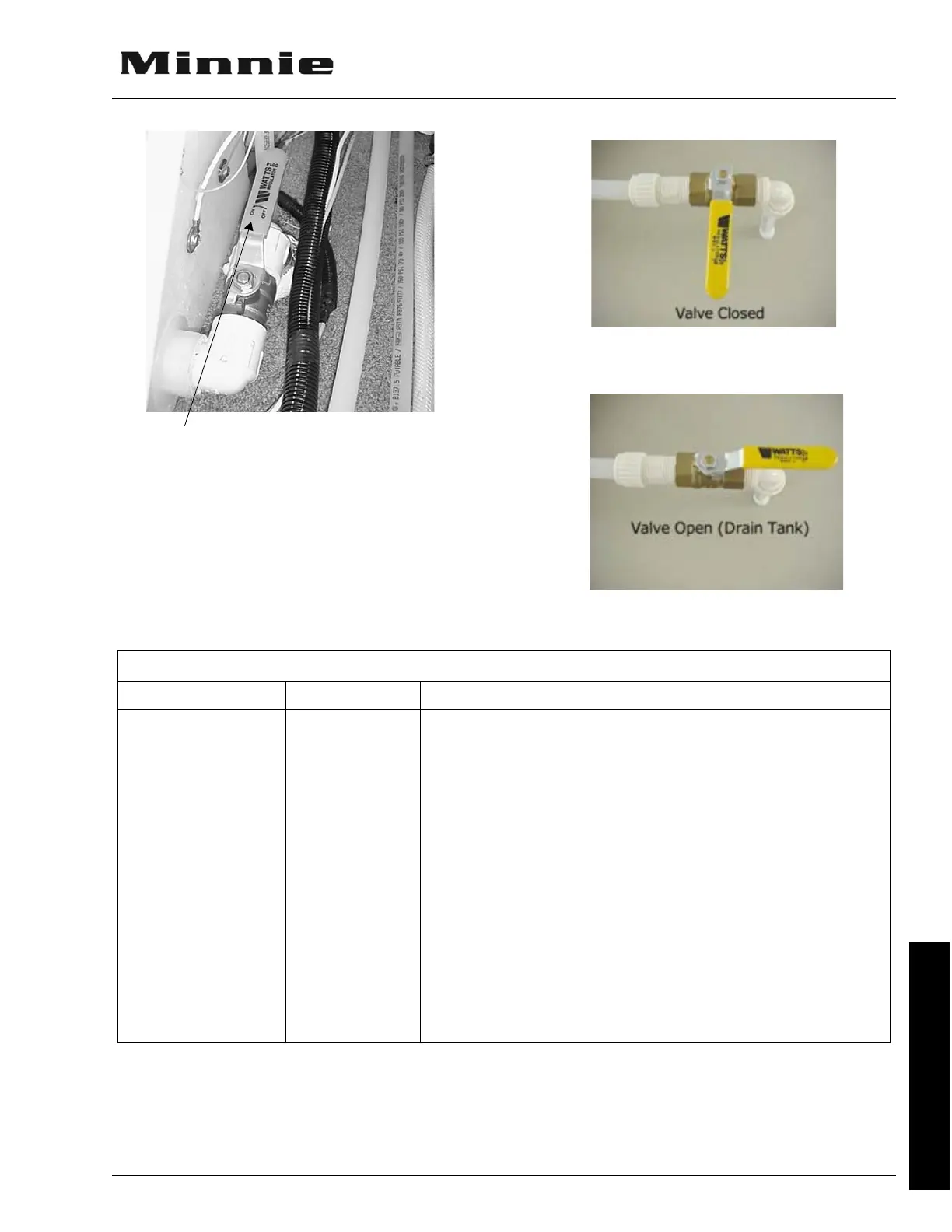

Water Tank
Drain Valve
Water Tank Drain Valve (Typical)
Under Rear Bed or Couch
WATER SYSTEM DRAIN VALVE LOCATIONS
MODEL SYSTEM DRAIN VALVE LOCATIONS
322R Water Lines:
Water Tank:
Water Heater:
Water Heater
By-Pass Valve:
Winterization
(Antifreeze)
Valv e:
Two (2) valves beneath front dinette seat. Lift seat board to
access. Two (2) valves behind the removable face panel of
the shower pan base.
One (1) valve beneath couch. Lift couch seat to access.
Drain plug on outside of coach, behind service door. Use
socket to remove drain plug.
Beneath front dinette seat. Lift seat board to access.
Beneath couch. Lift seat cushion frame to access.
