SECTION 13
SLIDEOUT ROOM
13-4

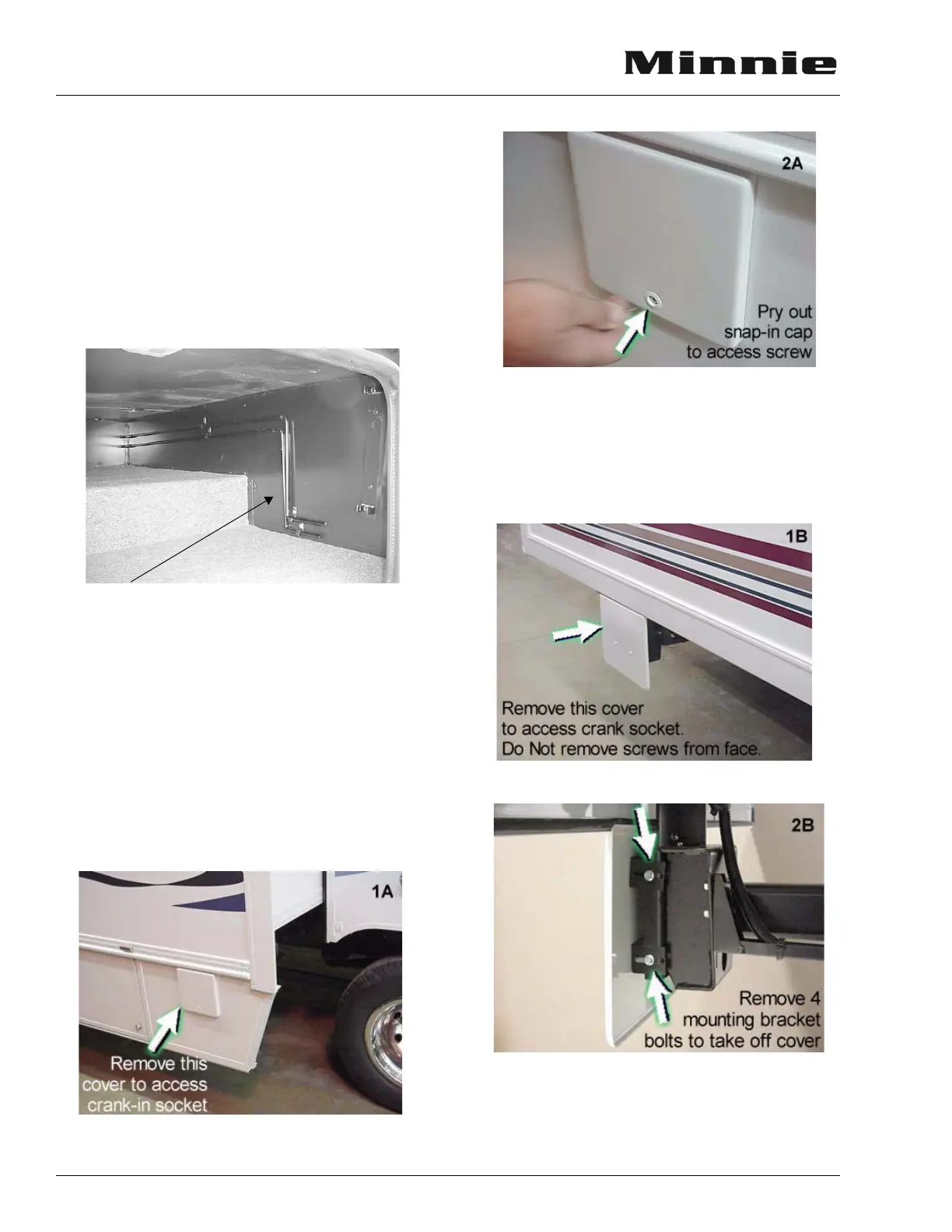

In the event of a total system failure where
Manual Mode cannot be used, two crank handles
may be used to retract or extend the room.
Crank-In Mode:
If the room will not retract using the buttons
and the mechanism is apparently malfunctioning,
you may need to manually crank the room in to
the travel position. The cranks are stored on clips
on the wall of the right rear cargo compartment.
The crank sockets are located behind covers
on the lower portion of the room on the outside of
the coach. Your coach may have one of the two
types of covers shown.
Type A - Twin Arm - covers on lower face of
room (photo 1A): Pry out the snap-in screw cover
(photo 2A) and remove the screw to take off the
cover plate. The crank socket is shown in photo
3.
Type B - Single Arm - cover mounted beneath
face of slideout room: Remove the four bolts that
fasten the cover to the arm - two on each side.
The crank socket is shown in photo 3.
Insert the crank handle into the socket and
align the notches in the crank handle with the
pins on the drive shaft as shown in photo 3.
Slideout Cranks
