SECTION 7 –
PLUMBING

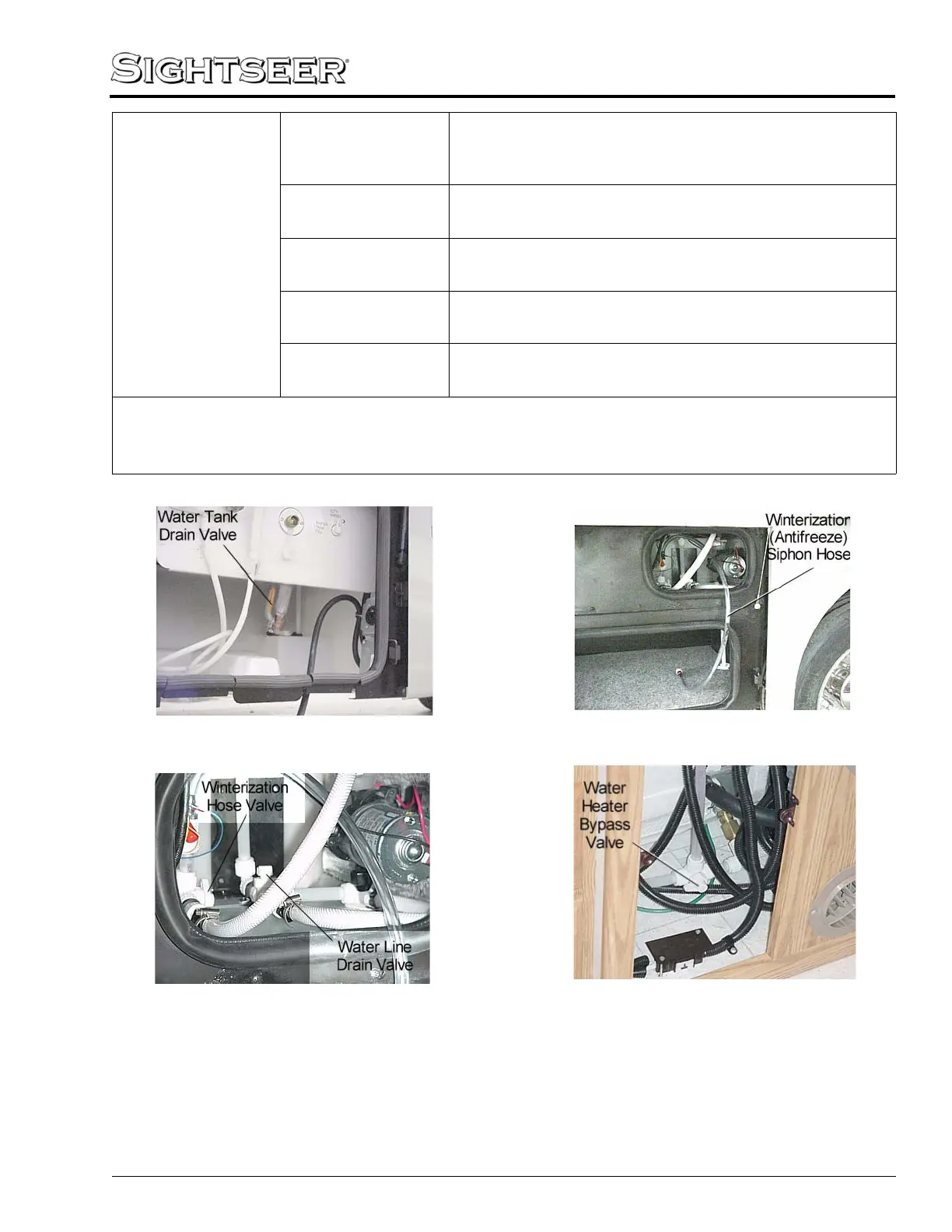

31E Waterlines Inside utility compartment in passenger side rear cargo
compartment and open exterior shower. See photo
below.
Water Tank Large yellow-handled valve in utility compartment. See
photo below.
Water Heater Drain plug on outside of coach, behind service door. Use
socket to remove drain plug.
Water Heater
Bypass Valve
In wardrobe cabinet. Remove two lower rear drawer
faces. See photo below.
Winterization
(Antifreeze) Valve
Inside pump compartment in passenger side rear cargo
compartment. See photo below.
NOTE: If your unit does not have the exterior shower feature, there will be two waterline drain valves
behind the service panel in the driver side compartment behind the rear wheel. This is for all
units.
Typical Installation
Models 31E and 33C shown
Models 31E and 33C shown
Typical Installation
