SECTION 8 –
ENTERTAINMENT
8-4
2. Turn ON the Signal Meter Power switch
(located on the side of the Signal Meter).
3. Rotate the Attenuator Dial fully
CLOCKWISE.
4. Press Release Button on the Rotational Knob
and rotate antenna (until maximum number of
LED lights illuminate on the Signal Meter).
NOTE: LED lights will illuminate from left to
right. All LED lights may not illuminate,
depending on signal strength.
5. Rotate Attenuator Dial COUNTER-
CLOCKWISE until the last illuminated LED
light flickers.
6. Rotate antenna to illuminate the last flickering
LED light.
7. Repeat Steps 5 and 6 to pinpoint signal
reception.
NOTE: Refer to television manufacturer’s
instructions to scan for available
channels.
Further Information
See the antenna manufacturer’s user guide
provided in your InfoCase for complete operating
and maintenance information.
TV SIGNAL AMPLIFIER
The TV Signal Amplifier is built into the
antenna and can be turned on or off with a power
switch located on a switchplate near the
entertainment center cabinet.
An indicator light will illuminate when the
switch is on and the signal amplifier is active.
CABLE TV AND PORTABLE
SATELLITE CONNECTIONS
The cable television and portable satellite dish
input connections are located in the utility
compartment.

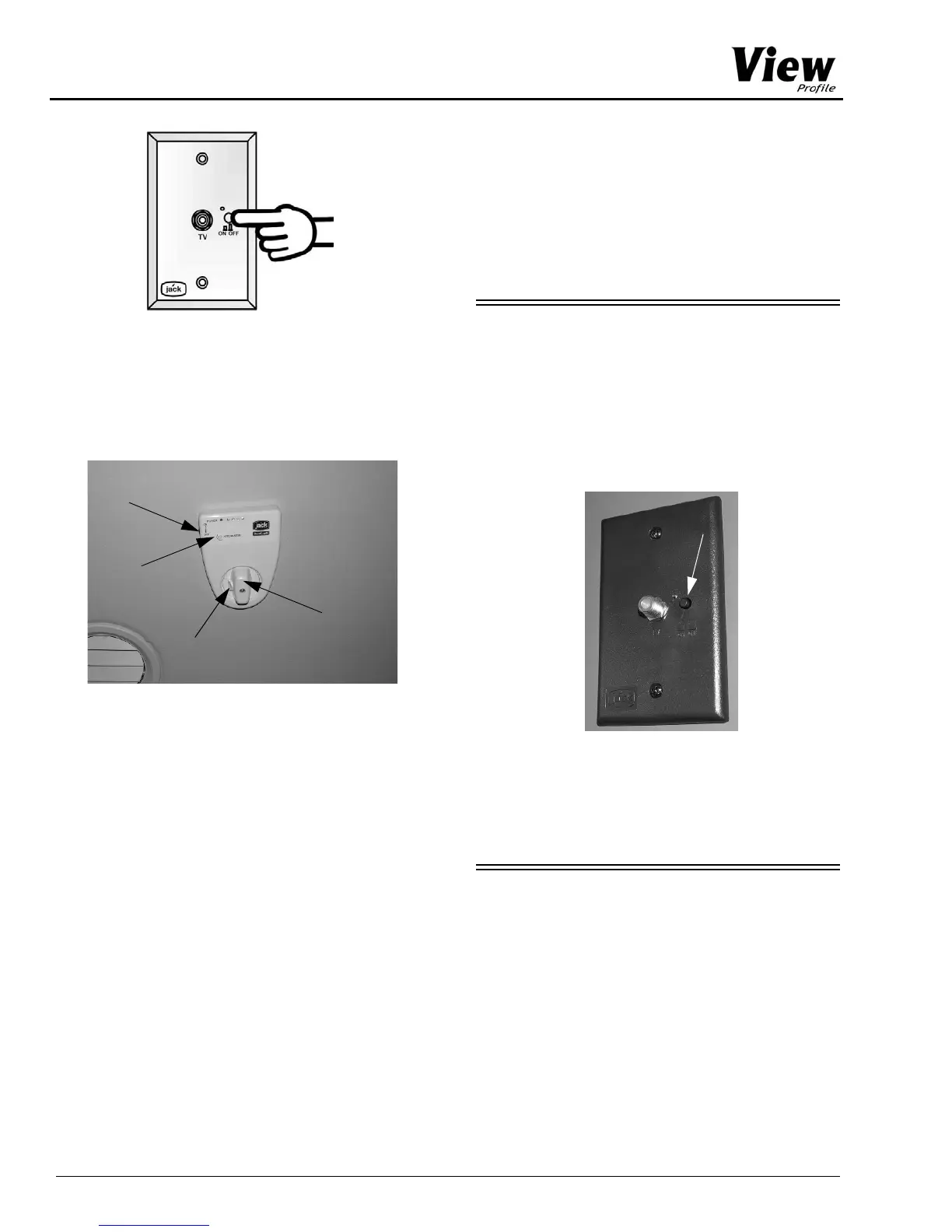

Digital Antenna Power Switch
(Located in an overhead cabinet or
mounted on a wall near the TV)
Digital Antenna Signal Meter
(Located on ceiling)
• Signal Meter
Power Switch
• Attenuator
Dial
• Release
Button
• Rotational Knob
(arrow indicates
which direction
antenna is pointing)
TV Signal Amplifier Power Switch
(Located near entertainment center cabinet)
-Typical View
Power
Switch
