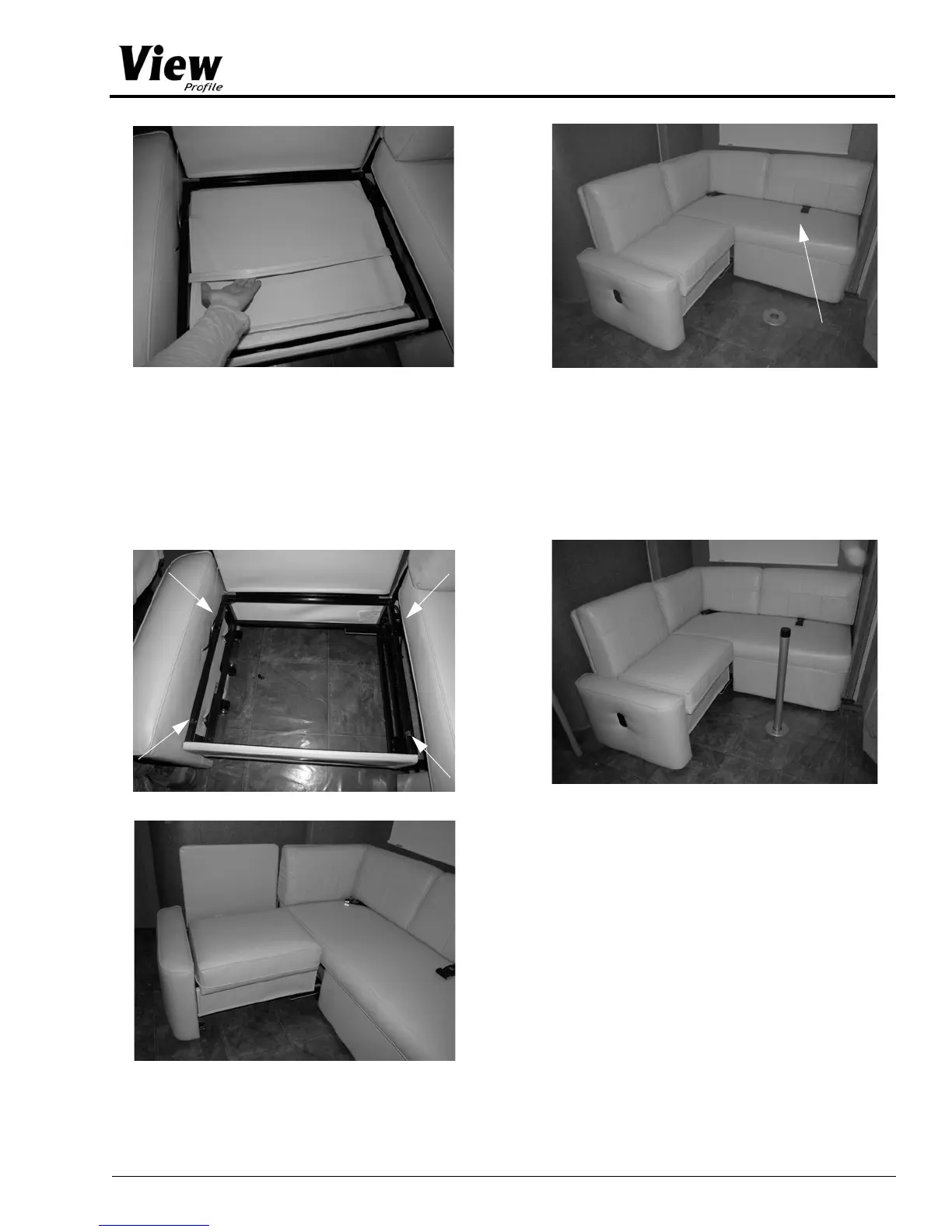

4. Turn seat cushion over and reinstall onto
sectional frame, ensuring the four
engagement pins (one located on each corner
of the cushion) are firmly seated into the four
notches (one located on each corner of the
sectional frame, as shown in the following
photo).
5. Install seat back cushion (stored beneath front
dinette cushion).
6. Remove dinette table and pedestal leg from
rear wardrobe cabinet.
7. Insert dinette pedestal leg into metal receiver
in the floor.
NOTE: Slideout must be extended to access the
metal receiver.
8. Place dinette table onto the pedestal leg,
ensuring the receiver on the bottom of the
table is fully seated on the pedestal leg.
NOTE: The driver seat may be rotated for
additional dinette seating. Refer to the
chassis manual provided in your
InfoCase for further information.
