3

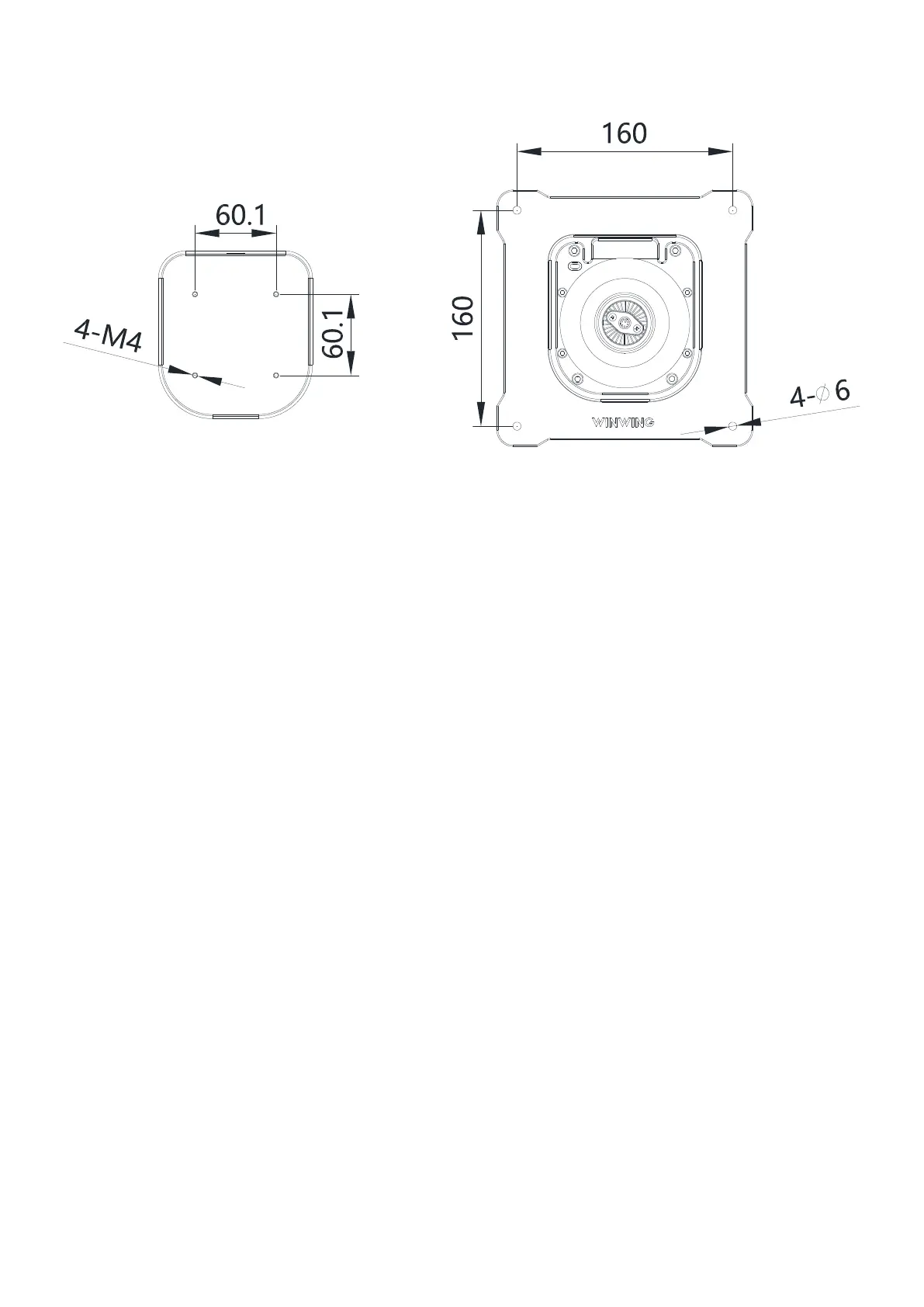

1.4 Installation dimension
Available installation holes:
4-∅6 间距为 160*160。
The space of 4-M4: 60.1mm*60.1mm ;
The space of -∅6: 160* 160.
