3.4 Movable multiple force sensor mode
Please refer to
EX2-J2-2 User Manual
.

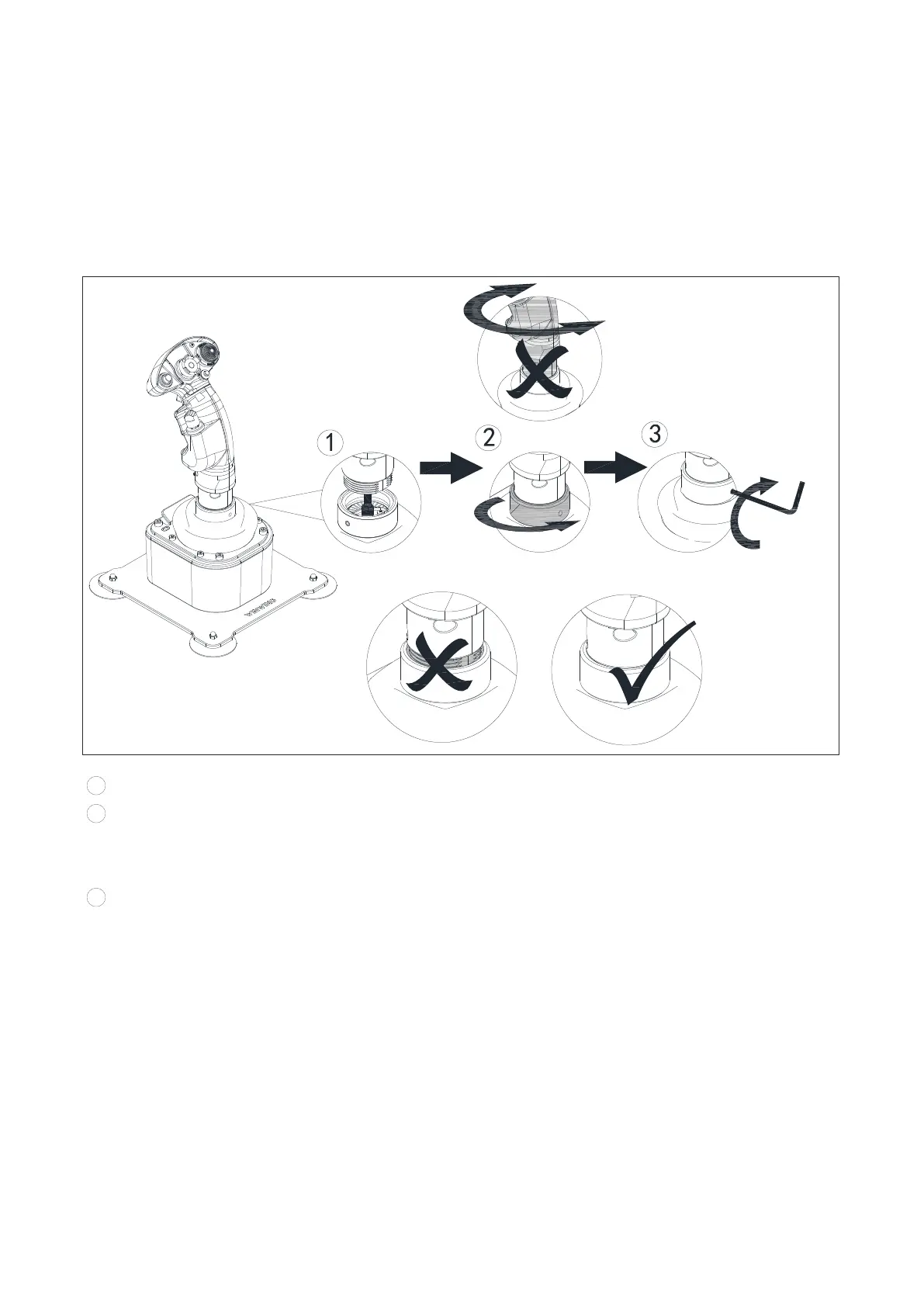

4 Assembly methods
4.1 Devices connection
1
Align and insert the PS2 connector into the base.
2
Twist the knurled cover in the figure counterclockwise, and screw holes should be
roughly aligned with the seam of the grip when tightening (Only twist the knurled cover during
disassembly, otherwise the cable will be damaged)
3
Use a wrench to tighten jack screw clockwise.
Note: Please reverse the steps above when dissembling.
