7. Hardware

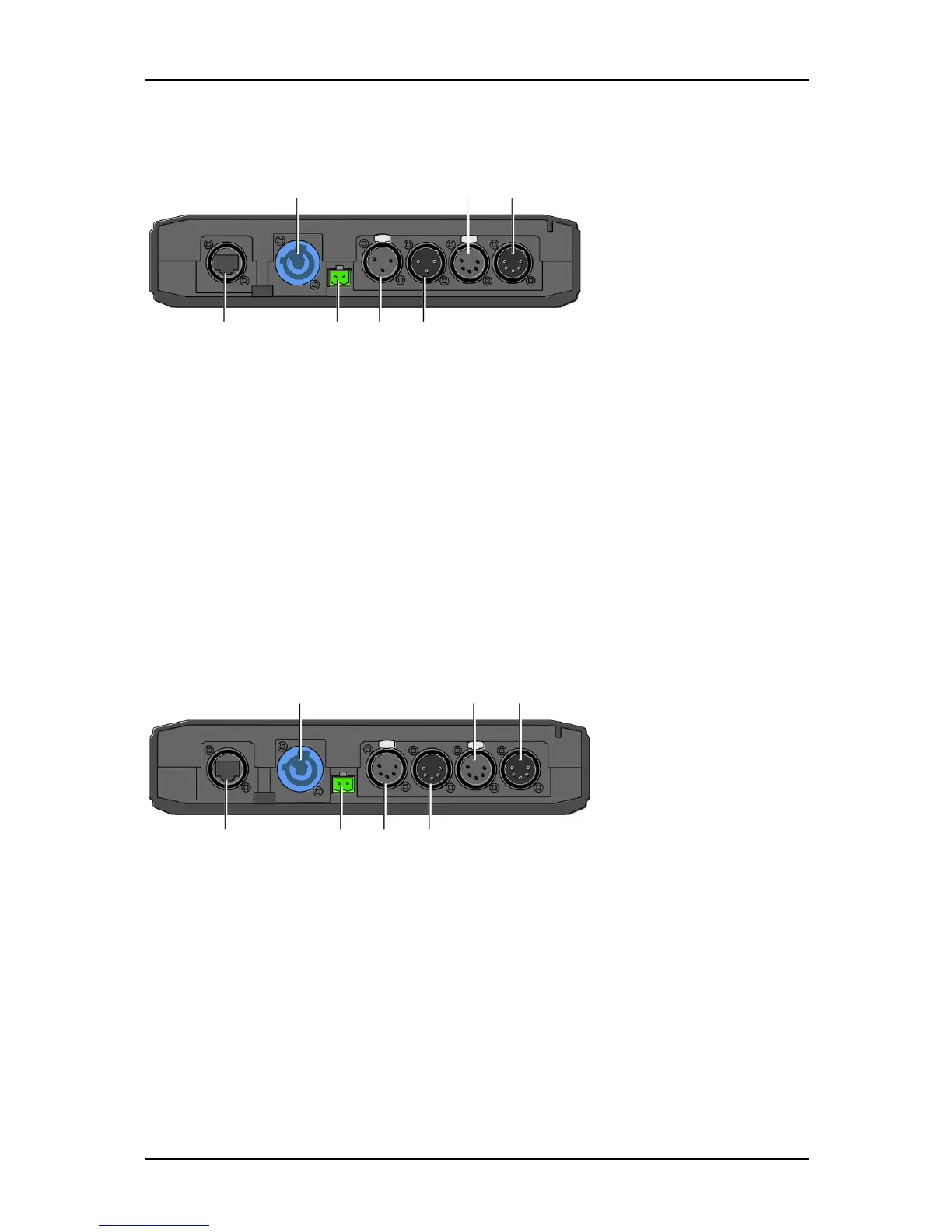

7.1. BlackBox Series
1.
AC Power Supply connector, standard PowerCon® 20A
U
ac
=110-240V / 50-60 Hz (for other voltage and frequency options, contact manufacturer)
2.
EtherCon RJ45 port
NOTE
Ethernet port and power-over-ethernet power supply. Options to be purchased separately –
contact manufacturer.
3. XLR female 5 pin [Universe 1 or Universe 2 in Double-Up Mode]
4. XLR male 5 pin [Universe 1]
5. XLR female 3 pin [Universe 2 in Double-Up mode]
6. XLR male 3 pin [Universe 1]
7. DC Power Supply Connector, Standard 5.08mm
NOTE
12V DC power supply [ Polarity marked on the box ] ±20%, reverse polarity protected. Please
use a UL/ETL certified power supply. Limited power supply (LPS) rated 12VDC, 1.25A max. (to power
from 12V batteries, contact manufacturer)
7.1.1 BlackBox F-2 Double-Up explained
G3/G4S/G5 Mode:
1. Universe A In
2. Universe A Out
3. Universe B In
4. Universe B Out
Double-Up Mode:
1. Universe 1 In/Out
2. Universe 2 In/Out
3. Universe 3 In/Out
4. Universe 4 In/Out
7.1.2 Contents included
When you purchase a new BlackBox, the following items are included:
• BlackBox device (R-512, F-1 or F-2)
• User Manual
• Antenna Adapter [90 Deg]
• 3dBi Antenna
• Mounting brackets
• DC connector
Working Temperature:
-10º to 45º Celsius, storage temperature -20º to 50º Celsius. Max. humidity
80% (non-condensing). For working conditions outside this limit, contact manufacturer.
Dimensions:
W x D x H: 260 x 210 x 70 mm [10.2” x 8.3” x 2.8”] |
Net:
1 Kg [2.2 lb.]
NOTE
Power cable is not included.
