Wireless Solution W-DMX G5 - WhiteBox Series

User Manual - English
16

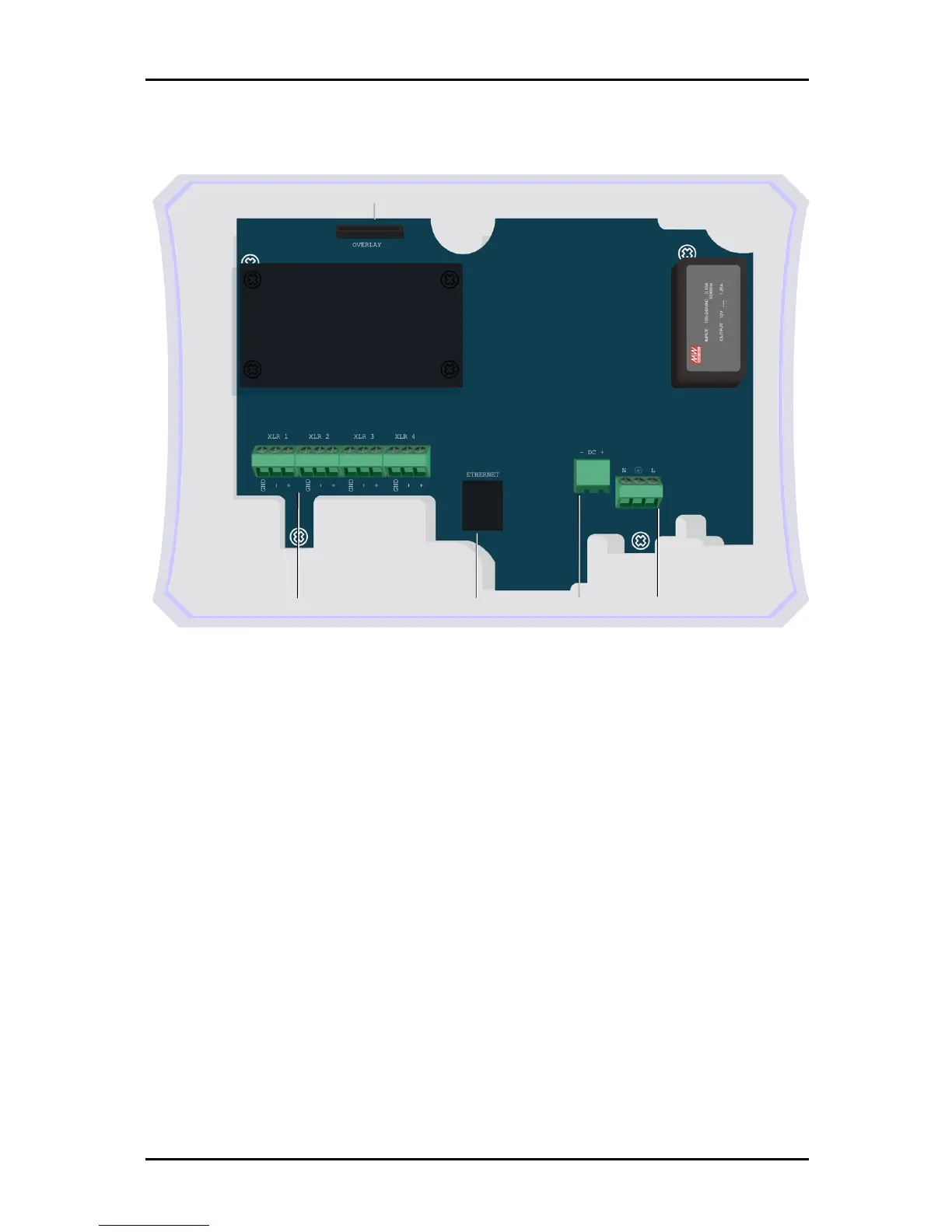

7.2. WhiteBox Series
1. Overlay connector
2. DMX input and/or output
3. Ethernet RJ45 port
NOTE
Ethernet port and power-over-ethernet power supply. Options to be purchased separately –
contact manufacturer.
4. DC Power Supply Connector, Standard 5.08mm
NOTE
12V DC power supply [ - / + ] ±20%, reverse polarity protected from UL/ETL certified, limited
power supply (LPS) rated 12VDC, 1.25A max. (to power from 12V batteries, contact manufacturer).
Please note the nominal copper wire diameter for the 12V connector is 2.5mm2, or a minimal diameter
of 0.5mm2.
5. AC power input
U
ac
= 110-240V / 50-60 Hz (for other voltage and frequency options, contact manufacturer)
N / EARTH / L
Nominal copper wire diameter (single or multiple) for the 220V connector is 1.5mm2 – minimal is
0.5mm.
7.2.1 WhiteBox Double-Up explained
G3/G4S/G5 Mode:
XLR 1. Universe A In
XLR 2. Universe A Out
XLR 3. Universe B In
XLR 4. Universe B Out
Double-Up Mode:
XLR 1. Universe 1 In/Out
XLR 2. Universe 2 In/Out
XLR 3. Universe 3 In/Out
XLR 4. Universe 4 In/Out
2
4
5
3
1
