4
Quick Start:
1. Prewire speaker wires to each location.
2. Install SUB1 cabinet (for SUB1 locations only) to ceiling joists using included L-brackets.
3. Attach ICS3-Backbox to Mounting Platform (for ICS3 locations only).
4. Attach Mounting Platform to ceiling joists.
5. Connect speaker wires.
6. Connect SUB1 Bass-Snorkel (for SUB1 locations only), do not shorten the tube.
7. Install rest of drywall and tape, spackle, mud, sand and finish to Level 5 finish (Level 5 Finish at www.usg.com)
8. Remove Sanding Guide and paint ceiling with Paint Shield in place.
9. For SUB1, use Paint Shield to adjust grille depth, remove Paint Shield and install grille. SUB1 is complete.
10. For ICS3, remove and keep Paint Shield, remove SUB1 grille catch. Install ICS3-SPMD (Spiral Planar Magnetic Driver). Re-install
Paint Shield to adjust grille depth, remove Paint Shield and install grille. ICS3 is complete.

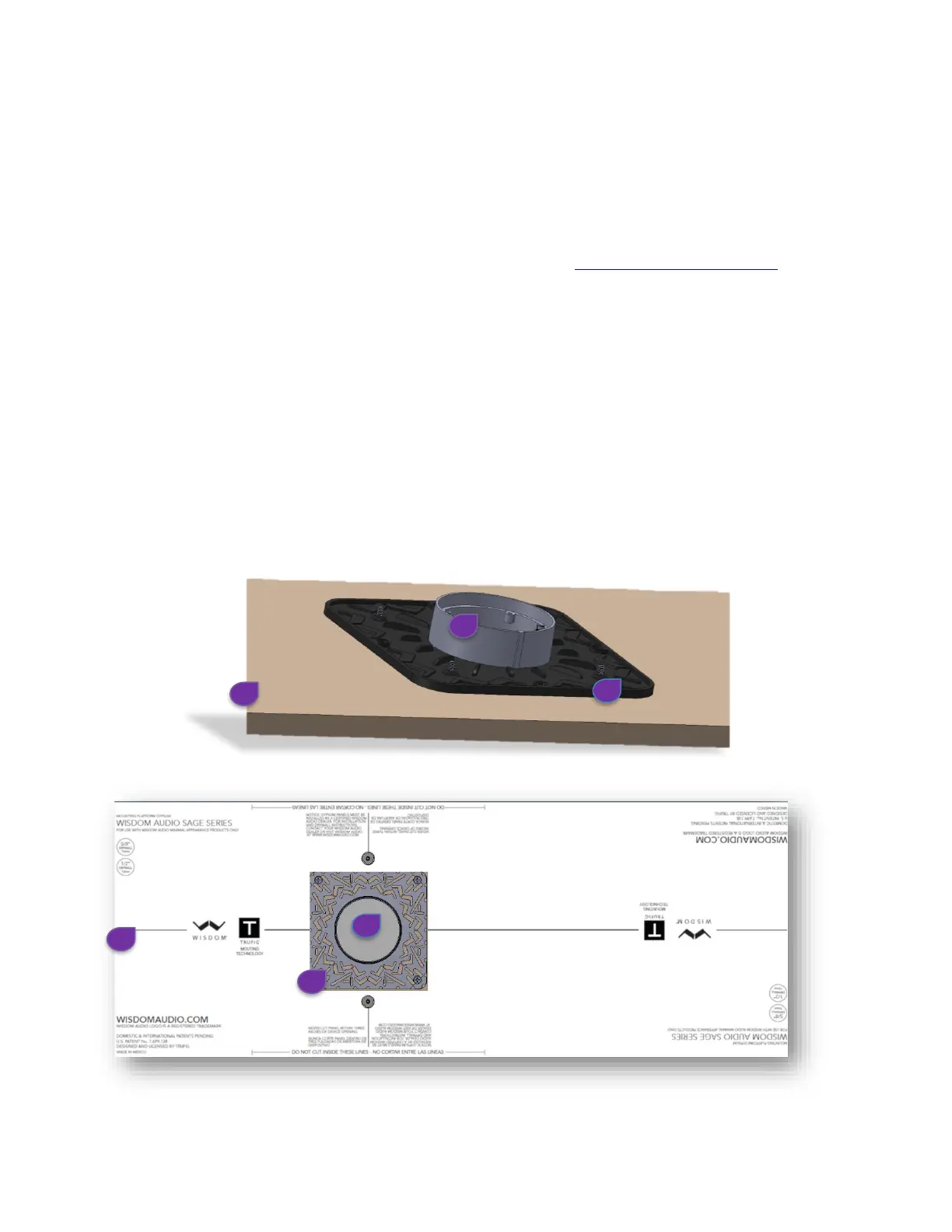

Mounting Platform Components:
1. Mounting Plate, Sanding Guide and Mud Ring (rear)
2. ICS3-Backbox and SUB1 Bass-Snorkel Mount
3. Gypsum
4. Mounting Plate, Sanding Guide and Mud Ring (front),
5. Sanding Shield, Paint Shield (magnetic attachment), SUB1 Grill Catch with Magnetic Recoil Fastener (Pat. Pend)
