WisyCom MAT244 - Alarm List

MAT244 User Manual
rev.01
10

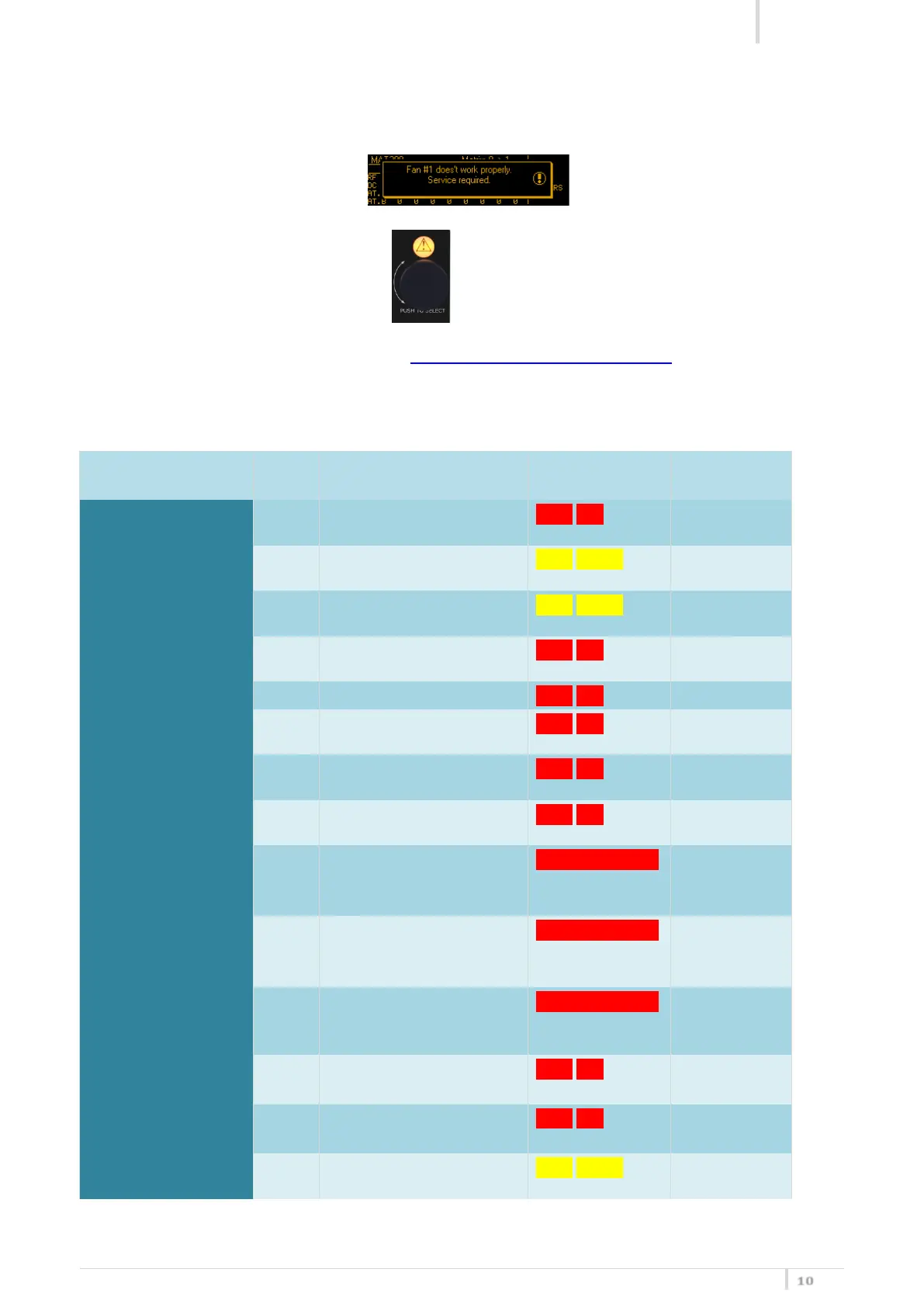

ALARM LIST
When an alarm occurs, the MAT244 advises you with one or more of the following acts:
A. Show a message on the display
B. Turn on the yellow or red alarm led
C. Insert the alarm on the alarm list in the MAIN>Options>Info>Alarms menu
Shown below the complete alarms list:
Message on display
(A)
Type
Alarm List (C)
Led (B)
Aux Led
Invalid Calibration
Memory
Gen
Invalid calibration memory
Fixed Red
---
Calibration data copy
#1 invalid
Gen
Cal. Data copy 1 invalid
Fixed Yellow
---
Calibration data copy
#2 invalid
Gen
Cal. Data copy 2 invalid
Fixed Yellow
---
Calibration data
copies differ
Gen
Calibration data copies
differ
Fixed Red
---
System boot failed
Gen
---
Fixed Red
---
Internal high
temperature
Gen
High temperature
Fixed Red
TEMP Fast
Blinking
Communication error
on I2C bus #0
Gen
I2C bus #0
Fixed Red
---
Communication error
on I2C bus #1
Gen
I2C bus #1
Fixed Red
---
Temperature main
board sensor doesn't
communicate
Gen
Temp. main board sensor
comm.
Slow Blinking Red
---
Temperature RxA
board sensor doesn't
communicate
Gen
Temp. RxA board sensor
comm.
Slow Blinking Red
---
Temperature RxB
board sensor doesn't
communicate
Gen
Temp. RxB board sensor
comm.
Slow Blinking Red
---
Eth rx busy
Gen
Eth rx busy
Fixed Red
---
Error updating
calibration copy crc
Gen
Cal copy crc update error
Fixed Red
---
Fan #1 does't work
properly
Gen
Fan #1
Fixed Yellow
FAN1 Fast
blinking
