WiT WTGAHRS2 - PC Usage Instructions; Connection Method

WTGAHRS2| manual v0707 | http://wiki.wit-motion.com/english
- 7 -
2 Use Instructions with PC
2.1 Connection Method
PC software is only compatible with Windows system.
Link to WTGAHRS2’s demo video
2.1.1 Serial Connection

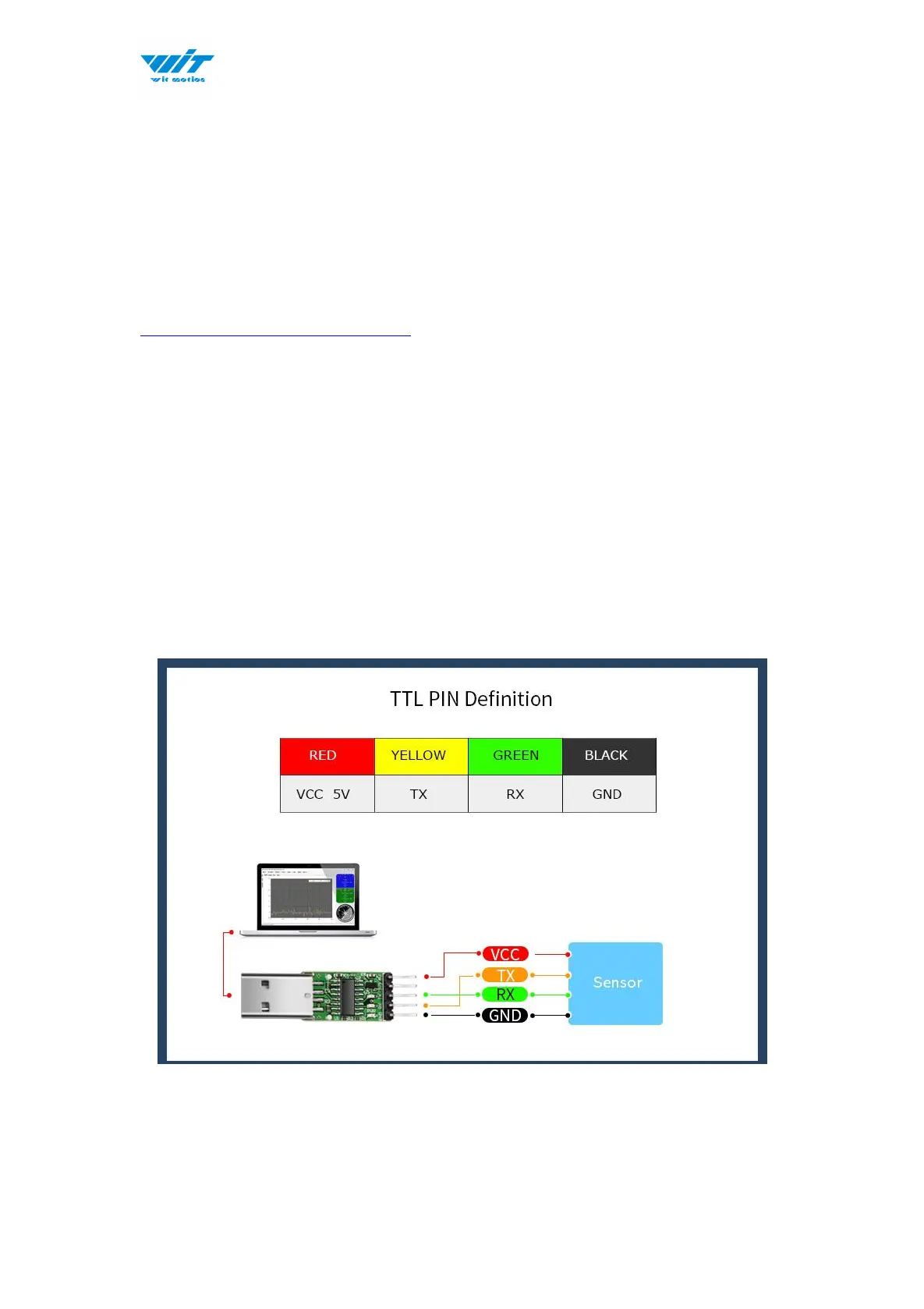

Step 1. Connect the sensor with a serial converter
PIN Connection:
VCC - 5V
TX - RX
RX - TX
GND - GND
(When connecting with computer, VCC-5V is recommended.)
