Wizard 8000 RC - Physical Assembly and Connections; Gantry Cover and Shipping Blocks Removal

9
Wizard CMC Model 8000 RC Hardware and Software Getting Started Manual
CMC 8000RC/Frameshop 20-71034-1 GettingStartedManual8000RCFrameShop
http://info.wizardint.com/KB/default.aspx#pageid=getting_started_manual_8000_rc 04/05/19

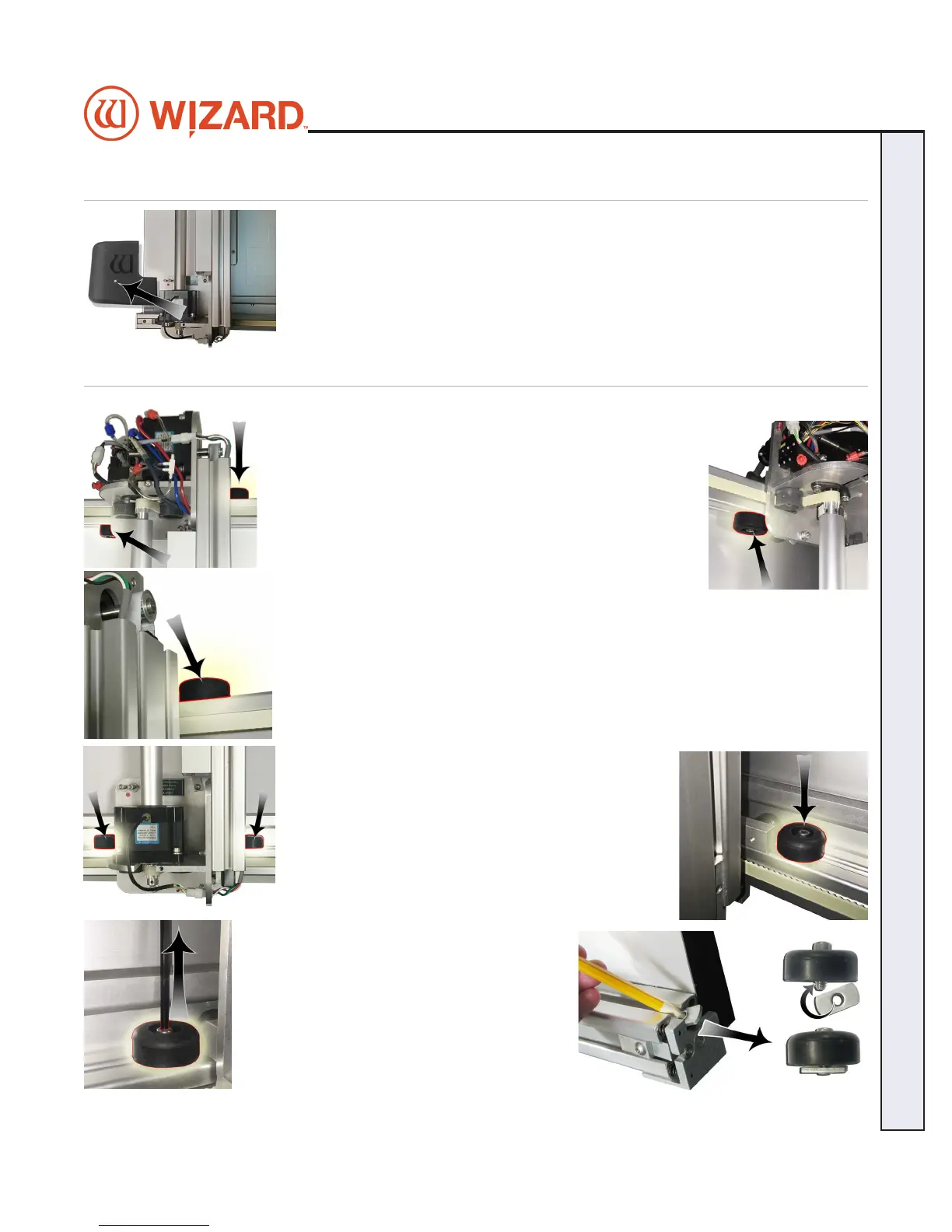

Remove Gantry Cover
1. Remove the screw holding the bottom gantry cover in place, and set the cover
and screw aside aside.
Removing the Shipping Blocks
1. Locate the four shipping blocks holding the gantry in place.
There are two on the upper gantry. One is to the left of the
gantry on the underside of the top rail,
and one is to the right of the gantry on the top of the rail.
There are two shipping blocks on the lower gantry on
either side of the gantry on top of the the bottom rail.
2. Remove the shipping blocks by loosening
the 3/16” Allen screw from the T-Nut. Slide
the T-Nuts to the right end of the rail; a pencil
tip helps. Reattach the T-Nuts to the shipping
blocks and place them in the shipping box for
storage.
