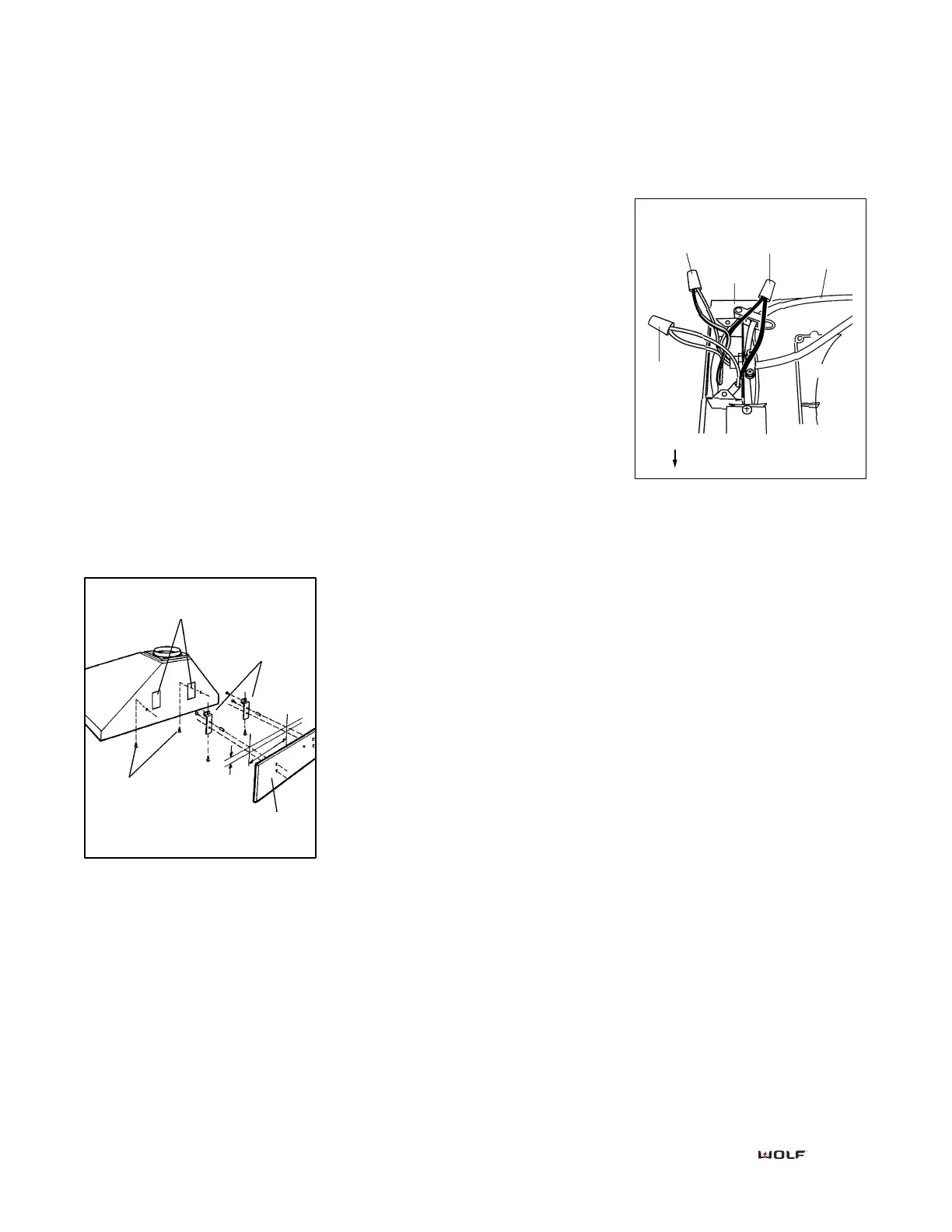

INSTALL THE HOOD
• Hang the hood from the brackets
through the rectangular cut-outs on
the back of the hood. Cut-outs are
larger than the brackets to allow for
horizontal adjustment, keeping in
mind that the bottom of the hood
should be 24 to 30 inches above the
cooking surface.
• Use height adjustment screws to
adjust the hood vertically.
• Use depth adjustment screws to
adjust the hoods horizontal position.
• Secure the hood with additional
mounting screws. Use drywall
anchors, provided with your hood, if
wall studs or framing are not avail-
able in the desired location.
C HIMNEY W ALL H OODS I NSTALLATION
Hood installation
INSTALL WIRING
IMPORTANT NOTE: This ventilation
hood must be properly grounded.
This unit should be installed by a
qualified electrician in accordance
with all applicable national and local
electrical codes.
Internal and External Blowers:
Refer to Figure 1
1) Remove cover from rear wiring
box. Remove the wiring box knock-
out that faces the hood's discharge
collar.
2) Feed 6 inches of 120 VAC power
cable through the knockout opening.
Secure the cable to the wiring box
with an appropriate connector.
3) Make electrical connections.
Connect black to black, white to
white, and green/yellow to green or
bare wire.
4) Re-install wiring box cover and
screws. Make sure that all wires are
secure and that no wires are pinched
between cover and box.
