8
C HIMNEY I SLAND H OOD I NSTALLATION
MOUNT HOOD TO
SUPPORT FRAME
• Mount the hood to the support
frame by aligning the (4) weld screws
on the hood to the (4) holes on the
support frame.
• Use (4) nuts to secure the hood to
the support.
• Nest bottom of the decorative flue
into relief in the hood shell.
• Make electrical connections (refer
to Install Wiring).

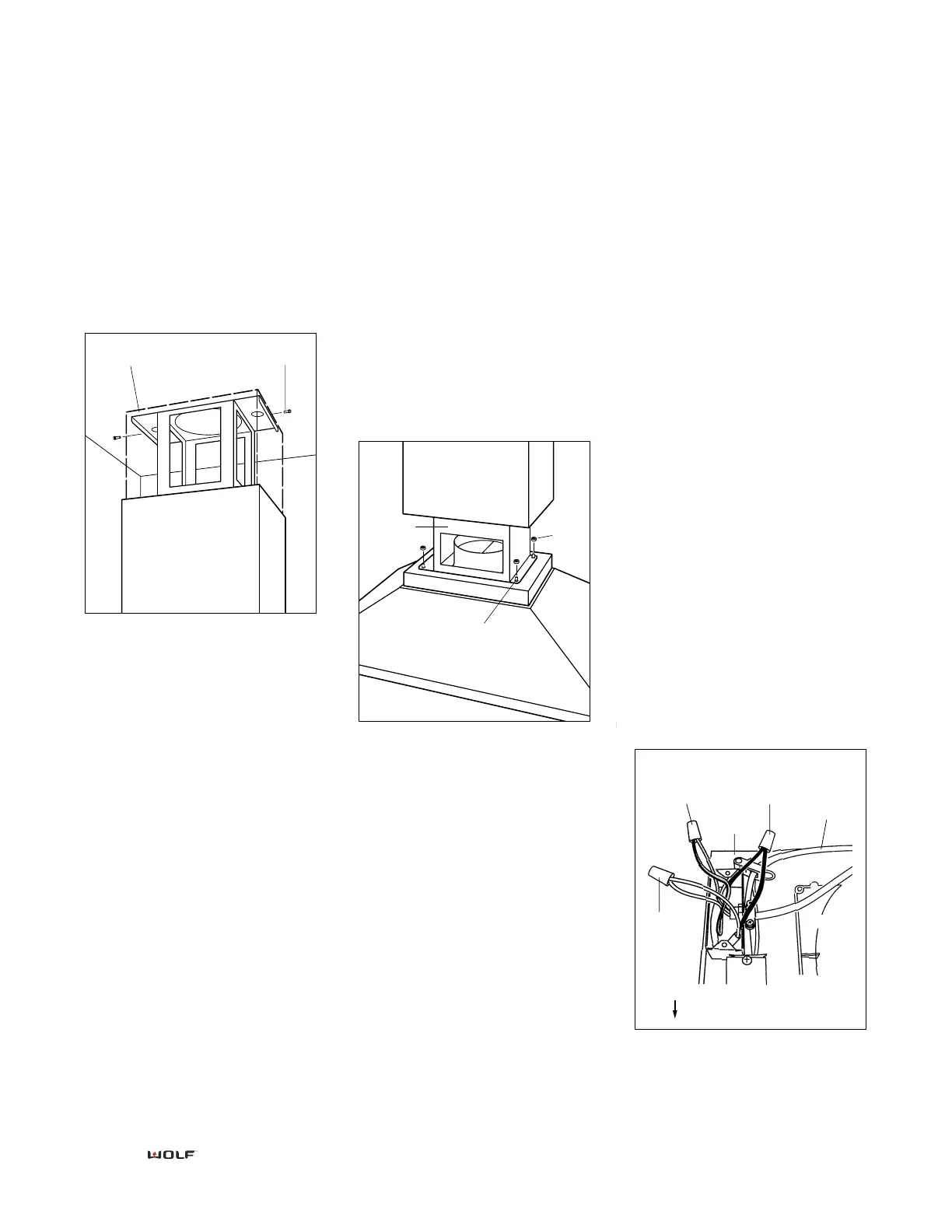

Mount island hood to support frame
Figure 1
INSTALL WIRING
IMPORTANT NOTE: This ventilation
hood must be properly grounded.
This unit should be installed by a
qualified electrician in accordance
with all applicable national and local
electrical codes.
Internal and External Blowers:
Refer to Figure 1
1) Remove cover from rear wiring
box. Remove the wiring box knock-
out that faces the hood's discharge
collar.
2) Feed 6 inches of 120 VAC power
cable through the knockout opening.
Secure the cable to the wiring box
with an appropriate connector.
3) Make electrical connections.
Connect black to black, white to
white, and green/yellow to green or
bare wire.
4) Re-install wiring box cover and
screws. Make sure that all wires are
secure and that no wires are pinched
between cover and box.
CONNECT DECORATIVE
FLUE
• Secure the upper decorative flue
section to the upper support frame.
• Temporarily hold the lower decora-
tive flue section over the upper deco-
rative flue section.
Connect upper decorative flue
To Next Page
