CONNECT DUCTWORK
• Use an 8-inch round metal duct to
connect the duct collar on the hood
to the ductwork above.
• Use duct tape to make all joints
secure and air tight.
• Slide the lower decorative flue
section downward until it fits proper-
ly around the hood.
Additional Wiring
(for External Blowers only):

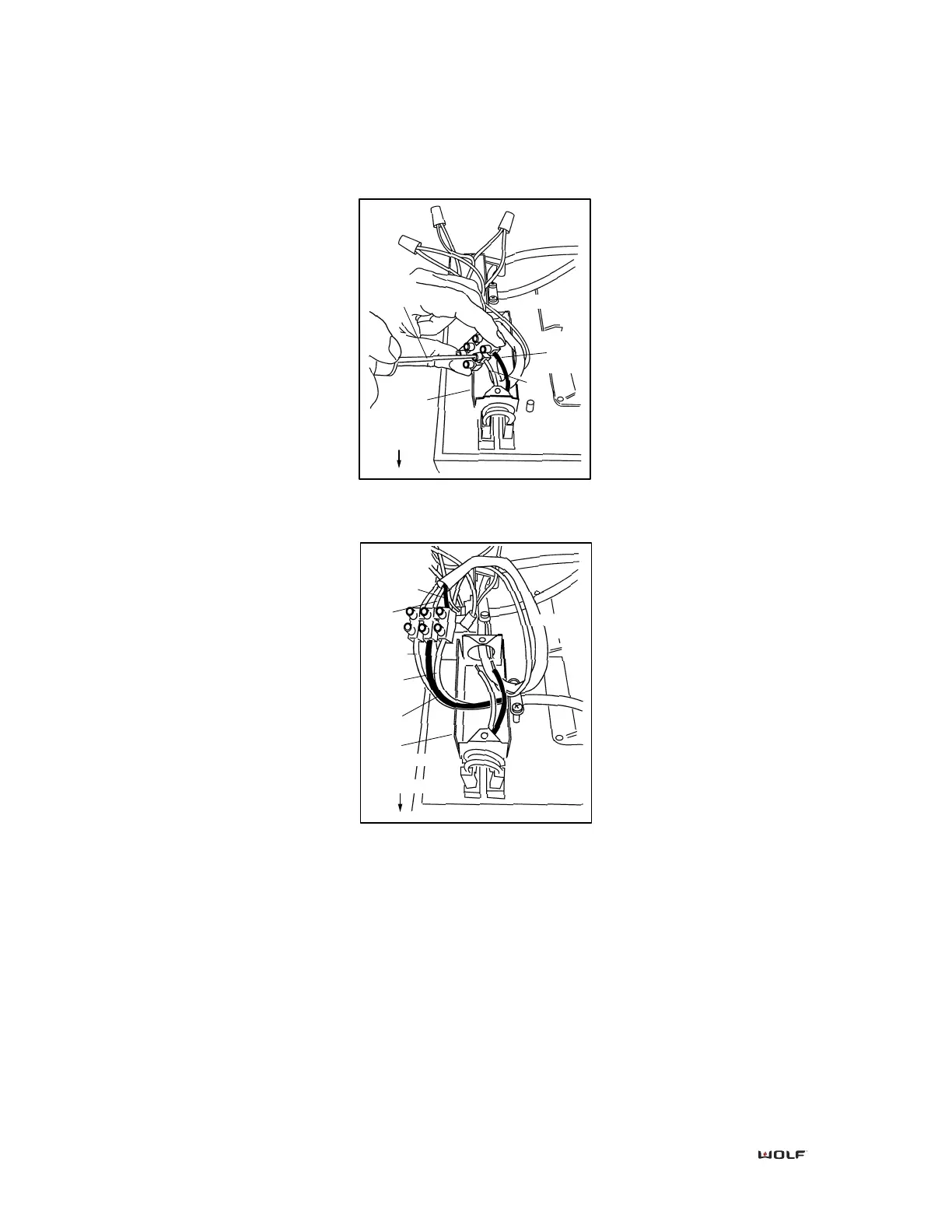

Refer to Figure 2
5) Remove cover from front wiring
box. Remove the wiring box knock-
out that faces the hood's discharge
collar.
6) Disconnect red and black or white
wires using a flat-blade screwdriver.
Refer to Figure 3
7) Feed 6 inches of the external
blower wiring through the knockout
opening. Secure the cable to the
wiring box with an appropriate con-
nector.
8) Attach external blower wiring
where wires were removed in step 6.
IMPORTANT: Note location of wire
colors.
9) Re-install wiring box cover and
screws. Make sure that all wires are
secure and that no wires are pinched
between cover and box.
Figure 2
To Next Page
