Installationinstructions
Sealant
Immediatelybeforeassemblingtheverticalhollowsectionswiththeoorandceiling
panels, seal the hollow sections with the sealant supplied. Otherwise the water tightness
of the appliance cannot be guaranteed.

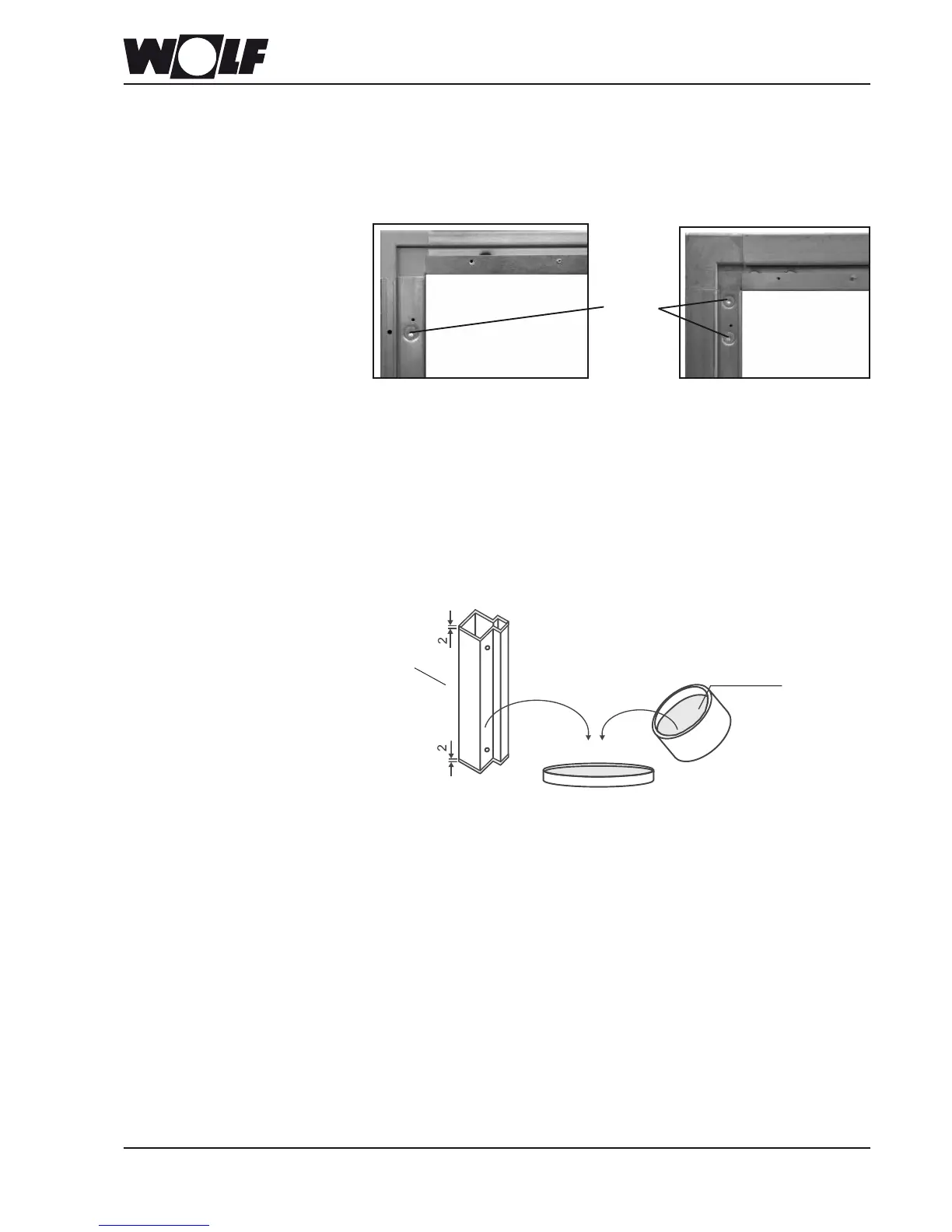

For this it is recommended that some of the sealant is poured into a at vessel of
adequatesize,andthentodipbothendsoftheverticalhollowsectionapprox.2mm
deep into the sealant.
The appliances are assembled in reverse order.
Appliancesthatcan
bedismantled
The equipment is shipped to site preassembled. It can be disassembled before being
movedintopositionandreassembledatthenallocation.
Disassembly entails removing the casing and carefully removing internal components
such as heating or cooling coil (take care not to damage the components). Remove the
screws from the corners of the frame to permit removal of the frame.
Undo
screws
AHU TE 21 - 380 AHU TE 450 - 1000
Hollow
prole
